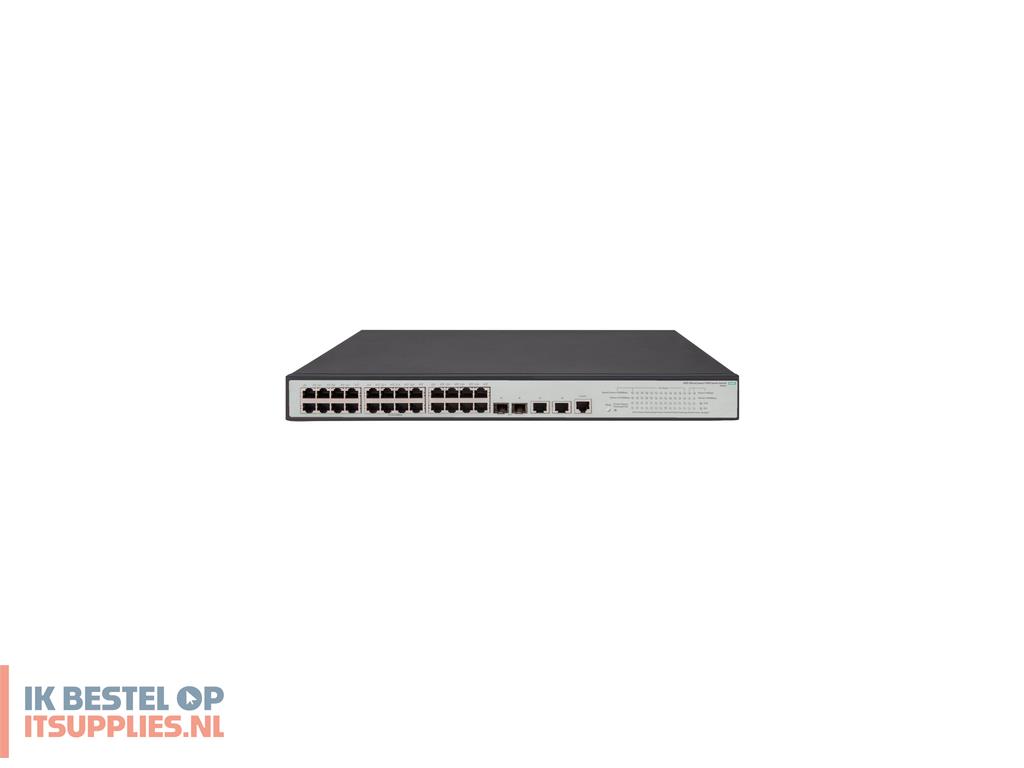

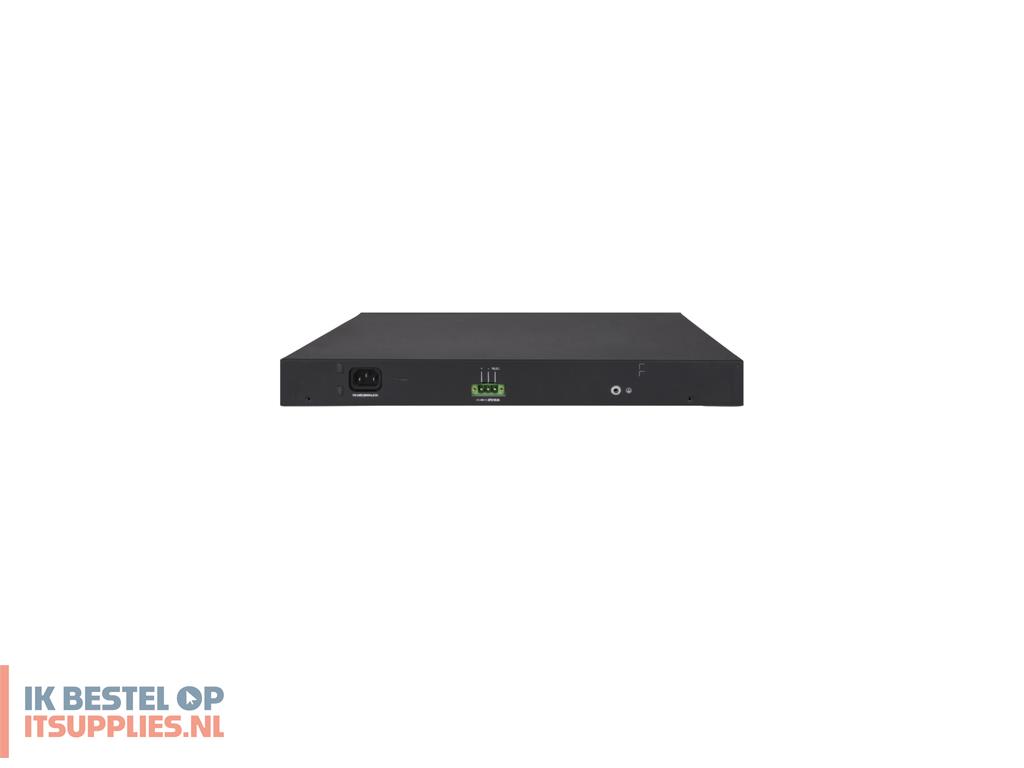

HP 1950 Switches are smart web-managed Gigabit switches with 10G uplinks, for small business customers needing advanced high-performance connections. The series has two standard models and two PoE+ models, 24 and 48 Gigabit ports, each with two 10GBASE-T ports and two 10G SFP+ high-bandwidth ports.
The switches deliver true-stacking, allowing up to four devices to be logically administered as a single entity. They support Layer 3 static routing on IPv4 and IPv6. Other advanced features include ACLs, 802.1X, STP, RSTP, and MSTP. Limited lifetime warranty covers unit, fans and power supplies.
Beheerfuncties
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
24
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal moduleslots SPF+
2
Netwerk
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Spanning tree protocol
Ja
Data-uitwisseling
MAC-adrestabel
16384 entries
Switchingcapaciteit
128 Gbit/s
Latentie (10-100 Mbps)
5 µs
Latentie (10 Gbps)
1,5 µs
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
1,5 MB
Beveiliging
DHCP-functies
DHCP client
Access Control List (ACL)
Ja
Design
Kleur van het product
Grijs
Prestatie
Virtual stacking (units)
4
Energie
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
425 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Totaal Power over Ethernet (PoE)-budget
370 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
