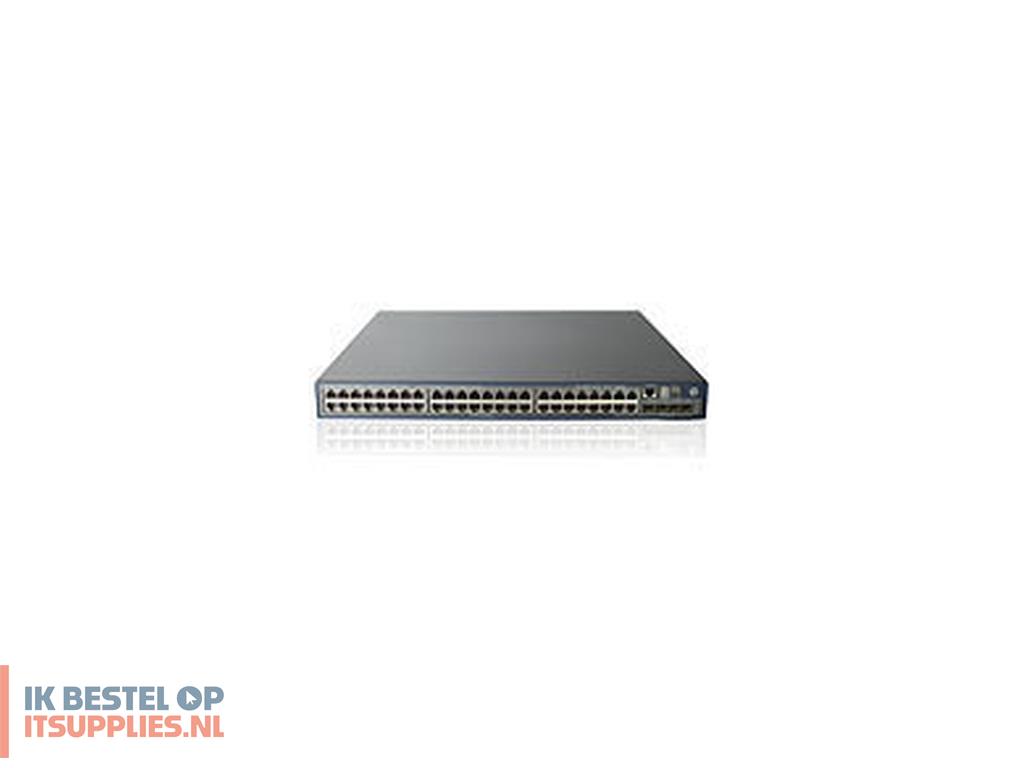

These Gigabit Ethernet switches deliver outstanding security, reliability, and multiservice support capabilities for robust switching at the edge or aggregation layer of large enterprise and campus networks, or in the core layer of SMB networks. The HP 5500 EI Switch Series is comprised of Layer 2/3 Gigabit Ethernet switches that can accommodate the most demanding applications and provide resilient and secure connectivity as well as the latest traffic prioritization technologies to enhance applications on convergent networks. With complete IPv4/IPv6 dual-stack support, the series provides a migration path from IPv4 to IPv6 and has hardware support for IPv6. Designed for increased flexibility, these switches are available with 24 or 48 Gigabit Ethernet ports. Power over Ethernet (PoE) and non-PoE models are available with optional GbE and 10GbE expansion capability. The all-fiber model with dual power supplies is ideal for applications that require the highest availability.
Software-defined networking
• OpenFlow: supports OpenFlow 1.0 and 1.3 specifications to enable SDN by allowing separation of the data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
• Storm restraint: allows limitation of broadcast, multicast, and unknown unicast traffic rate to cut down on unwanted broadcast traffic on the network
Management
• Friendly port names: allows assignment of descriptive names to ports
Connectivity
• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
48
Aantal Gigabit Ethernet (koper)-poorten
48
Netwerk
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Data-uitwisseling
MAC-adrestabel
12000 entries
Switchingcapaciteit
192 Gbit/s
Ondersteunde data-overdrachtsnelheden
10/100/1000 Mbps
Max. overdrachtssnelheid
1000 Gbit/s
Packet buffergeheugen
3 MB
Design
Kleur van het product
Grijs
Veiligheid
UL 60950-1, EN 60825-1, EN 60825-2, IEC 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1/A11, FDA 21 CFR J; ROHS
Energie
Ingangsspanning
100 - 240 V
Stroomverbruik (typisch)
910 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Overige specificaties
Afmetingen (B x D x H)
420 x 440 x 43,6 mm
Connectiviteitstechnologie
Bedraad
Netwerkfuncties
Gigabit Ethernet
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Luchtvochtigheid bij opslag
10 - 90 procent
Warmtedissipatie
921 BTU/h
Certificaten
Certificering
FCC part 15 Class A,VCCI Class A, EN 55022 Class A, CISPR 22 Class A, ICES-003 Class A, ANSI C63.4 2003, ETSI EN 300 386 V1.3.3, AS/NZS CISPR22 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, EN 61000-3-2:2006, EN 61000-3-3:1995 +A1:2001+A2:2005, EMC Directive 2004/108/EC, FCC (CFR 47, Part 15) Class A
