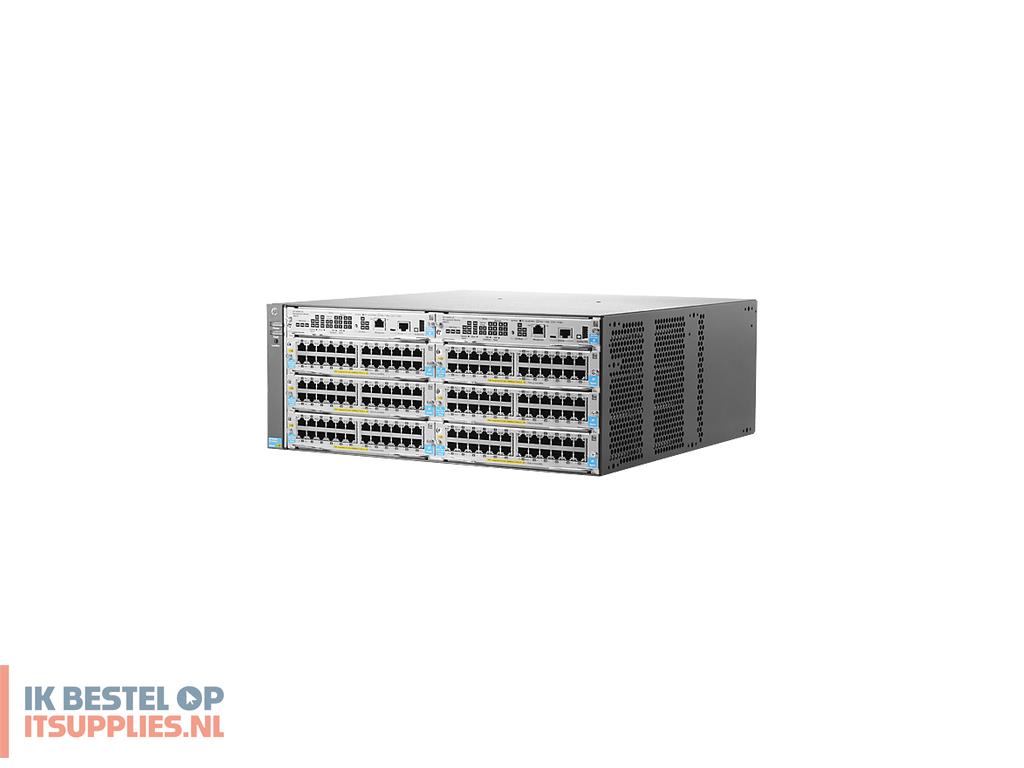

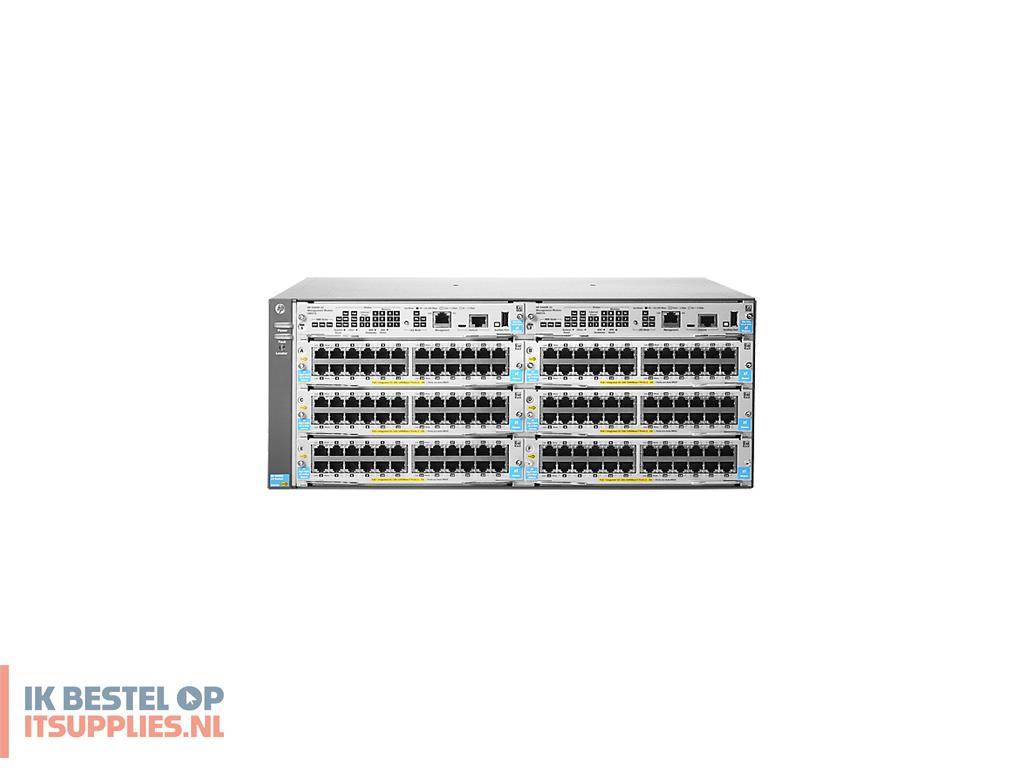

The HP 5400R zl2 Switch Series is the next-generation modular switch designed for enterprise edge and SMB and branch office core deployments. With enterprise-class resiliency and unprecedented flexibility, scalability and ease of use, the 5400R supports demanding network features such as hitless failover, power supply redundancy, QoS and security with full L3 features.
Robust virtualization with HP AllianceOne solutions and flexible connectivity including 10 Gigabit Ethernet and full PoE+, the 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.
Beheerfuncties
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Poorten & interfaces
Compatibele geheugenkaarten
SD
Netwerk
Netwerkstandaard
IEEE 802.3, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u
Data-uitwisseling
MAC-adrestabel
64000 entries
Switchingcapaciteit
960 Gbit/s
Latentie (10 Gbps)
1,8 µs
Jumbo Frames ondersteuning
Ja
Beveiliging
DHCP-functies
DHCP server
Access Control List (ACL)
Ja
Design
Kleur van het product
Grijs
Prestatie
Processormodel
QorIQ P2020
Frequentie van processor
1200 MHz
Energie
AC-ingangsspanning
110 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 95 procent
