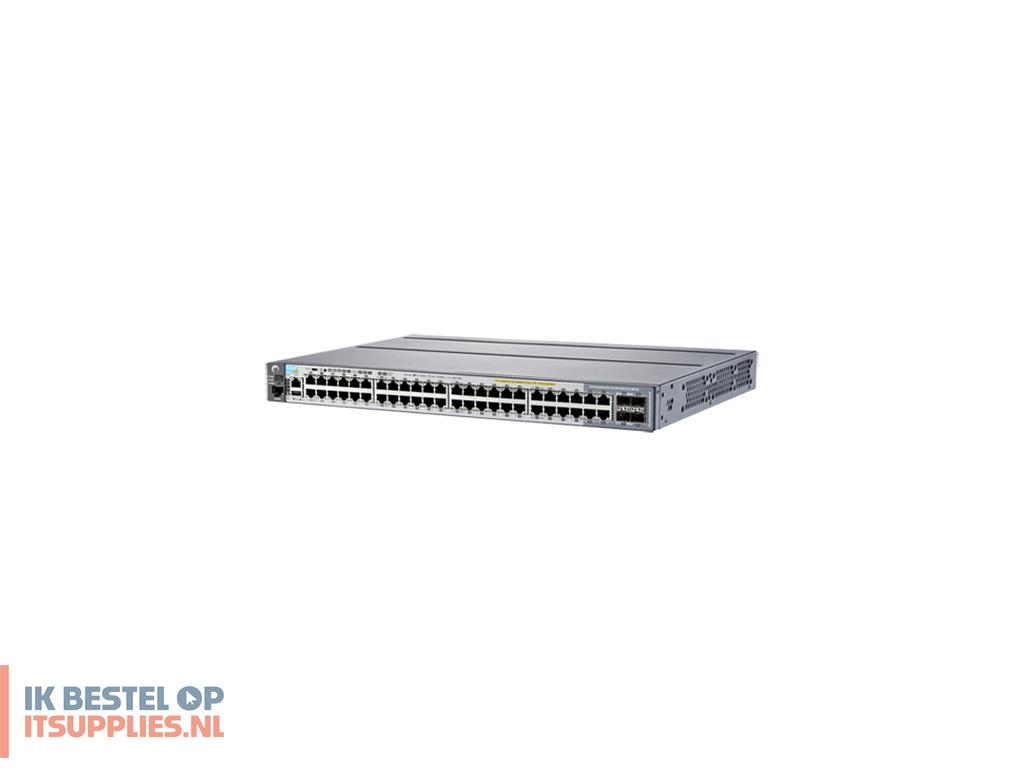

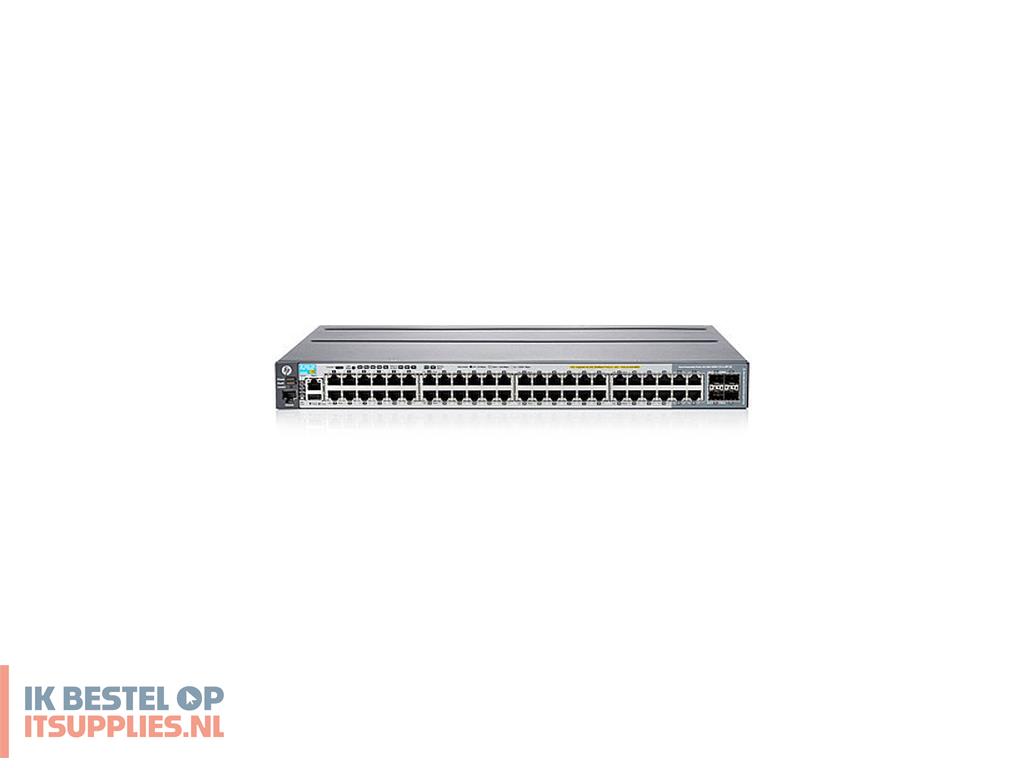

The HP 2920 Switch Series consists of five switches: the HP 2920-24G and 2920-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP 2920-48G and 2920-48G-PoE+ and 2920-48G 740W PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or SFP connectivity. In addition, the 2920 switch series supports up to four optional 10 Gigabit Ethernet (SFP+ and/or 10GBASE-T) ports, as well as a two-port stacking module. These options provide you with flexible and easy-to-deploy uplinks and stacking. Together with static and RIP routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the HP 2920 Switch Series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at the enterprise edge, in remote branch offices, and in converged networks.
Quality of Service (QoS)
• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues
Connectivity
• Flexible 10 Gbps Ethernet connectivity: up to four optional 10-Gigabit ports (SFP+ and/or 10GBASE-T)
Performance
• Energy-efficient design: High-efficiency power supplies: 80 PLUS Silver Certified power supply increases power savings. Energy-efficient Ethernet (EEE) support: reduces power consumption in accordance with IEEE 802.3az.
Software-defined networking
• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Convergence
• IP multicast snooping and data-driven IGMP: automatically prevent flooding of IP multicast traffic
Resiliency and high availability
• IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w
Management
• SNMPv1, v2, and v3: provides complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption
Beheerfuncties
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
48
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Netwerk
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Spanning tree protocol
Ja
Optische vezel
Type schakelende optische module
40 Gigabit Ethernet
Data-uitwisseling
MAC-adrestabel
16000 entries
Switchingcapaciteit
176 Gbit/s
Latentie (10-100 Mbps)
9 µs
Latentie (10 Gbps)
3,2 µs
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
11,25 MB
Beveiliging
DHCP-functies
DHCP server
Access Control List (ACL)
Ja
Multicast-functies
Multicast-ondersteuning
Ja
Design
Kleur van het product
Grijs
Prestatie
Virtual stacking (units)
4
Frequentie van processor
625 MHz
Energie
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
487 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Totaal Power over Ethernet (PoE)-budget
370 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 95 procent
Warmtedissipatie
399 BTU/h
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
