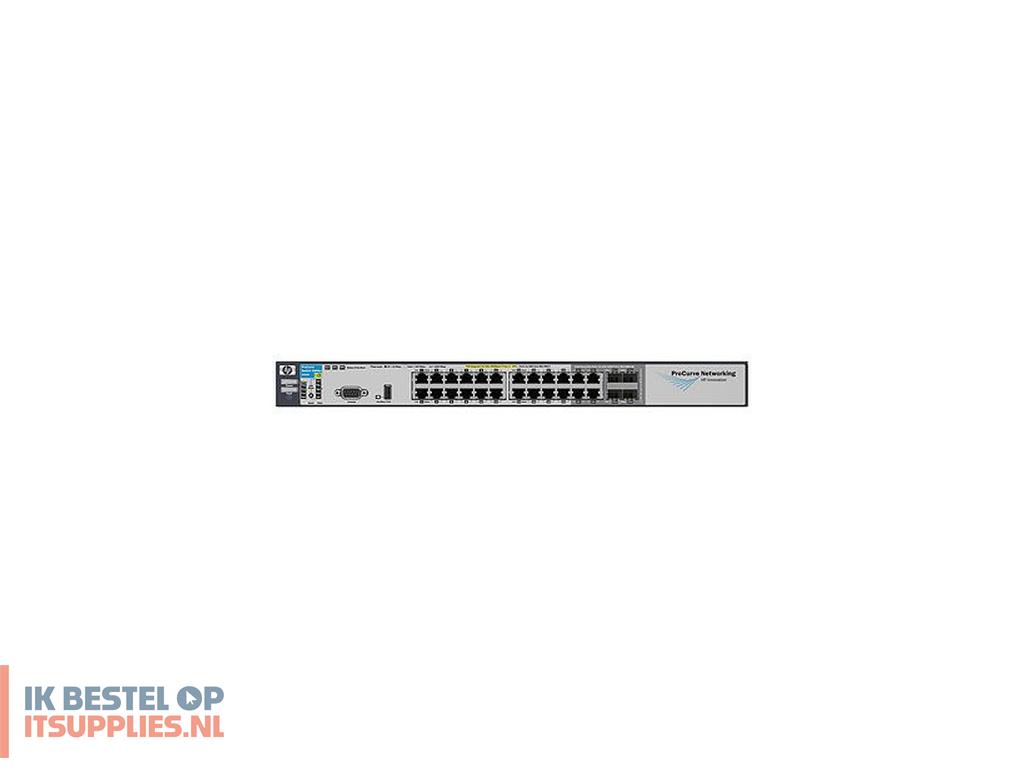

HPE ProCurve 3500yl-24G-PWR. Switch type: Managed. Aantal basis-switching RJ-45 Ethernet-poorten: 24. Full duplex. MAC-adrestabel: 64000 entries. Netwerkstandaard: IEEE 802.3ab, IEEE 802.3u. Rack-montage, Vormfactor: 1U
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
24
Netwerk
Netwerkstandaard
IEEE 802.3ab, IEEE 802.3u
Data-uitwisseling
MAC-adrestabel
64000 entries
Ondersteunde data-overdrachtsnelheden
10/100/1000 Mbps
Max. overdrachtssnelheid
1 Gbit/s
Packet buffergeheugen
36 MB
Protocollen
Ondersteunde netwerkprotocollen
RFC 783 TFTP; RFC 2925 Ping MIB; RFC 951 BootP; RFC 1542 BootP; RFC 854 Telnet; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 Simple Network Time Protocol; IEEE 802.3x Flow Control; DHCP Relay; RFC 3046 DHCP Relay Agent Information Option 82; RFC 3376 IGMPv1/v2/v3; RFC 2453 RIPv2; RFC 2328 OSPFv2 (Premium Edge License); IGMPv3; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.1s Multiple Spanning Trees; IEEE 802.3ad Link Aggregation Control Protocol; IEEE 802.1AB Link Layer Discovery Protocol; ANSI/TIA-1057 LLDP Media Endpoint Discovery (MED); RFC 2474 DiffServ Precedence; RFC 2597 DiffServ Expedited Forwarding (EF); RFC 2598 DiffServ Assured Forwarding (AF); RFC 1492 TACACS+; RFC 2138 RADIUS; RFC 2866 RADIUS accounting; SSHv2 Secure Shell; Secure Sockets Layer (SSL); IEEE 802.1X Network Login; 802.3af Power over Ethernet; IEEE 802.1Q VLAN tagging; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c/v3; HTML and telnet management; RFC 1493 Bridge MIB; PIM Dense Mode (Premium Edge License); PIM Sparse Mode (Premium Edge License); RFC 1213 MIB II; RFC 2096 IP Forwarding Table MIB; RFC 2737 Entity MIB; RFC 2863 Evolution of Interface; RFC 2665 Ethernet MIB; RFC 3768 VRRP (Premium Edge License); RFC 2787 VRRP MIB; RFC 1058 RIP; RFC 1724 RIPv2 MIB; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); XRMON; UDLD (Uni-directional Link Detection); RFC 2021 RMON probe configuration (RMON v2); RFC 2668 802.3 MAU MIB; RFC 2613 SMON; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 1850 OSPF MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 3101 OSPF NSSA; RFC 1519 CIDR; RFC 3046 DHCP Relay Agent Information Option; RFC 3176 sFlow
Design
Kleur van het product
Zilver
Prestatie
Frequentie van processor
200 MHz
Energie
Ingangsspanning
100-127/200-240 VAC
Stroomverbruik (typisch)
98 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Nee
Overige specificaties
Latentie
1000 Mb Latency: < 3.4 µs (FIFO 64-byte packets); 10 Gbps Latency: < 2.1 µs (FIFO 64-byte packets)
Afmetingen (B x D x H)
392 x 443 x 44 mm
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 55 °C
Duurzaamheid
Duurzaamheidscertificaten
ENERGY STAR
