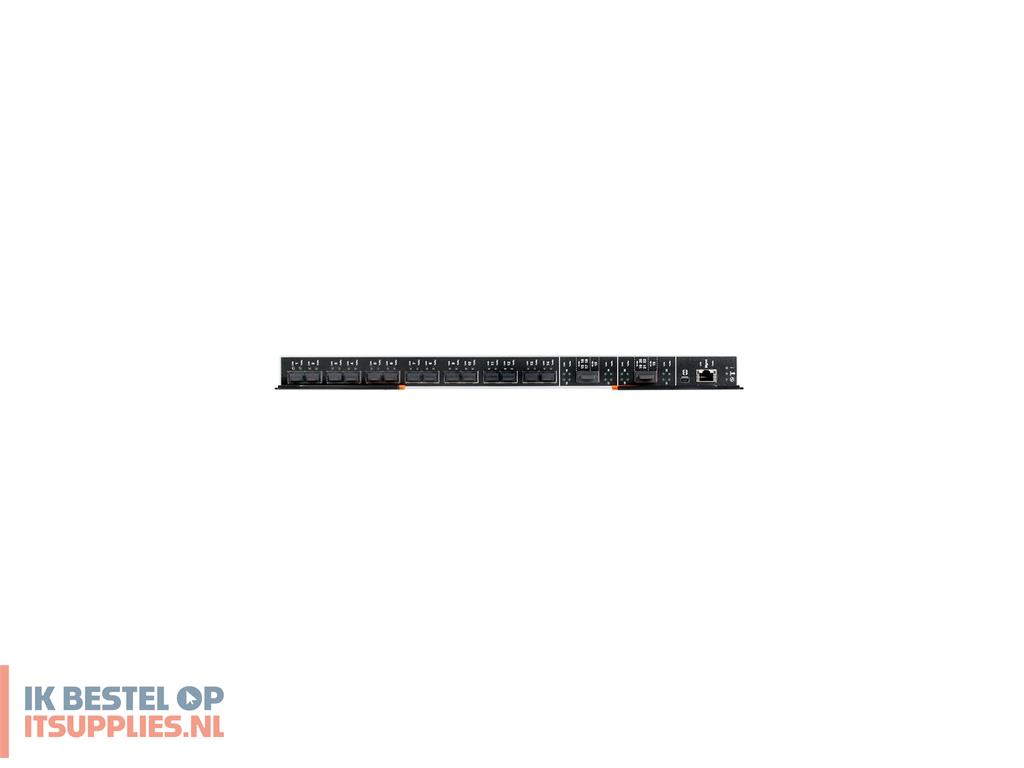

Lenovo 00FM514. Switch type: Managed, Switch-laag: L2/L3. MAC-adrestabel: 128000 entries. Netwerkstandaard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w,...
Beheerfuncties
Quality of Service (QoS)
Ja
Netwerk
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data-uitwisseling
MAC-adrestabel
128000 entries
Aantal statische routes
128
Beveiliging
Access Control List (ACL)
Ja
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
Beheerprotocollen
SNMP V1,V3
Routing protocols
BGP, OSPF, RIP
Design
Kleur van het product
Zwart
Prestatie
Mean time between failures (MTBF)
236805 uur
Verpakking
Breedte verpakking
508 mm
Gewicht verpakking
4,1 kg
Certificaten
Certificering
United States FCC 47 CFR Part 15, Subpart B, ANSI C63.4 (2003), Class A
IEC/EN 60950-1, Second Edition
Canada ICES-003, issue 4, Class A
Japan VCCI, Class A
Australia/New Zealand AS/NZS CISPR 22:2006, Class A
Taiwan BSMI CNS13438, Class A
CE Mark (EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3)
CISPR 22, Class A
China GB 9254-1998
Turkey Communique 2004/9; Communique 2004/22
Saudi Arabia EMC.CVG, 28 October 2002
