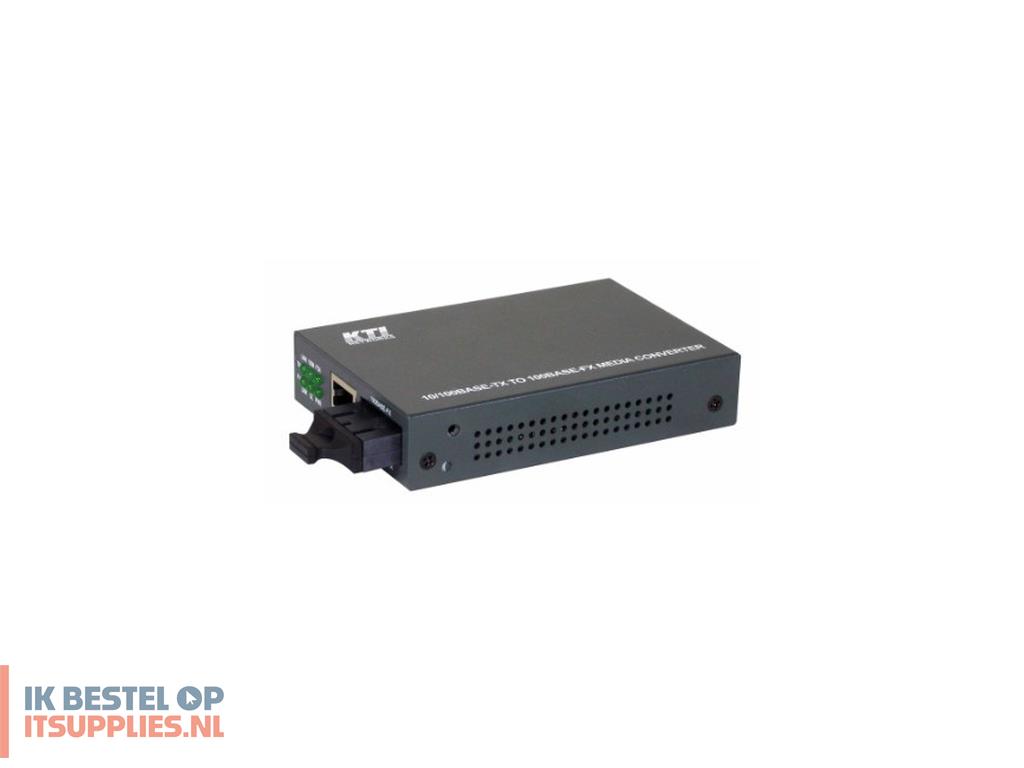

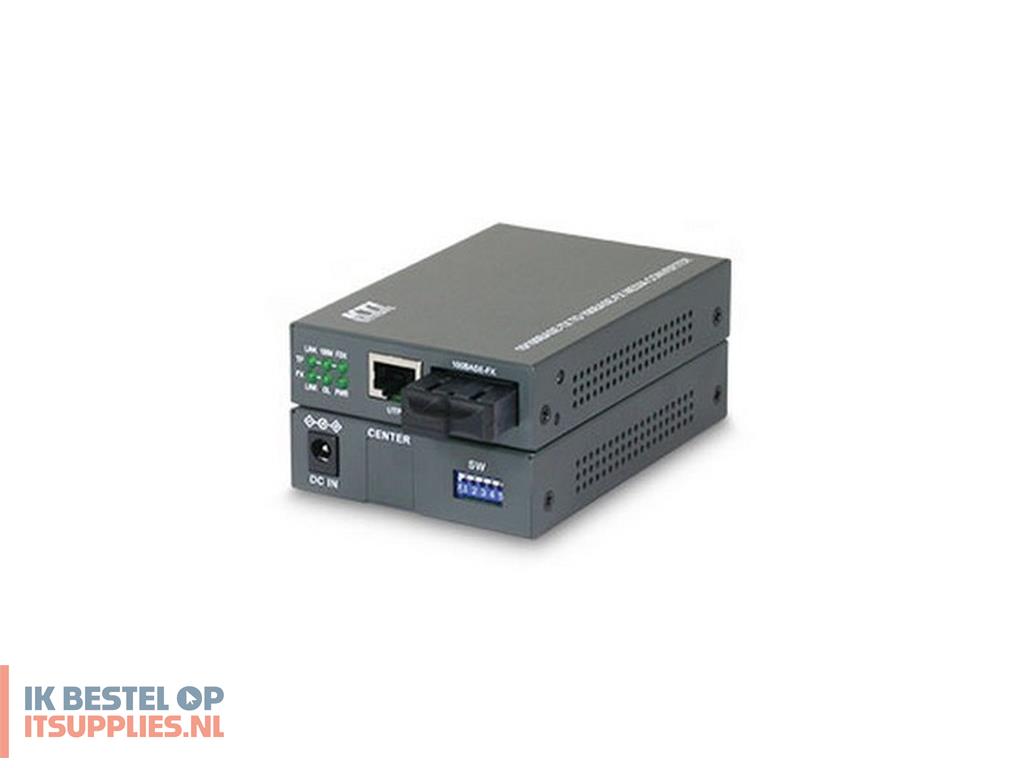

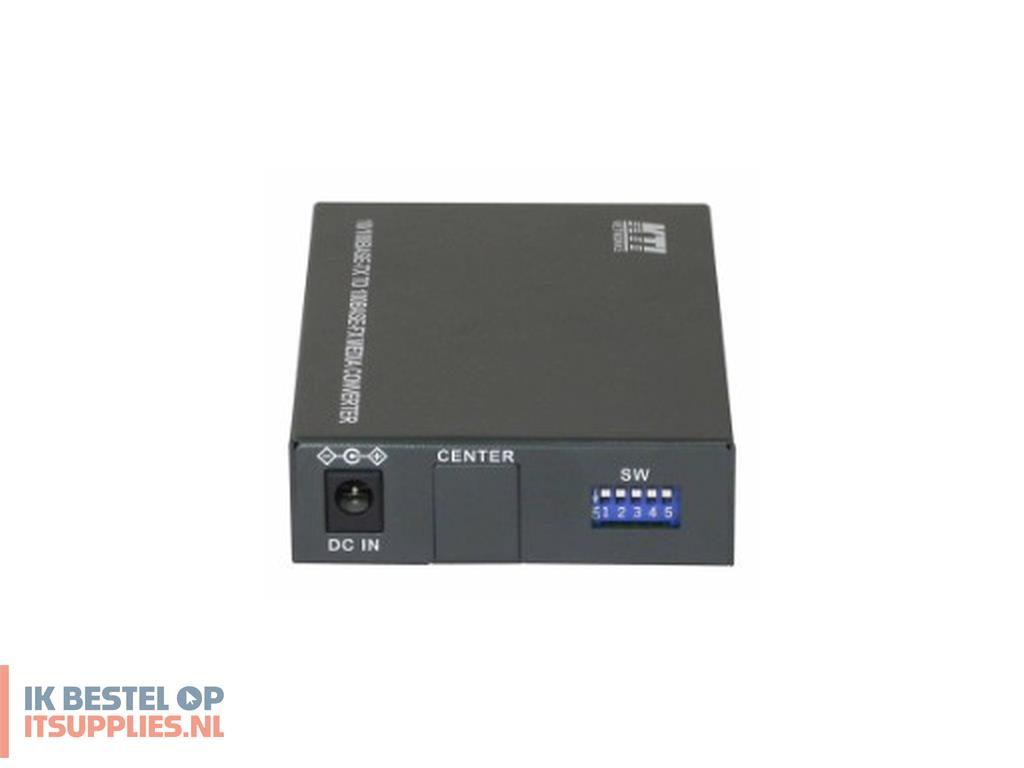

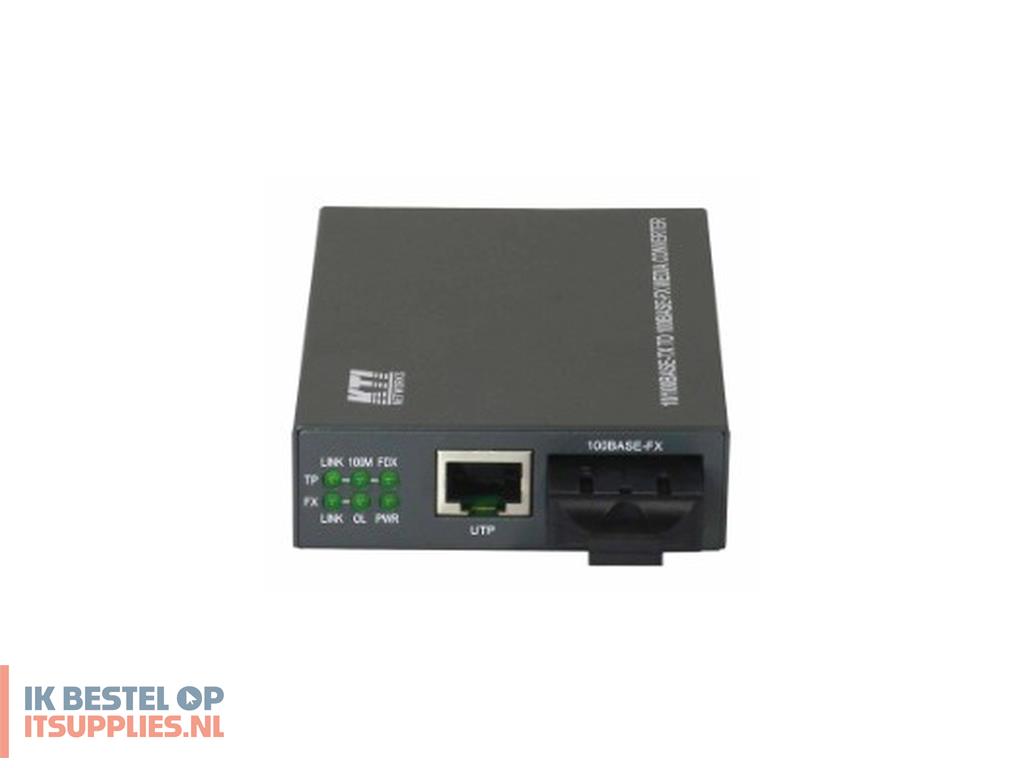

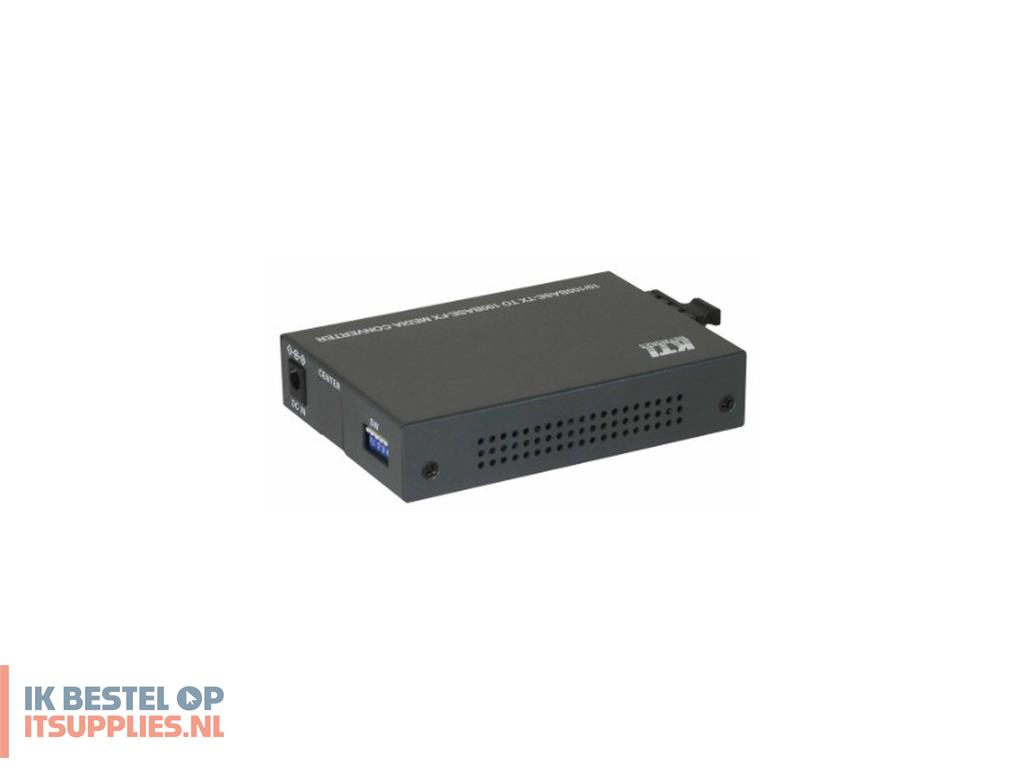

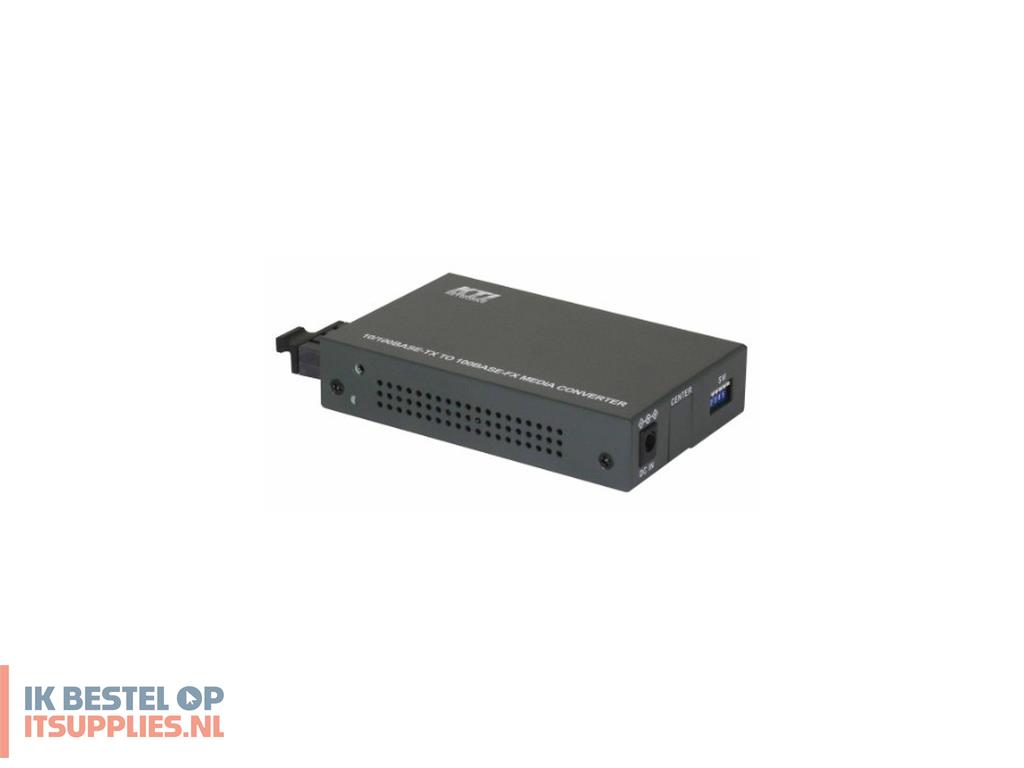

KTI Networks KC-300D netwerk media converter 100 Mbit/s 1310 nm Multimode

The 10/100BASE-TX to 100BASE-FX media converter series provides a media conversion allowing high-speed integration of fiber optic and twistedpair segments. With 10BASE-T and 100BASE-TX support, the converters provide seamless translation setween Ethernet and Fast Ethernet networks. A complete set of LEDs allows for quick status verification.

Technical Specifications
- RoHS compliant
- Connvert speed and media type
- Supports full wire speed conversion
- Supports 10/100M dual speed on TP connections
- Each TP port supports auto-negotiation and auto-MDI/MDI-X detection
- Link fault pass through function
- Transparent to 802.1Q VLAN tagged packets
- Far End Fault function on FX port
- Supports desktop, wall, and center chassis mounting
- Supports center chassis management
- Low power consumption
- Supports wide range of fiber options- ST, SC, MT-RJ, VF-45, single SC
- Multi-mode fiber, Single mode duplex fiber, Single fiber
- Short reach, medium reach, and long reach fiber connections
- Provides user accessible settings for TP port configuration, disabling link fault pass through function
- Provides optional user-inaccessible settings for specific system applications
