General
Device Type

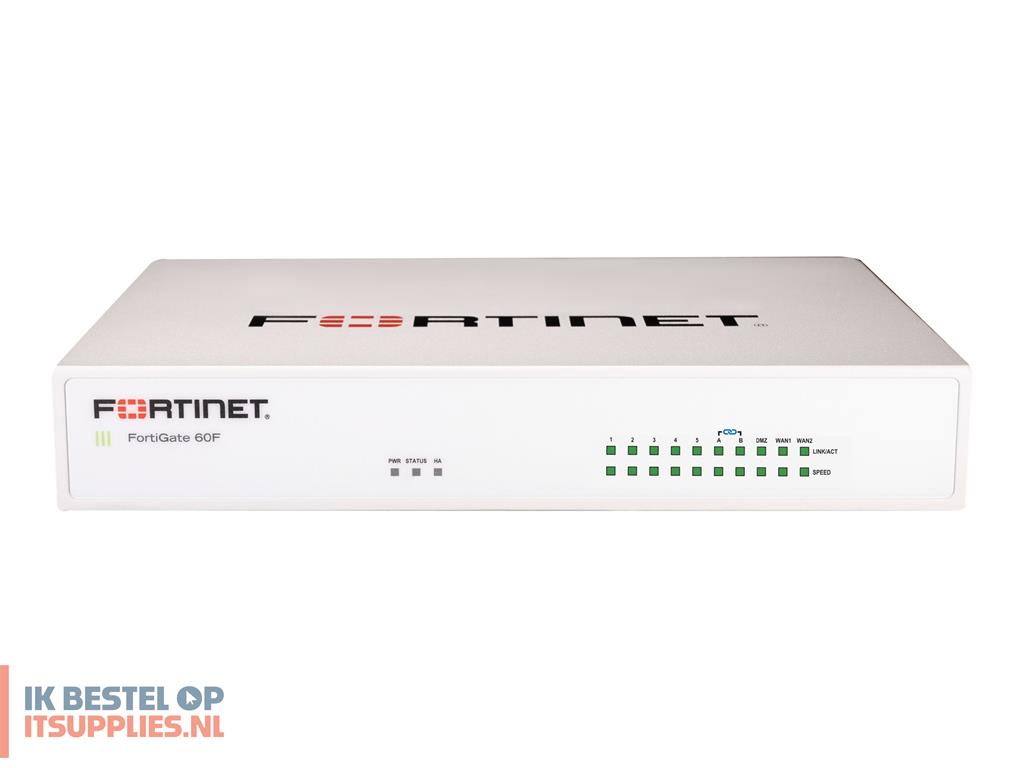

Security appliance
Bundled Services
5 years FortiCare 24X7 Comprehensive Support + 5 years FortiGuard
Processor / Memory / Storage
Networking
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol
IPSec, HTTPs
Remote Management Protocol
HTTPS
Performance
Firewall throughput: 10 Gbps
IPS throughput: 1.4 Gbps
NGFW throughput: 1 Gbps
Threat protection throughput: 700 Mbps
Firewall throughput (1518-byte UDP): 10 Gbps
Firewall throughput (512-byte UDP): 10 Gbps
Firewall throughput (64-byte UDP): 6 Gbps
Firewall latency (64-byte UDP): 4 µs
VPN throughput (512-bit IPSec): 6.5 Gbps
VPN throughput (SSL): 900 Mbps
SSL inspection throughput: 750 Mbps
Application control (AVC) throughput: 1.8 Gbps
CAPWAP throughput: 15 Gbps
Capacity
Concurrent TCP sessions: 700000
New TCP sessions per second: 35000
Firewall policies: 5000
Gateway to gateway IPSec VPN Tunnels: 200
Client to gateway IPSec VPN tunnels: 500
Concurrent SSL VPN users: 200
SSL inspection concurrent sessions: 55000
Virtual domains: 10
Number of FortiSwitches: 16
Number of FortiAP devices: 30
Number of FortiToken devices: 500
Number of registered FortiClients: 200
Features
Fanless, 3G/4G USB Dongle Support, FortiLink Mode, SD-WAN support
Encryption Algorithm
SSL, 256-bit AES, 256-bit SHA
Expansion / Connectivity
Interfaces
2 x 1000Base-T - RJ-45 (WAN)
1 x 1000Base-T - RJ-45 (DMZ)
7 x 1000Base-T - RJ-45
1 x USB 3.0 - Type A
1 x console - RJ-45
Miscellaneous
Compliant Standards
UL, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 Class B, ICSA SSL-VPN
Power
Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
18.7 Watt
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
