General
Device Type

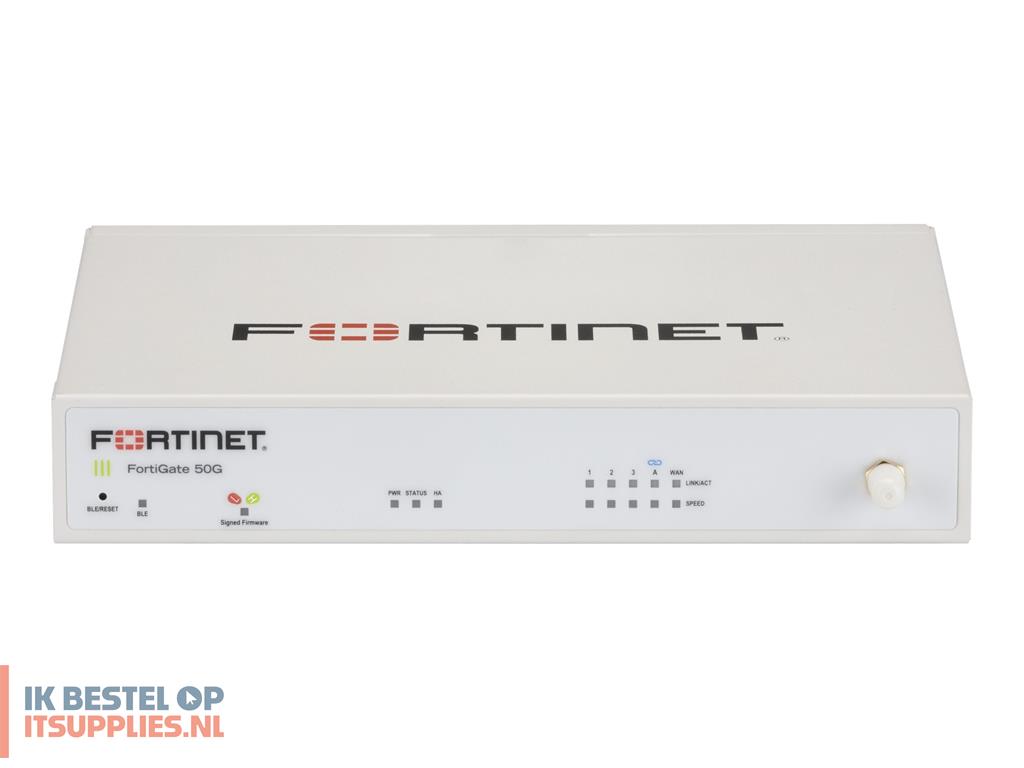

Security appliance
Processor / Memory / Storage
Processors Installed
1 x Fortinet FortiASIC SP5
Networking
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth LE
Network / Transport Protocol
DNS, TCP/IP, UDP, IPv6
Remote Management Protocol
DNS, UDP, IPv6, TCP/IP
Performance
IPS throughput (enterprise traffic mix): 2.25 Gbps
NGFW throughput (enterprise traffic mix): 1.25 Gbps
Threat protection throughput (enterprise traffic mix): 1.1 Gbps
Firewall throughput (1518-byte UDP): 5 Gbps
Firewall throughput (512-byte UDP): 5 Gbps
Firewall throughput (64-byte UDP): 4 Gbps
Firewall latency (64-byte UDP): 2.42 µs
Firewall throughput: 6 Mpps
VPN throughput (512-bit IPSec): 4.5 Gbps
SSL inspection throughput: 1.3 Gbps
Application control throughput (HTTP 64K): 2.8 Gbps
CAPWAP throughput: 3.8 Gbps
Capacity
Concurrent TCP sessions: 720000
New TCP sessions per second: 85000
Firewall policies: 2000
Gateway to gateway IPSec VPN Tunnels: 200
Client to gateway IPSec VPN tunnels: 250
SSL inspection CPS: 699
SSL inspection concurrent sessions: 74000
Maximum virtual domains: 5
Virtual domains: 5
Number of FortiSwitches: 8
Number of FortiAP devices: 16
Number of FortiAP devices (tunnel mode): 8
Maximum number of FortiTokens: 500
Status Indicators
Firmware, power, status, HA, link/activity/speed
Features
NGFW appliance, SD-WAN support, Zero Trust Network Access (ZTNA), AI/ML powered, self-healing network, advanced sandbox detection, Intrusion Prevention System (IPS), SSL inspection, anti-malware protection, DNS filtering, Data Loss Prevention (DLP), Trusted Platform Module (TPM), High Availability, fanless, reset button, firewall protection, URL filtering, DDoS Protection, built-in ASIC, VPN support
Encryption Algorithm
SSL, TLS 1.3, 256-bit AES, 256-bit SHA
Internet of Things (IoT)
Internet of Things (IoT) Compatible
Yes
Communications Technology
Bluetooth Low Energy (LE)
Expansion / Connectivity
Interfaces
1 x USB 3.0 - Type A
1 x console - RJ-45
1 x 1000Base-T - RJ-45 (WAN)
1 x 1000Base-T (FortiLink) - RJ-45
3 x 1000Base-T - RJ-45
Miscellaneous
Compliant Standards
FCC, ISED, UL, cUL, CB, USGv6
Power
Power Device
External power adapter
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
8.3 Watt
Software / System Requirements
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
