General
Device Type

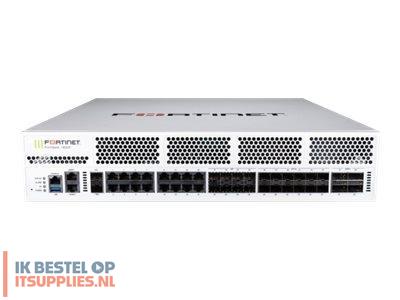

Security appliance
Bundled Services
3 years FortiCare 24X7 Service + 3 years FortiGuard
Processor / Memory / Storage
Hard Drive
SSD 1 TB x 2 - NVMe
Networking
Form Factor
Rack-mountable
Connectivity Technology
Wired
Data Link Protocol
Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 25 Gigabit Ethernet
Network / Transport Protocol
IPSec, SCTP, IPv4, IPv6
Remote Management Protocol
IPv4, IPv6
Performance
IPS throughput: 13 Gbps ¦ NGFW throughput: 11 Gbps ¦ Threat protection throughput: 9.1 Gbps ¦ Firewall throughput (1518-byte UDP): 198 Gbps ¦ Firewall throughput (512-byte UDP): 197 Gbps ¦ Firewall throughput (64-byte UDP): 140 Gbps ¦ Firewall latency (64-byte UDP): 4 µs ¦ Firewall throughput: 210 Mpps ¦ VPN throughput (IPSec): 65 Gbps ¦ VPN throughput (SSL): 11 Gbps ¦ SSL inspection throughput: 17 Gbps ¦ SSL inspection CPS: 9500 ¦ Application control (AVC) throughput: 34 Gbps
Capacity
Concurrent TCP sessions: 12000000 ¦ New TCP sessions per second: 750000 ¦ Firewall policies: 100000 ¦ Gateway to gateway IPSec VPN Tunnels: 20000 ¦ Client to gateway IPSec VPN tunnels: 100000 ¦ Concurrent SSL VPN users: 10000 ¦ SSL inspection concurrent sessions: 1300000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 250 ¦ Number of FortiSwitches: 128 ¦ Number of FortiToken devices: 20000
Features
VPN support, CAPWAP support, Virtual Extensible LAN (VXLAN), DDoS Protection
Expansion / Connectivity
Interfaces
2 x 1000Base-T (management) - RJ-45 ¦ 2 x 10GBase-X - SFP+ ¦ 16 x 1000Base-T - RJ-45 ¦ 8 x 1000Base-X - SFP (mini-GBIC) ¦ 12 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28 ¦ 4 x 40GBase-X - QSFP+ ¦ 1 x USB 3.0 - Type A ¦ 1 x console - RJ-45
Miscellaneous
Included Accessories
2 x 10Gb Ethernet SR SFP+ transceiver
Compliant Standards
UL, VCCI, C-Tick, cUL, FCC Part 15 A, USGv6, SSL
Power
Power Device
Internal power supply - hot-plug
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
543.6 Watt
Software / System Requirements
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
