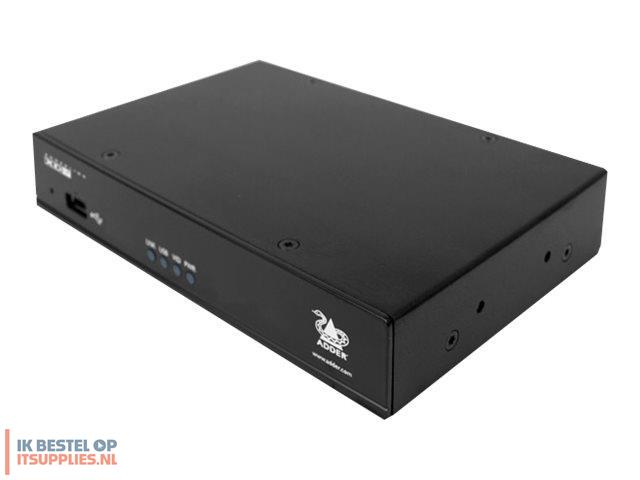

Adder AdderLink XDIP - KVM / audio / USB extender

Productcode: XDIP-POE | EAN/UPC: -

€ 600,89 excl.btw

AdderLink XDIP - KVM / audio / USB extender - USB - up to 100 m

100m extension distance over CATx cable
Feed through ports at both local and remote
Power from POE or external power source
USB2.0 (low and full speed) for keyboard, mouse, tablet and touch screen
Bi-directional analog audio (line in/out) with headphone support
Plug and play

Op voorraad: 21 stuk(s)

Levertijd:

Product:
Adder AdderLink XDIP - KVM / audio / USB extender

€ 727,08 incl. 21% btw € 600,89excl. 21% btw

Winkelwagen Offerte

Omschrijving

AdderLink XDIP - KVM / audio / USB extender - USB - up to 100 m

Product features

High quality, low latency streaming, real time control
The video extension system is compressed; every frame is sent with a minimal latency of 24ms (1½ frames at 60Hz).
Single CATX cable required - no limitation on extension distances
Video, USB2.0 and audio all pass along a single minimum spec of CAT5e cable allowing reuse of existing infrastructure cables in the building. Distance is linked to the IP standard of 100m runs with a 40% overhead for safety. Longer distances are achieved by routing through your IP infrastructure.
Feed through at local and remote nodes
Feed through ports for both video and USB are available.
USB 2.0
Enables connection of any USB human interface device: from mice and keyboards through to touch screens, graphics tablets, jog shuttles, joysticks and 3D explorers. Mass storage devices are NOT supported. Simple contention is used on the ownership of mouse control with a release after 2 seconds of non-movement between local and remote users.
EDID management
The extender has an intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer or alternatively, a fixed EDID can be specified.
Plug and Play
The AdderLink XDIP extender is delivered in a zero config state so you can plug the units in and start working with them straight away. There's no need for drivers or software to be installed. A simple wizard takes you through setup at the start of life of the product.
CD-quality analog audio
The unit delivers CD-quality stereo audio (16-bit sampling at 48kHz) is available to transfer audio between local and remote. Headphones are also supported (up to 32 Ohms impedance).

Specificaties

General

Device Type

KVM / audio / USB extender

Form Factor

External

Networking

Connectivity Technology

Wired

Keyboard / Mouse Interface

USB

Max Resolution

1920 x 1200 @ 60 Hz

Max Transfer Distance

100 m

Features

EDID Management

Compliant Standards

IEEE 802.3af, USB 2.0

Expansion / Connectivity

Interfaces

1 x USB 2.0 - Type B ¦ 1 x HDMI (input) ¦ 1 x HDMI (output) ¦ 1 x audio (input) - mini jack ¦ 1 x audio (output) - mini jack ¦ 3 x USB 2.0 - Type A ¦ 1 x network (PoE) - RJ-45

Miscellaneous

Cables Included

1 x audio cable - 2 m ¦ 1 x USB cable - 2 m ¦ 1 x HDMI cable - 2 m ¦ 1 x HDMI-DVI adapter

Compliant Standards

FCC

Power

Power Over Ethernet (PoE)

PoE

Dimensions & Weight

Width

16.9 cm

Depth

12 cm

Height

3.1 cm

Weight

600 g

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.

Productvideo

Heb je zelf een goede video voor dit product? Youtube video indienen

Beschikbare brochures

Datasheet_143684
