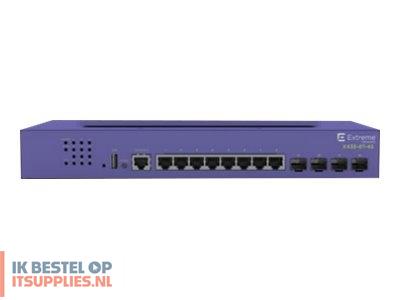

Extreme Networks ExtremeSwitching X435-8P-4S

Switch - 8 ports - Managed

Rack-mountable 1U

Gigabit Ethernet

8 x 10/100/1000 (PoE+) + 4 x SFP (mini-GBIC) (uplink)

PoE+

124 W

Aggregate switching bandwidth: 36 Gbps
Forwarding rate: 26.8 Mpps

VLANs supported: 4096
Longest prefix match (LPM) entries (IPv4): 32
IPv4 hosts: 3100
Longest prefix match (LPM) entries (IPv6): 16
IPv6 hosts: 500
IP multicast groups: 64
IP multicast entries: 1500
Port queues: 8
ACL entries (ingress): 1000
Policy profiles: 63

16K entries

9216 bytes

Static IP routing

Layer 2 switching, half duplex mode, full duplex mode, fanless, Energy Efficient Ethernet

IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt

1 x ARM A9

512 MB

128 MB

8 x 1000Base-T RJ-45 PoE+
4 x 1/2.5GBase-X SFP
1 x serial (console) RJ-45
1 x USB Type A

Internal power supply

1

AC 120/230 V (50/60 Hz)

155.2 Watt

Included

BSMI, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, SABS, EN55024, CB, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-3, CCC, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, CDRH, VCCI Class A, EAC, GB 9254, EN 300 386 V1.6.1, RoHS 2011/65/EU, EN 6100-4-2, EN 55011 class A, CISPR 11 class A, WEEE 2012/19/EU, EMC 2014/30/EU, FCC CFR47 Part 15 B Class A, LVD 2014/35/EU, GB 4943.1-2011, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, NRCS, EN/ETSI 300 753, ASTM D3580, CISPR 24:2010 Class A, ACMA RCM, CISPR 32 Class A, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, EN 6100-3-3:2013, China RoHS SJ/T 11363-2006, RoHS CNS 15663, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e, FCC CFR21 Part 1040.10, EN 6100-3-2:2014, AS/NZS CISPR 32

ExtremeXOS Value Edge

32 cm

20 cm

4.36 cm

2.2 kg

Limited warranty - lifetime

0 °C

40 °C

10 - 95% (non-condensing)

-40 °C

70 °C

10 - 95% (non-condensing)
