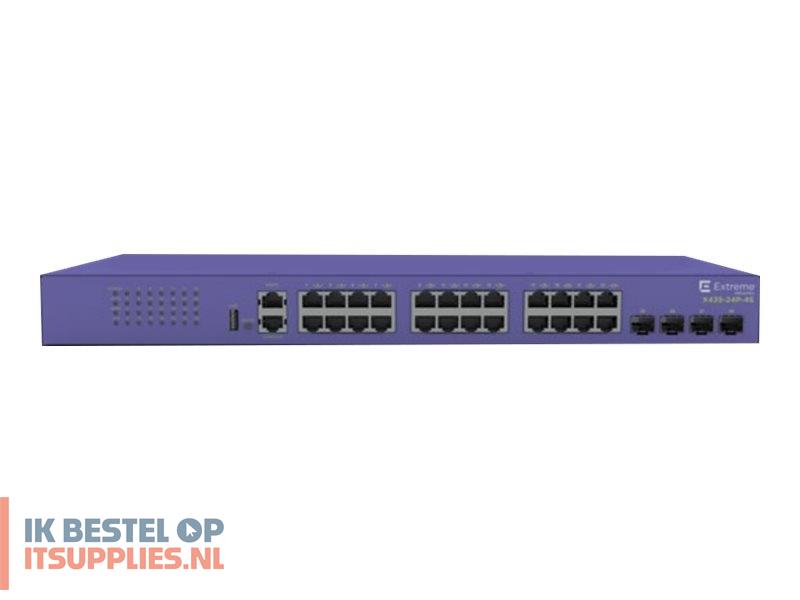

Extreme Networks ExtremeSwitching X435-24T-4S

Productcode: X435-24T-4S | EAN/UPC: 0644728046072
1.320,63 excl.btw
Extreme Networks ExtremeSwitching X435-24T-4S - Switch - Managed - 24 x 10/100/1000 + 4 x SFP (mini-GBIC) (uplink) - rack-mountable
  • Cost-effective standalone switch for edge, branch and small site deployments
  • 24-port Gigabit Ethernet connectivity
  • Fanless for silent operation - ideal for classrooms, offices or retail locations
  • System can draw power from an upstream PoE switch - eliminating need for a separate PSU
  • Non-blocking, wire-speed design
Op voorraad: 3 stuk(s)
Levertijd:
Product:
Extreme Networks ExtremeSwitching X435-24T-4S
1597,96 incl. 21% btw 1320,63excl. 21% btw
Voorraad: 3

Omschrijving

Extreme Networks ExtremeSwitching X435-24T-4S - Switch - Managed - 24 x 10/100/1000 + 4 x SFP (mini-GBIC) (uplink) - rack-mountable
Product features
  • Flexible PoE
    The X435 Series provides standards-based IEEE 802.3at 30W access ports. PoE eliminates the need for additional electrical cabling and circuits otherwise needed to power edge devices, such as IP phones or wireless APs.
  • Fabric Attach
    Fabric Attach on the X435 can be used to automate the connection to Extreme's campus-based Fabric Connect solution. Fabric Attach provides zero-touch edge provisioning and allows the X435 to take advantage of the virtualized services and inherent security capabilities of the Extreme Fabric Connect infrastructure.
  • Fanless operation
    Fanless operation makes the X435 ideal for classrooms, hospitality suites, retail sites or other noise-sensitive environments - especially outside of the wiring closet environment.
  • Role-based policy
    The X435 supports role-based policies centrally administered through the ExtremeControl policy manager. This policy framework empowers network administrators to define distinct roles or profiles to represent specific operational groups that may exist in an enterprise.

Specificaties

General
Device Type
Switch - 24 ports - Managed
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 + 4 x SFP (mini-GBIC) (uplink)
Performance
Aggregate switching bandwidth: 68 Gbps
Forwarding rate: 50.6 Mpps
Capacity
VLANs supported: 4096
Longest prefix match (LPM) entries (IPv4): 32
IPv4 hosts: 3100
Longest prefix match (LPM) entries (IPv6): 16
IPv6 hosts: 500
IP multicast groups: 64
IP multicast entries: 1500
Port queues: 8
ACL entries (ingress): 1000
Policy profiles: 63
MAC Address Table Size
16K entries
Jumbo Frame Support
9216 bytes
Routing Protocol
Static IP routing
Features
Layer 2 switching, half duplex mode, full duplex mode, fanless, Energy Efficient Ethernet
Compliant Standards
IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz
Processor
1 x ARM A9
RAM
512 MB
Flash Memory
128 MB
Expansion / Connectivity
Interfaces
24 x 1000Base-T RJ-45
4 x 1/2.5GBase-X SFP
1 x serial (console) RJ-45
1 x USB Type A
1 x management (Gigabit LAN) RJ-45
Power
Power Device
Internal power supply
Installed Qty
1
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
21.3 Watt
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
BSMI, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, SABS, EN55024, CB, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-3, CCC, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, CDRH, VCCI Class A, EAC, GB 9254, EN 300 386 V1.6.1, RoHS 2011/65/EU, EN 6100-4-2, EN 55011 class A, CISPR 11 class A, WEEE 2012/19/EU, EMC 2014/30/EU, FCC CFR47 Part 15 B Class A, LVD 2014/35/EU, GB 4943.1-2011, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, NRCS, EN/ETSI 300 753, ASTM D3580, CISPR 24:2010 Class A, ACMA RCM, CISPR 32 Class A, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, EN 6100-3-3:2013, China RoHS SJ/T 11363-2006, RoHS CNS 15663, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e, FCC CFR21 Part 1040.10, EN 6100-3-2:2014, AS/NZS CISPR 32
Software / System Requirements
Software Included
ExtremeXOS Value Edge
Dimensions & Weight
Width
44.1 cm
Depth
25.4 cm
Height
4.35 cm
Weight
2.95 kg
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 95% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
