General
Device Type

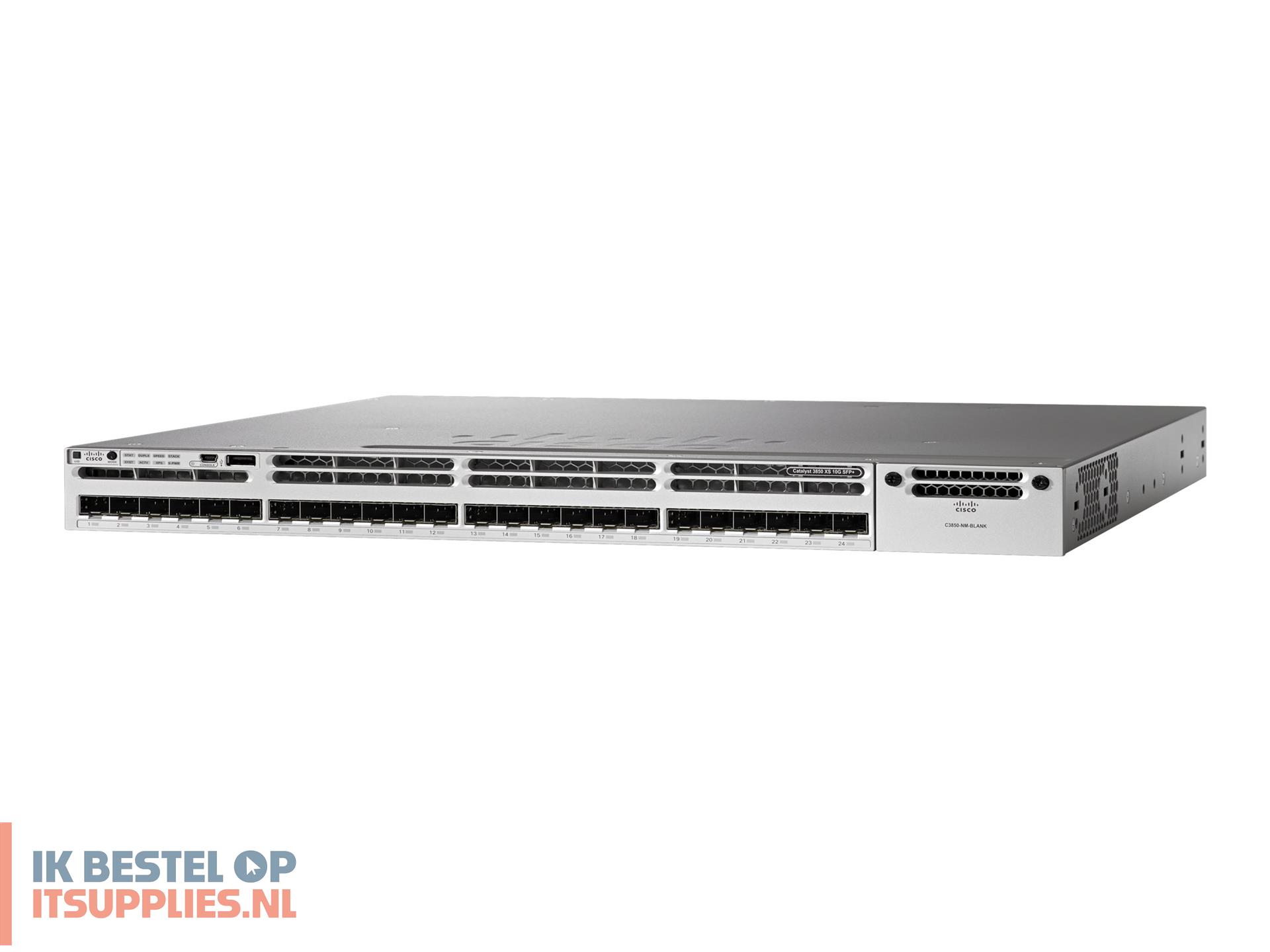

Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Desktop, rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports

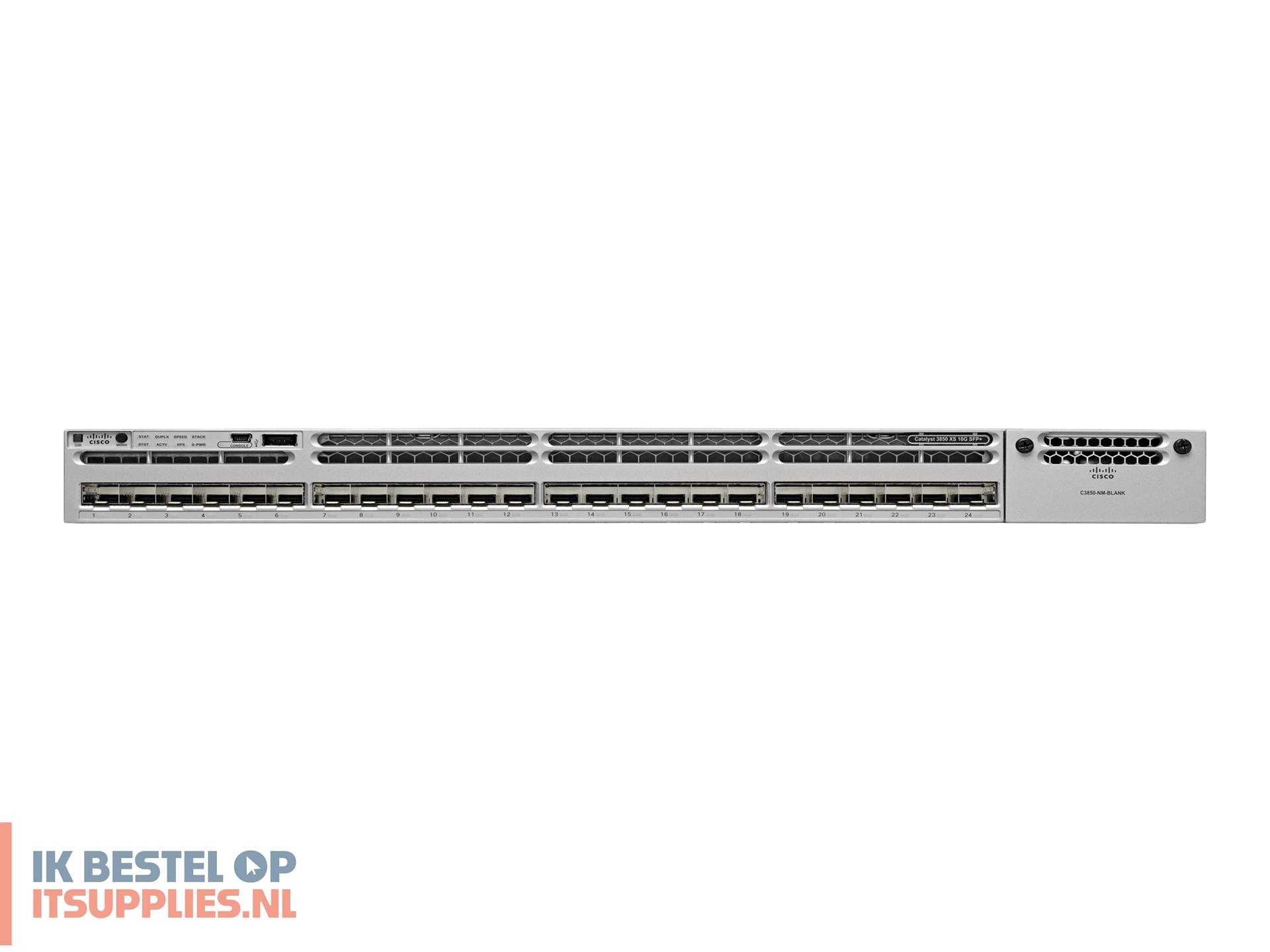

24 x 1 Gigabit / 10 Gigabit SFP+
Performance
Switching capacity: 640 Gbps
Stacking bandwidth: 480 Gbps
Capacity
IPv4 routes: 24000
NetFlow entries: 48000
Switched virtual interfaces (SVIs): 1000
Virtual interfaces (VLANs): 4000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
IS-IS, RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, policy-based routing (PBR), RIPng, MLDv2, MLD
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features
DHCP support, ARP support, Syslog support, PIM snooping, MSTP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, QoS, SSH support, VRF-Lite, UDLD, Rapid PVST+, SRR, LACP, RSPAN, Energy Efficient Ethernet, VRF, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, 802.1x authentication, RRM, ARP inspection, WTD, VTP, BPDU, CoPP
Compliant Standards
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Status Indicators
Port transmission speed, port duplex mode, power, system, active, status
Expansion / Connectivity

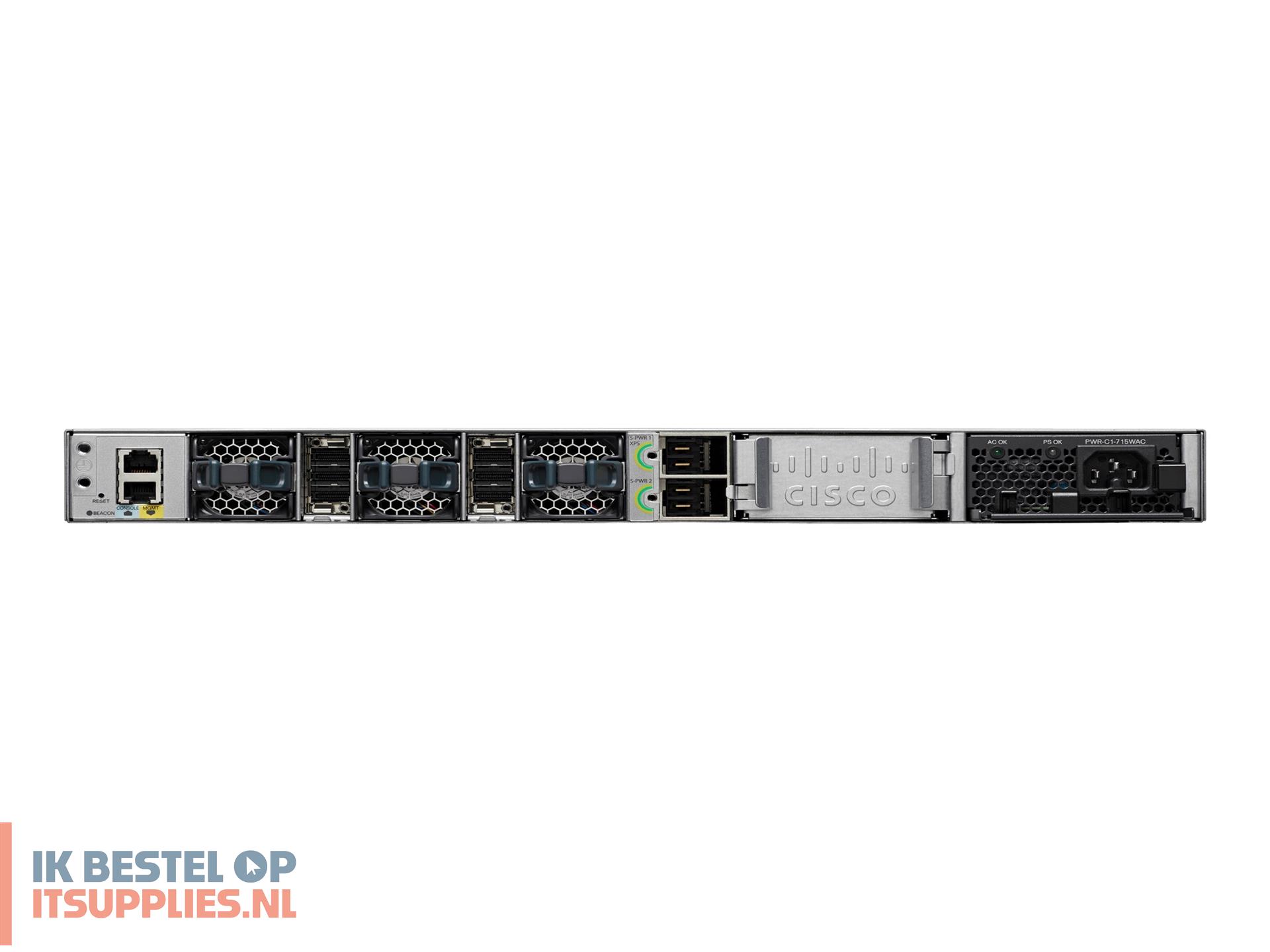

Interfaces
24 x 10GBase-X SFP+
1 x USB Type A
1 x management (mini-USB) Type B
1 x console RJ-45 management
1 x management (Gigabit LAN) RJ-45
2 x network stack device
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Power
Power Device
Internal power supply
Power Redundancy Scheme
1+1 (with optional power supply)
Voltage Required
AC 120/230 V (50 - 60 Hz)
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, KCC, RoHS, FCC Part 15 A, AS/NZS 3548 Class A, BSMI Class A, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR 22, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1
Software / System Requirements
Software Included
Cisco IOS IP Base
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - advance parts replacement - lifetime - response time: next business day
Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
