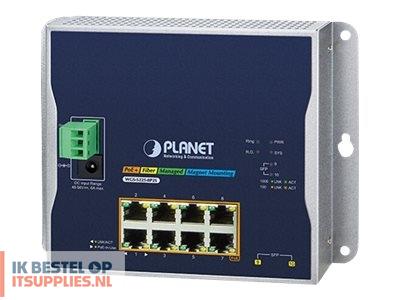

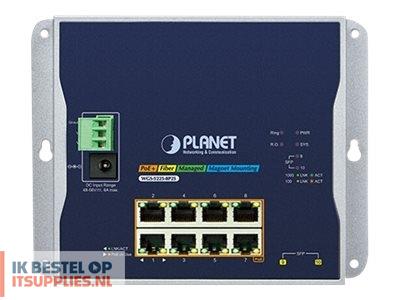

Planet WGS-5225-8P2S - Switch

Productcode: WGS-5225-8P2S | EAN/UPC: 4711605283281

€ 326,72 excl.btw

PLANET WGS-5225-8P2S - Switch - L4 - Managed - 8 x 10/100/1000 (PoE+) + 2 x 100/1000/2.5G - DIN rail mountable, wall-mountable - PoE+ (240 W) - DC power

Redundant ring, fast recovery for critical network applications
Convenient and smart ONVIF devices with detection feature
Intelligent powered device alive check
Scheduled power recycling
PoE schedule for energy saving
Innovative wall-mount installation
Layer 3 IPv4 and IPv6 software VLAN routing for secure and flexible management
Efficient management
Powerful security

Op voorraad: 3 stuk(s)

Levertijd:

Product:
Planet WGS-5225-8P2S - Switch

€ 395,33 incl. 21% btw € 326,72excl. 21% btw

Winkelwagen Offerte

Omschrijving

PLANET WGS-5225-8P2S - Switch - L4 - Managed - 8 x 10/100/1000 (PoE+) + 2 x 100/1000/2.5G - DIN rail mountable, wall-mountable - PoE+ (240 W) - DC power

Product features

Redundant ring, fast recovery for critical network applications
The WGS-5225-8P2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and dual power input system into customer's industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple ring network, the recovery time of data link can be as fast as 10ms.
Convenient and smart ONVIF devices with detection feature
From the WGS-5225-8P2S's GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and can remotely monitor or inspect an assembly line. Moreover, you can get real-time surveillance information and online/offline status; the PoE reboot can be controlled from the GUI.
Intelligent powered device alive check
The WGS-5225-8P2S can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the WGS-5225-8P2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD's power source and reducing administrator management burden.
Scheduled power recycling
The WGS-5225-8P2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.
PoE schedule for energy saving
Under the trend of energy saving worldwide and contributing to environmental protection, the WGS-5225-8P2S can effectively control the power supply besides its capability of giving high watts power. The "PoE schedule" function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.
Innovative wall-mount installation

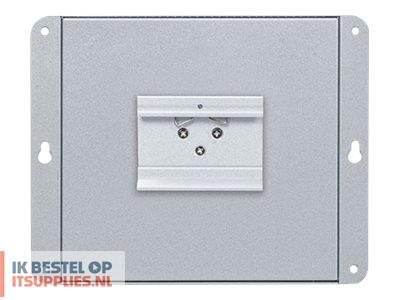

The WGS-5225-8P2S is specially designed to be installed in a narrow environment, such as wall enclosure or electric weak box. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly "Front Access" design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-5225-8P2S placed in an enclosure very convenient for technicians. The WGS-5225-8P2S can be installed by fixed wall mounting, magnetic wall mounting or DIN rail, thereby making its usability more flexible.
Layer 3 IPv4 and IPv6 software VLAN routing for secure and flexible management
To help customers stay on top of their businesses, the WGS-5225-8P2S not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.
Efficient management
For efficient management, the WGS-5225-8P2S is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, the WGS-5225-8P2S offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the WGS-5225-8P2S can be accessed via Telnet and the console port. Moreover, it also offers secure remote management via any standard-based management software by supporting SNMPv3 connection which encrypts the packet content at each session.
Powerful security
The WGS-5225-8P2S offers a comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication.

Specificaties

General

Device Type

Switch - 8 ports - L4 - Managed

Enclosure Type

DIN rail mountable, wall-mountable

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 (PoE+) + 2 x 100/1000/2.5G

Power Over Ethernet (PoE)

PoE+

PoE Budget

240 W

Performance

Switching fabric bandwidth: 26 Gbps
Throughput (64-byte packet size): 14.88 Mpps

MAC Address Table Size

8K entries

Jumbo Frame Support

9KB

Routing Protocol

IGMPv2, IGMP, IGMPv3, MLDv2, MLD

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH

Encryption Algorithm

SSL

Authentication Method

Secure Shell (SSH), RADIUS, TACACS+

Features

Flow control, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, WRR queuing, store and forward, IPv6 support, half duplex mode, full duplex mode, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, TFTP support, ACL support, QoS, MLD snooping, IPv4 support, LLDP support, SNMP support, DSCP support, Back Pressure Support, ICMP

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at

Status Indicators

Power, PoE, link/activity

Expansion / Connectivity

Interfaces

8 x 1000Base-T RJ-45 PoE+ - 36 W

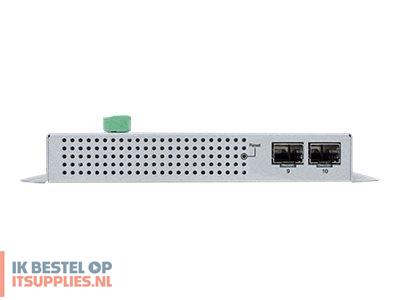

2 x 1/2.5GBase-X SFP

Power

Voltage Required

DC 48 - 56 V

Power Consumption Operational

250.4 Watt

Miscellaneous

Compliant Standards

FCC Part 15 A, IP30

Dimensions & Weight

Width

18 cm

Depth

2.44 cm

Height

14 cm

Weight

686 g

Environmental Parameters

Min Operating Temperature

-40 °C

Max Operating Temperature

75 °C

Humidity Range Operating

5 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

85 °C

Humidity Range Storage

5 - 95% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
