General
Device Type

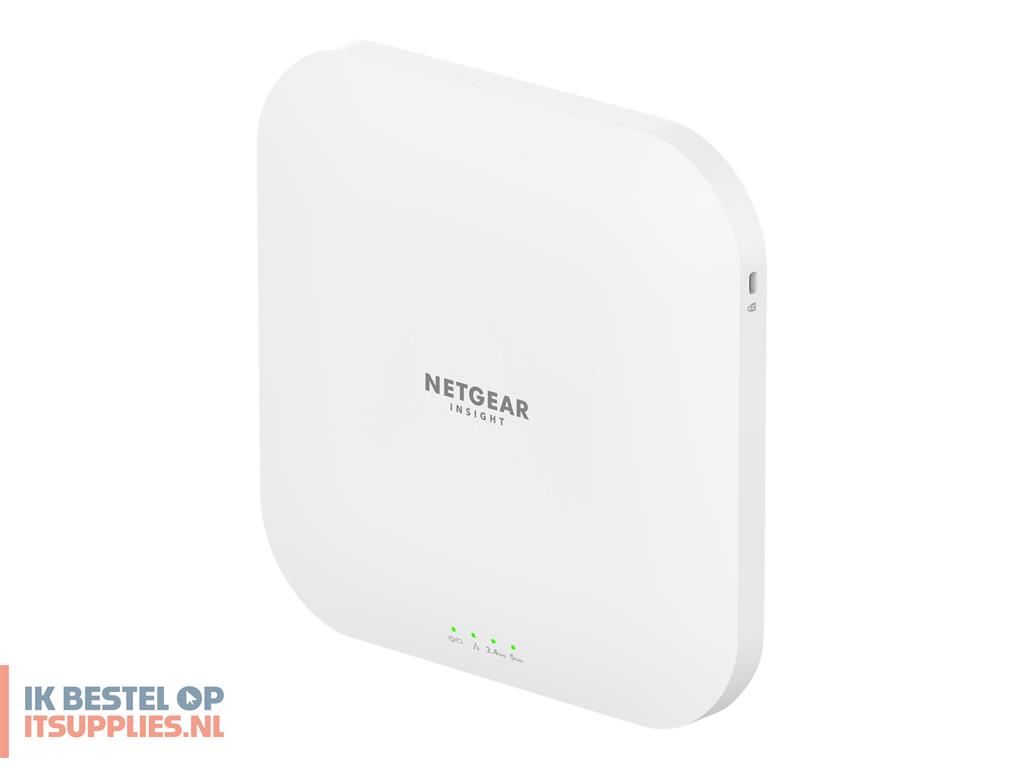

Radio access point
Networking
Form Factor
Wall / ceiling mountable
Connectivity Technology
Wireless
Line Coding Format
OFDM, OFDMA
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
Spread Spectrum Method
OFDM, OFDMA
Remote Management Protocol
RADIUS
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum throughput (5 GHz): 2400 Mbps
Maximum throughput (2.4 GHz): 1200 Mbps
Capacity
Maximum number of users: 256
Concurrent users: 75
SSIDs total: 8
Streams: 8
Status Indicators
Power, LAN, 2.4/5 GHz
Features
VLAN support, auto-uplink (auto MDI/MDI-X), MAC address filtering, Wireless Distribution System (WDS) support, Wi-Fi Multimedia (WMM) support, bandwidth control, LLDP support, Captive Portal, 802.1x authentication, Beamforming+, Transmit Power Control (TPC), band steering, WDS bridge, Backhaul Technology, 4x4 MU-MIMO technology, WDS PTMP (Point to Multipoint), WDS PTP (Point to Point), WDS repeater mode, Target Wait Time (TWT), BSS Coloring, Guest Network, Neighbor AP detection, Block SSID Broadcast
Encryption Algorithm
SSL, TLS, PEAP, TTLS, WPA, WPA2, WPA-Enterprise, WPA2-Enterprise, WPA3
Authentication Method
RADIUS, Extensible Authentication Protocol (EAP)
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Aerial
Internet of Things (IoT)
Internet of Things (IoT) Compatible
Yes
Expansion / Connectivity
Interfaces
1 x 1/2.5GBase-T (PoE+) - RJ-45
Miscellaneous
Included Accessories
Wall/ceiling mounting kit
Power
Power Over Ethernet (PoE) Supported
PoE+
Software / System Requirements
Software Included
NETGEAR Insight (1 year subscription)
Manufacturer Warranty
Service & Support
Limited warranty - replacement - 5 years - response time: next business day
Technical support - 90 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
