General
Device Type

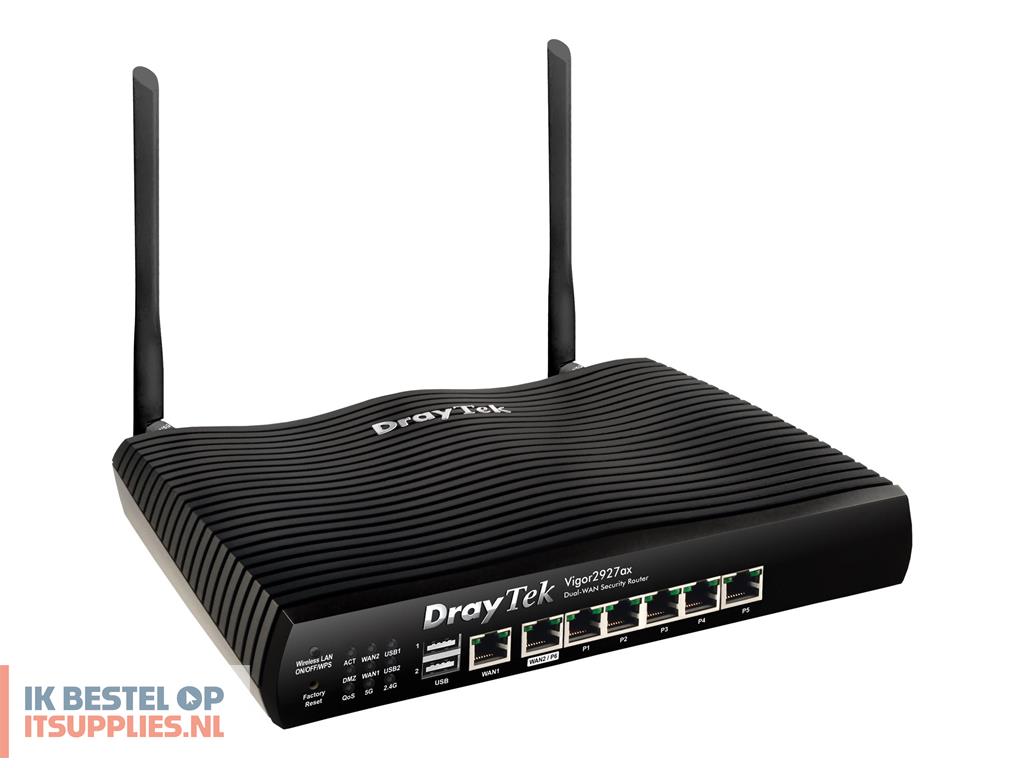

Wireless router - 6-port switch (integrated)
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
Frequency Band
2.4 GHz / 5 GHz
Performance
VPN throughput (256-bit AES IPSec): 300 Mbps
VPN throughput (IPSec): 800 Mbps
VPN throughput (SSL): 120 Mbps
NAT throughput for single WAN with hardware acceleration: 950 Mbps
NAT throughput for dual WAN with hardware acceleration: 1.8 Gbps
NAT throughput: 800 Mbps
Maximum data rate (5 GHz): 2400 Mbps
Maximum data rate (2.4 GHz): 574 Mbps
Capacity
Concurrent VPN tunnels: 50
Concurrent SSL VPN tunnels: 25
NAT sessions: 60000
Hardware accelerated NAT sessions: 8000
SSIDs per radio: 4
Network / Transport Protocol
PPTP, L2TP, IPSec, PPPoE, ARP, FTP, DHCP, DNS, Bonjour, SMB, DDNS, DHCPv6, RTSP, IPv4, IPv6
Routing Protocol
RIP-1, RIP-2, BGP, GRE, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), RIPng
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, TR-069
Encryption Algorithm
DES, Triple DES, MPPE, IKE, SSL, SHA-1, WPA, WPA2, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, WEP, WPA3, SHA-256
Authentication Method
RADIUS, X.509 certificates, TACACS+, LDAP, XAUTH authentication
Features
Firewall protection, NAT support, VPN support, load balancing, IGMP snooping, Syslog support, SPI, DoS attack prevention, content filtering, ALG support, port mirroring, E-mail alert, MAC address filtering, VPN passthrough, firmware upgradable, DDos attack prevention, wall mountable, LAN-to-LAN bridging, tunnelling, WMM support, file sharing, QoS, dual WAN connection, DPD, IPSec NAT-T, WPS, WAN failover, DHCP server, reset button, port triggering, 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, DHCP client, IGMP proxy, ToS, MU-MIMO technology, beamforming technology, band steering, failover protection, IGMP fast leave, Airtime Fairness, DMZ support, VLAN Tagging, port-based VLAN, DNSSEC support, DHCP over IPSec, PPP, DSCP based QoS, Brute Force Protection
Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, X.509
Built-in Devices
Led panel
Status Indicators
WAN, DMZ, link/activity, USB, 5 GHz, 2.4 GHz, QoS
Expansion / Connectivity
Interfaces
LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45
WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
USB: 2 x 4 pin USB Type A
WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Aerial
Aerial
External detachable
Power
Power Device
External power adapter
Miscellaneous
Cables Included
1 x network cable - 2 m
Localisation
Austria, Germany, Switzerland
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90% (non-condensing)
