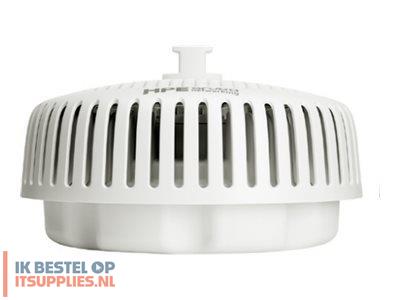

HPE Aruba Networking AP-677 (RW)

Radio access point

Outdoor

29 cm

28.8 cm

17.1 cm

3.6 kg

External

Wireless

3.9 Gbps

CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, DSSS

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, Bluetooth 5.0 LE, IEEE 802.11ax (Wi-Fi 6E)

OFDM, DSSS, OFDMA

2.4 GHz, 5 GHz, 6 GHz

Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 287 Mbps ¦ Maximum data rate (6 GHz): 2.4 Gbps

Spatial streams: 2 ¦ Associated client devices per radio: 512 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 37

System, status, radio

Surge protection, Trusted Platform Module (TPM), reset button, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Zero-touch provisioning (ZTP), 2x2 MIMO technology, Very High Throughput (VHT) support, Target Wait Time (TWT), 160MHz bandwidth support, Advanced IoT Coexistence (AIC)

WPA3, WPA3-Enhanced Open, WPA2-MPSK

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax

Internal

2

Directional

6.9 dBi

Yes

Bluetooth Low Energy (LE), Zigbee

1 x 2.5 GBase-T ¦ 1 x 1000Base-SR - SFP+ ¦ 1 x console - USB-C

500,562 hours

ASTM B117, IEC 60950-22, UL 50E, EMC 2014/30/EU, LVD 2014/35/EU, ATEX Zone 2, EN 50155, EN 62368-1, IEC 62368-1, ISED, UL 62368-1, IEC 60079-0, EN 60079-0, UL 121201, Class 1 Div 2 (C1D2)

PoE Class 6

45.5 Watt

ArubaOS, InstantOS

Limited warranty - lifetime

-40 °C

70 °C

5 - 100% (non-condensing)
