General
Device Type

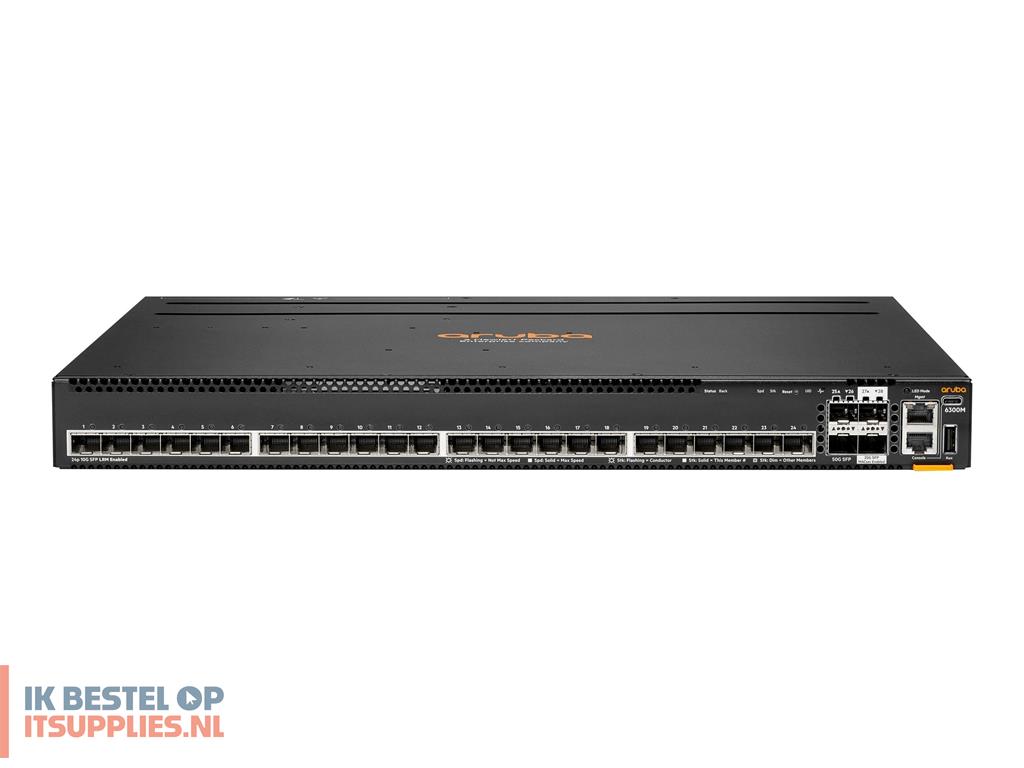

Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Front and side to back rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
24 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP56 (uplink / stacking)
Performance
Switching capacity: 880 Gbps
Throughput: 654 Mpps
Latency (1 Gbps): 1.99 µs
Latency (10 Gbps): 1.49 µs
Latency (25 Gbps): 2.85 µs
Latency (50 Gbps): 2.82 µs
Stacking bandwidth: 200 Gbps
Stacking bandwidth (full-duplex): 400 Gbps
Packet buffer size: 8 MB
Capacity
Switched virtual interfaces (SVIs): 1024
IPv4 host table capacity: 49152
IPv6 host table capacity: 49152
IPv4 routes (Unicast): 61000
IPv6 routes (Unicast): 61000
IPv4 routes (Multicast): 8192
IPv6 routes (Multicast): 8192
IGMP groups: 4096
MLD groups: 8192
IPv4 ACL entries (ingress): 20480
IPv6 ACL entries (ingress): 5120
MAC ACL entries (ingress): 20480
IPv4 ACL entries (egress): 8192
IPv6 ACL entries (egress): 2048
MAC ACL entries (egress): 8192
MAC Address Table Size
32768 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB, HPE SmartRate
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX
Processor
1 x ARM Cortex-A72: 1.8 GHz
Expansion / Connectivity
Interfaces
24 x 1/10Gbit LAN SFP+
4 x 1Gbit/10Gbit/25Gbit SFP56 uplink/stacking
1 x USB-C console
1 x management RJ-45 out-of-band network management
1 x USB Type A host
Power
Power Device
Internal power supply - hot-plug
Power Redundancy Scheme
1+1 (with optional power supply)
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
85 Watt
Power Consumption Stand by
51 Watt
Miscellaneous
Included Accessories
2 x fan trays (field replaceable, hot-swappable)
Rack Mounting Kit
Included
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, Laser Class 1, UL 60950-1 Second Edition, FCC Part 15 A, VCCI Class A, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55024:2010, EN 55022:2010 Class A, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, CISPR 35, EN 55035:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, CAN/CSA-C22.2 No. 60950-1-07
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 95% (non-condensing)
