General
Device Type

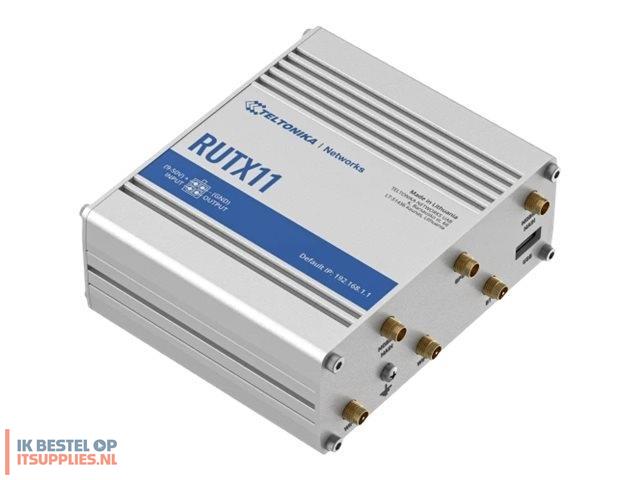

Wireless router - 4-port switch (integrated)
Enclosure Type
DIN rail mountable
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2
Frequency Band
2.4 GHz / 5 GHz
Data Transfer Rate
867 Mbps
Capacity
Simultaneous connections: 150
Network / Transport Protocol
TCP/IP, PPTP, UDP/IP, NTP, PPPoE, ARP, FTP, DHCP, DNS, L2TPv3, DDNS, IPv4, IPv6, Telnet, WireGuard, OpenVPN
Routing Protocol
RIP-1, RIP-2, BGP, VRRP, NHRP, OSPFv2, static IP routing
Remote Management Protocol
SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH, SSH-2, SMTP, Modbus, ICMP, MQTT
Encryption Algorithm
DES, RC2, CAST5, TLS, SSL 3.0, PEAP, TKIP, WPA-PSK, AES-CCMP, WPA2-PSK, WPA2-Enterprise, IKEv2, WEP, 256-bit AES-CBC, 128-bit AES-CBC, 192-bit AES-CBC, IKEv1, WPA-EAP, DESX
Authentication Method
RADIUS, X.509 certificates, Extended Service Set ID (ESSID)
Features
Load balancing, VLAN support, wake on LAN (WOL), auto-uplink (auto MDI/MDI-X), MAC address filtering, Access Point operational mode, firmware upgradable, DDos attack prevention, Wi-Fi Multimedia (WMM) support, event log, Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), Dynamic Multipoint VPN (DMVPN), port forwarding, DHCP relay, SNMP trap, GRE tunneling, Captive Portal, MU-MIMO technology, system log, Web Filtering, Pre-Shared Key (PSK), dual band, black list, white list, bridge mode, Teltonika Remote Management System (RMS), Stealth Mode, H.323 Pass-Through, SIP ALG (Application Layer Gateway), RADIUS Server, SSHFS support, band management, auto APN, client separation, Auto Cipher modes, mobile quota control, multiple PDN, port scan prevention, SSTP client instance support, GPS/GLONASS/Galileo/BeiDou/QZSS support, Unstructured Supplementary Service Data (USSD) support, DNP3 outstation, Networked Transport of RTCM via Internet Protocol (NTRIP)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11e, IEEE 802.11n, IEEE 802.3az, UPnP, IEEE 802.11r, IEEE 802.11ac Wave 2, RoHS, REACH, IP30, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-4-5:2014, ECE-R10, EN 55032:2015, RED, EN 301 489-3 V2.1.1, EN 55035:2017, EN 62368-1:2014+A11:2017, ETSI EN 301 489-17 V3.2.0, ETSI EN 300 328 V2.1.1, ETSI EN 300 440 V2.1.1, ETSI EN 301 893 V2.1.1, EN 61000-4-4:2012, EN 50385:2017, EN 62232:2017, Draft ETSI EN 301 489-1 V2.2.1, IEC 62368-1:2014 2nd Ed
Built-in Devices
GNSS receiver
Status Indicators
Port status, power, signal strength, WAN, 5 GHz, 2.4 GHz, mobile network type
Communications
Type
Wireless cellular modem
Mobile Communication Protocol
FDD LTE
Cellular Band
LTE B13, LTE B2, LTE B4, LTE B12, LTE B7, LTE B25, LTE B26, LTE B5, LTE B29, LTE B66, LTE B30
Max Transfer Rate
300 Mbps
Internet of Things (IoT)
Internet of Things (IoT) Compatible
Yes
Platform
Clouds of Things, ThingWorx, Cumulocity, Azure IoT Hub
Expansion / Connectivity
Interfaces
WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ Antenna: 3 x RP-SMA ¦ Antenna: 3 x SMA
Expansion Slots
2 (total) / 2 (free) x Mini-SIM
Aerial
Aerial
External detachable
Power
Power Device
External power adapter
Miscellaneous
Included Accessories
2 x WiFi aerials, GNSS aerial, 2 x LTE aerials, Bluetooth aerial, SIM card adapter kit
Cables Included
1 x network cable - 1.5 m
Localisation
North America
Software / System Requirements
Dimensions & Weight
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
10 - 90% (non-condensing)
