General
Device Type

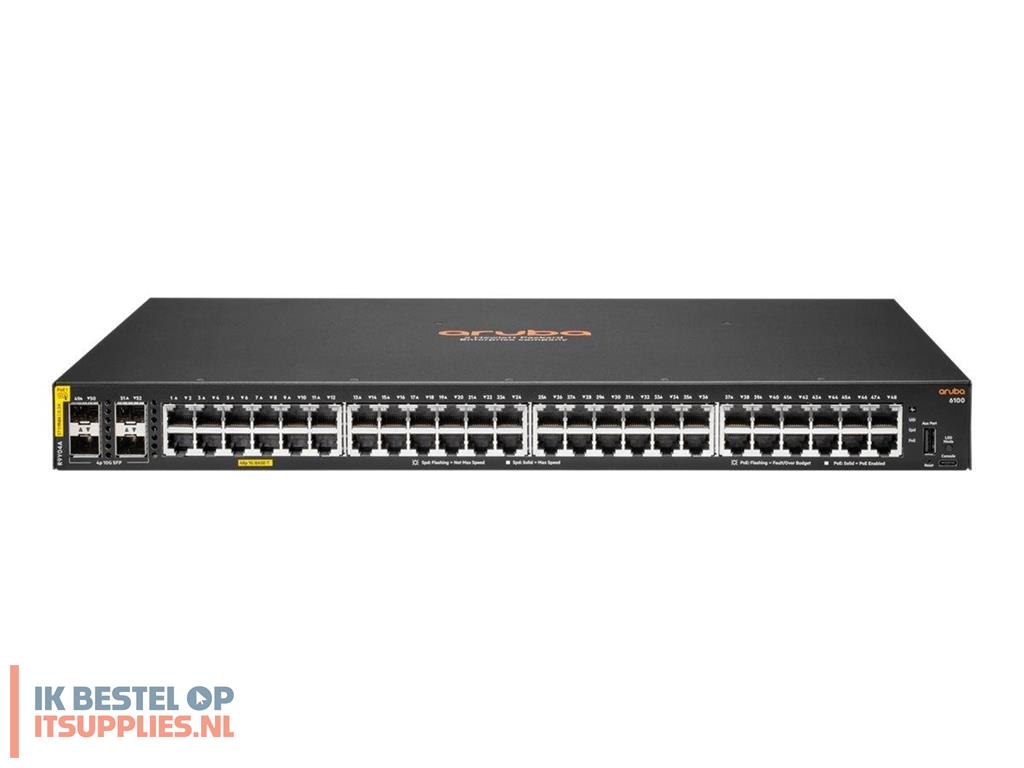

Switch - 48 ports - L3 - Managed
Enclosure Type
Side to side airflow rack-mountable, wall-mountable 1U
Ports
48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 176 Gbps ¦ Throughput: 98.6 Mpps ¦ Latency (1 Gbps): 1.9 µs ¦ Latency (10 Gbps): 1.8 µs
Capacity
Switched virtual interfaces (SVIs) (dual stack): 16 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 host table capacity: 1024 ¦ IPv6 host table capacity: 512 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ Packet buffer size: 12.38 MB
MAC Address Table Size
8192 entries
Jumbo Frame Support
9220 bytes
Routing Protocol
IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Remote Management Protocol
SNMP 2, SNMP, RMON, SNMP 3, CLI, MIB
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
Layer 2 switching, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Uni-Directional Link Detection (UDLD), Class of Service (CoS), Type of Service (ToS), PoE Class 4, Rapid PVST+ (RPVST+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (UTM), Address Resolution Protocol
Compliant Standards
IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Processor
1 x ARM CortexTM A9: 1.016 GHz
Expansion / Connectivity
Interfaces
48 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4 ¦ 4 x Gigabit / 10Gbit LAN SFP+ uplink ¦ 1 x USB-C console ¦ 1 x USB Type A host
Power
Power Device
Internal power supply
Voltage Required
AC 100-127/200-240 V (50/60 Hz)
Power Consumption Operational
49.7 Watt
Power Consumption Stand by
37.5 Watt
Miscellaneous
Compliant Standards
EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, IEC/EN 60825-1:2014 Class 1, EN 60825-1:2014, IEC 62368-1: 2014, CISPR 35: 2016, EN 55035:2017/A11:2020, IEC 62368-1:2018, FCC CFR 47 Part 15 Class A, ICES-003 Issue 7: 2020 Class A, VCCI-CISPR 32 Class A, AS/NZS CISPR 32:2015 Class A, EN 62368-1: 2018, UL 62368-1: 2014 2nd Ed., CNS 15936 Class A, EN 55032:2015 + A11:2020, CISPR-32 Class A
Localisation
English / Europe
Software / System Requirements
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
