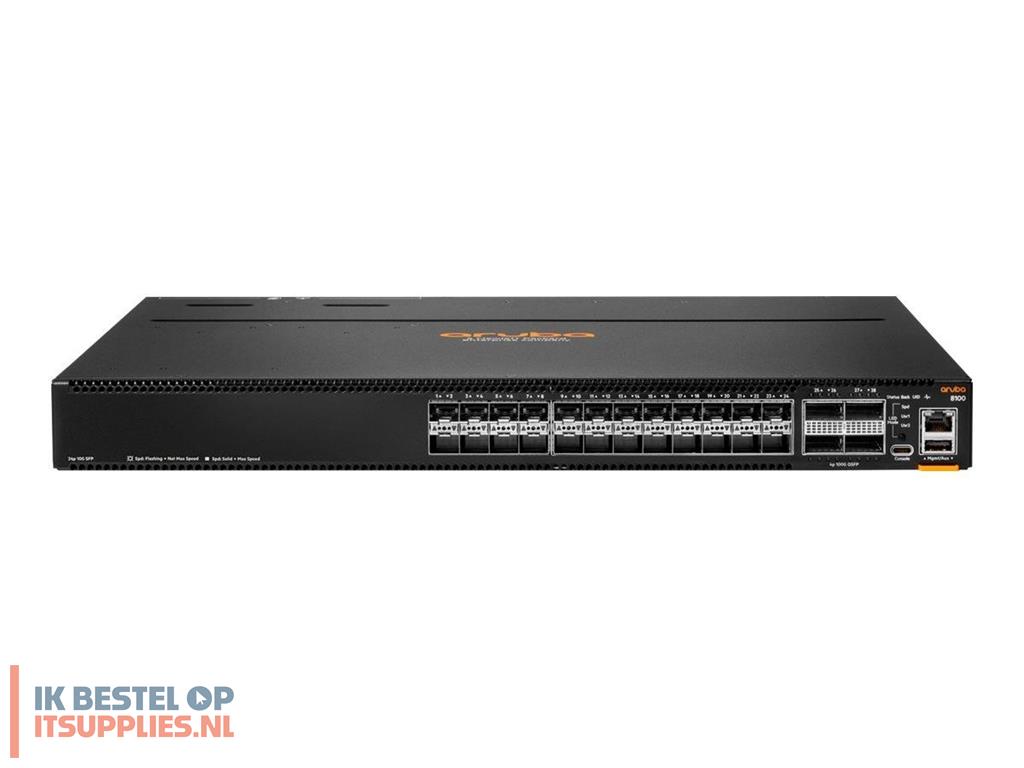

HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 Switch

Productcode: R9W94A | EAN/UPC: -

€ 15.148,53 excl.btw

HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 Switch - Spare Only - switch - L3 - Managed - 24 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28 - rack-mountable

High-performance 1.76Tbps of bi-directional switching and 1,309 Mpps of forwarding designed for aggregation in the campus or top-of-rack in data center environments
Four different base models, each sold in bundles that support two airflow modes with Advanced Layer 2/3 feature set that includes BGP, OSPF, VRF, and IPv6
High availability with industry-leading VSX redundancy and redundant power supplies and fans
Aruba AOS-CX automation and programmability using built-in REST APIs and Python scripts with intelligent monitoring and visibility

Op voorraad: 0 stuk(s)

Levertijd:

Product:
HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 Switch

€ 18329,72 incl. 21% btw € 15148,53excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Product features

Modular cloud-native architecture
Aruba CX 8100 Switch series features AOS-CX which simplify the complexities of managing data center networks with automation options to match your IT organization's operating model. Proactively detect issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch. Always-on infrastructure designed for resiliency and upgrades with zero downtime. REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services. Continual state synchronization provides superior fault tolerance and high availability. Always-on infrastructure designed for resiliency and upgrades with zero downtime.
Aruba network analytics engine
Aruba CX 8100 Switch series utilizes the Aruba Network Analytics Engine (NAE) for advanced telemetry and automation to provide industry-first monitoring and troubleshooting systems that greatly improve network operations. Customers can use data from The Time Series Database (TSDB) to store configuration and operational state to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements.
High availability and resiliency
All software processes in the Aruba CX 8100 Switch series run as microservices that communicate via the state database of the switch; there is no direct communication between microservices. Should software process crash, the impact of that failure will be limited. The ability of AOS-CX to maintain synchronous state across dual control planes allows a unique high availability solution called Aruba Virtual Switching Extension (VSX). Aruba VSX provides a robust, yet simple solution for high availability with a unique design for control plane synchronization and an architecture that is redundant in both hardware and software by deploying two chassis with an inter-switch link, maintaining its independent control.
Software-defined automation
The Aruba CX 8100 Switch series is supported by Aruba Fabric Composer, a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure. Orchestrate a discrete set of switches as a single networking fabric to simplify operations and troubleshooting. This infrastructure and application-aware solution also automates various configuration and lifecycle events.

Specificaties

General

Device Type

Switch - 24 ports - L3 - Managed

Enclosure Type

Rack-mountable 1U

Subtype

10 Gigabit Ethernet

Ports

24 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28

Performance

Switching capacity: 1.28 Tbps

Capacity

IPv4 ACL entries (ingress): 16384 ¦ IPv6 ACL entries (ingress): 4096 ¦ MAC ACL entries (ingress): 16384 ¦ IPv4 ACL entries (egress): 2048 ¦ IPv6 ACL entries (egress): 512 ¦ MAC ACL entries (egress): 2048 ¦ Maximum number of VLANs: 1024 ¦ IGMP groups: 4000 ¦ MLD groups: 4000 ¦ Packet buffer size: 32 MB ¦ IPv4 routes (Multicast): 4096 ¦ IPv6 routes (Multicast): 4096 ¦ Link aggregation groups: 54

MAC Address Table Size

147456 entries

Jumbo Frame Support

9000 bytes

Routing Protocol

BGP-4, RIP-2, IGMPv2, IGMP, IGMPv3, MLDv2, MLD

Remote Management Protocol

SNMP 2, SNMP, SNMP 3, MIB

Authentication Method

Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

Layer 2 switching, port mirroring, sFlow, Quality of Service (QoS), Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), Data Center Bridging (DCB), Generic Routing Encapsulation (GRE), Ethernet Ring Protection Switching (ERPS), RDMA over Converged Ethernet (RoCE), Bridge protocol data unit (BPDU), RDMA over Converged Ethernet (RoCE) v2, Open Shortest Path First (OSPF), Network Timing Protocol (NTP), policy based routing, Rapid PVST+ (RPVST+), Unidirectional Link Detection (UDLD), layer 3 routing, Address Resolution Protocol, Aruba Virtual Switching Extension (VSX), Dynamic VXLAN with BGP-EVPN, Border Gateway Protocol 4 (BGP-4)

Compliant Standards

IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by

Processor

1 x ARM Cortex-A72: 1.8 GHz

RAM

16 GB

Flash Memory

32 GB

Expansion / Connectivity

Interfaces

24 x Gigabit / 10Gbit LAN SFP+ ¦ 4 x 40/100Gbit LAN QSFP28/QSFP+ uplink ¦ 1 x USB-C console ¦ 1 x serial RJ-45 ¦ 1 x USB Type A AUX

Power

Power Device

Internal power supply (not installed) - hot-plug

Max Supported Qty

Voltage Required

AC 100-127/200-240 V (50/60 Hz)

Power Consumption Stand by

120 Watt

Miscellaneous

Included Accessories

2-Post Rack Kit

Compliant Standards

IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, Laser Class 1, EN 61000-4-8, VCCI Class A, EN 61000-3-3:2013, IEC 61000-3-3:2013, EMC 2014/30/EU, CNS 13438 Class A, Directive 2014/35/EU, KN32 Class A, EN 55032:2015, CISPR 35, EN 60825-1:2014, EN 55035:2017, IEC 62368-1: 2014, EN 62368-1:2014 Second Edition, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, IEC 61000-3-2:2019, IEC 62368-1:2018, EN 63000:2018, UL62368-1/CAN/CSA C22.2 No.62368-1, FCC CFR 47 Part 15: 2018 Class A, AS/NZS CISPR 32:2015 Class A, CISPR-32 Class A, EN 62368-1:2020 3rd Edition

Software / System Requirements

OS Required

AOS-CX

Dimensions & Weight

Width

44.25 cm

Depth

40.64 cm

Height

4.4 cm

Weight

8.16 kg

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

45 °C

Humidity Range Operating

15 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

Humidity Range Storage

15 - 95% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
