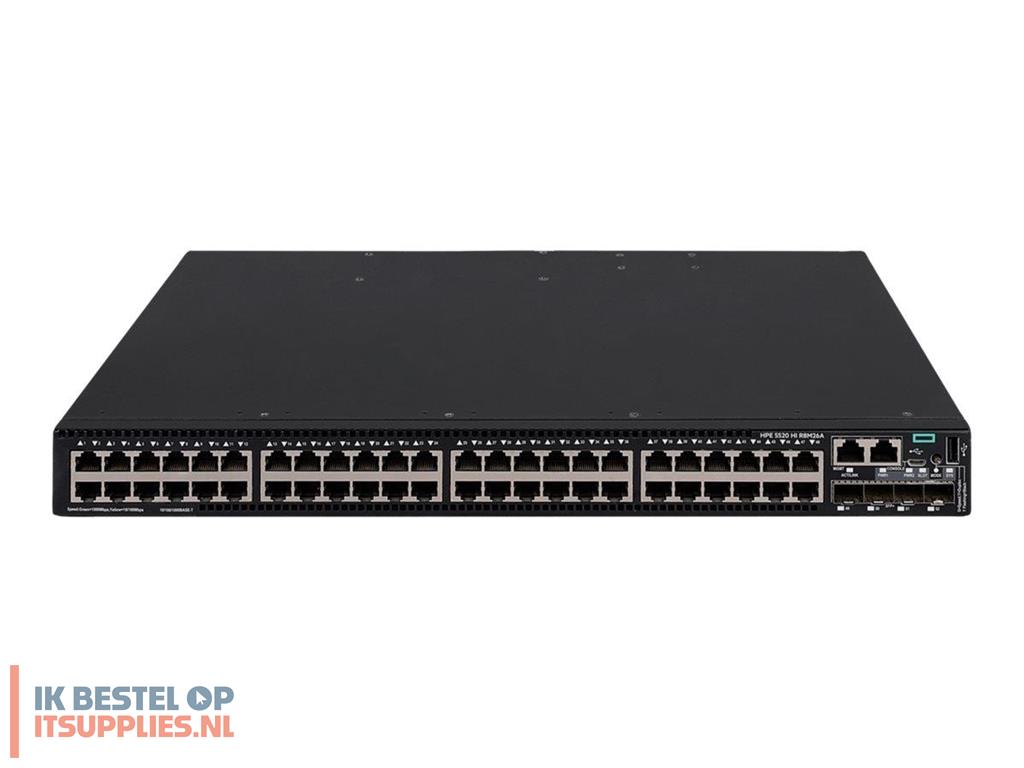

HPE FlexNetwork 5520 48G 4SFP+ HI 1-slot Switch

Switch - 48 ports - L3 - Managed - stackable

Side to back airflow rack-mountable 1U

10 Gigabit Ethernet

48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+

Latency (1000 Mbps): 5 µs ¦ Latency (10 Gbps): 3 µs ¦ Throughput: 180 Mbps ¦ Routing/switching capacity: 288 Gbps

IPv4 routing table entries: 32768 ¦ IPv6 routing table entries: 16384

64K entries

10000 bytes

9

OSPF, RIP, IS-IS, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, ECMP, RIPng, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD), CIDR

SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, SCP, SNMP 6, NTP, ICMP, DHCP, RADIUS

SSL

Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS

Flow control, Layer 3 switching, DHCP support, BOOTP support, ARP support, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, full duplex mode, Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, MLD snooping, Device Link Detection Protocol (DLDP) support, Rapid Ring Protection Protocol (RRPP) support, Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), STP Root Guard, IPv4 support, Deficit Weighted Round Robin (DWRR), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, Multiple VLAN Registration Protocol (MVRP), port isolation, Strict Priority (SP), Generic Attribute Registration Protocol (GARP), 4MB packet buffer, 802.1x authentication, Type of Service (ToS), MACsec support, OpenFlow support, Virtual Private LAN Service (VPLS), IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, proxy ARP, Weighted Round Robin (WRR), hot swap fan tray, Link Power Management (LPM) support, Intelligent Resilient Fabric Technology (IRF), BPDU protection, UDP support, Multiple Registration Protocol (MRP)

IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r

2 GB SDRAM

512 MB

Power, system, operation mode

48 x 1000Base-T RJ-45 ¦ 4 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x serial (console) ¦ 1 x management RJ-45 ¦ 1 x USB 2.0

1 (total) / 1 (free) x Expansion Slot

0 (installed) / 1 (max)

Internal power supply (not installed) - hot-plug

2

2 A

AC 100-240 V (50/60 Hz)

Included

EN55024, AS/NZS 60950-1, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, GB 4943, EN 61000-4-29, ANSI C63.4-2009, EN 60825-2, IPv6 Ready, EN 61000-3-3:2008, EN 61000-3-2:2006+A1:2009+A2:2009, EAC, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, EMC 2004/108/EC, VCCI V-3/2013.04 Class A, CISPR 24:2010, EN 55022:2010, CISPR 22:2008, EN 300 386, FDA 21 CFR, VCCI V-3/2012.04, EN 61000-4-3:2006, CAN/CSA-C22.2 No. 60950-1, EN 61000-4-4:2012

CTO

44 cm

36 cm

4.36 cm

7 kg

Limited warranty - lifetime

-5 °C

45 °C

5 - 95% (non-condensing)

-40 °C

70 °C

5 - 95% (non-condensing)
