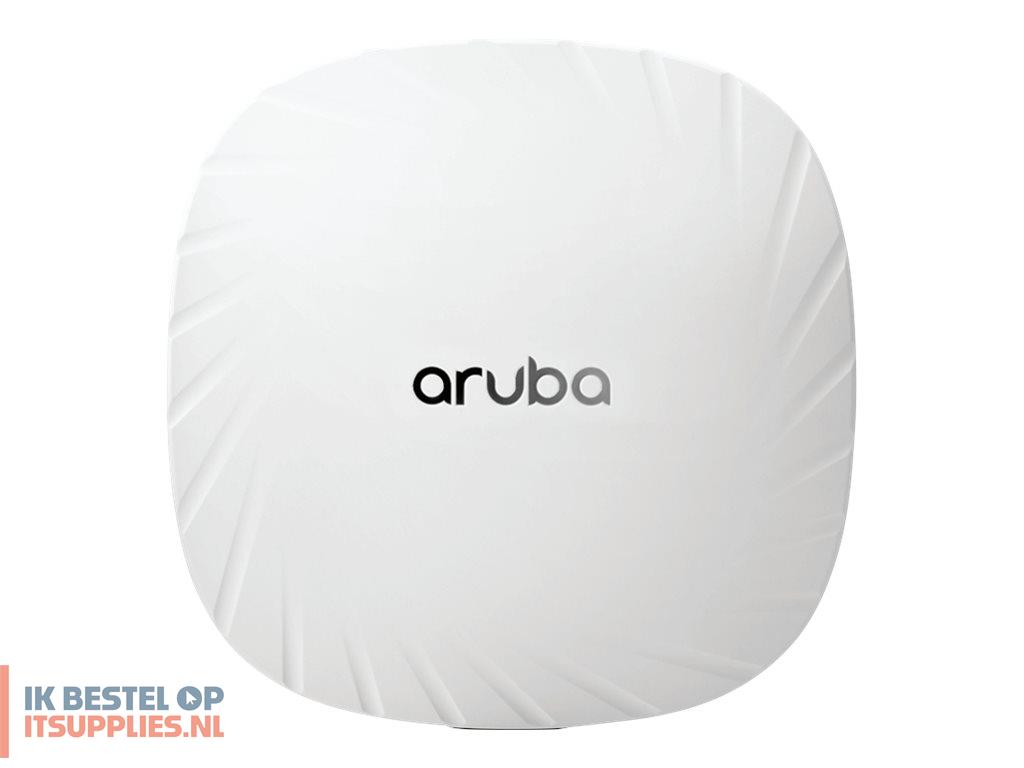

HPE Aruba AP-505 (EG) - Campus

Productcode: R2H25A | EAN/UPC: 0190017357966

€ 659,29 excl.btw

HPE Aruba AP-505 (EG) - Campus - radio access point - Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz - in-ceiling

1.77 Gbps of maximum throughput
WPA3 and Enhanced Open security
Built-in technology that resolves sticky client issues for Wi-Fi 6 and Wi-Fi 5 devices
OFDMA and MU-MIMO for enhanced multi-user efficiency
IoT-ready Bluetooth 5 and Zigbee support

Op voorraad: 0 stuk(s)

Levertijd:

Product:
HPE Aruba AP-505 (EG) - Campus

€ 797,74 incl. 21% btw € 659,29excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

HPE Aruba AP-505 (EG) - Campus - radio access point - Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz - in-ceiling

Product features

Multi-user M1M0 (MU-MIMO)
The 500 Series AP supports downlink MU-MIMO just like Wi- Fi 5 APs. The added benefit is the ability to multiply the number of clients that can now send traffic, thus optimizing client-to-AP spatial stream diversity.
Wi-Fi 6 and MU-MIMO aware client optimization
Aruba's patented AI-powered ClientMatch technology eliminates sticky client issues by placing Wi-Fi 6 capable devices on the available AP. Session metrics are used to steer mobile devices to the AP based on available bandwidth, types of applications being used and traffic type - even as users roam.
Aruba Advanced Cellular Coexistence (ACC)
This feature uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small cell or femtocell equipment.
Intelligent Power Monitoring (IPM)
Aruba APs continuously monitor and report hardware energy consumption. They can also be configured to enable or disable capabilities based on available PoE power - ideal when wired switches have exhausted their power budget.
Green AP energy efficiency
Aruba Wi-Fi 6 APs utilize analytics from NetInsight to automatically transition in and out of a sleep mode based on client density.
VPN Tunnels
In Remote AP (RAP) and IAP-VPN deployments, the Aruba 500 Series can be used to establish a secure SSL/IPSec VPN tunnel to a Mobility Controller that is acting as a VPN concentrator.
Trusted Platform Module (TPM)
For enhanced device assurance, all Aruba Aps have an installed TPM for secure storage of credentials and keys, and boot code.
Simple and secure access
To simplify policy enforcement, the Aruba 500 Series uses Aruba's policy enforcement firewall (PEF) feature to encapsulate all traffic from the AP to the Mobility Controller (or Gateway) for end-to-end encryption and inspection. Policies are applied based on user role, device type, applications, and location. This reduces the manual configuration of SSIDs, VLANs and ACLs. PEF also serves as the underlying technology for Aruba Dynamic Segmentation.
High-density connectivity
Each 500 Series AP provides connectivity for a maximum of 256 associated clients per radio. In real-world scenarios, the maximum recommended client density is dependent on environmental conditions.

Specificaties

General

Device Type

Radio access point

Ruggedized Design

Indoor

Networking

Form Factor

In-ceiling

Connectivity Technology

Wireless

Data Transfer Rate

1.2 Gbps

Line Coding Format

CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)

Spread Spectrum Method

OFDM, DSSS, OFDMA

Frequency Band

2.4 GHz, 5 GHz

Performance

Maximum data rate (2.4 GHz): 574 Mbps
Maximum data rate (5 GHz): 1.2 Gbps
Aggregate throughput: 1.774 Gbps

Capacity

Wireless clients per Wi-Fi radio: 256
BSSIDs per radio: 16
OFDMA units: 8

Status Indicators

System, status

Features

Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT)

Encryption Algorithm

SSL, WPA, WPA2, WPA3

Compliant Standards

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6

Aerial

Antenna

Internal

Antenna Qty

Directivity

Omni-directional

Gain Level

5.7 dBi

Internet of Things (IoT)

Internet of Things (IoT) Compatible

Yes

Communications Technology

Bluetooth Low Energy (LE), Zigbee

Expansion / Connectivity

Interfaces

1 x 1000Base-T - RJ-45
1 x USB 2.0 - Type A
1 x console - micro-USB

Miscellaneous

Included Accessories

Mounting bracket

MTBF

148 years

Compliant Standards

UL 2043, FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, ETS 300 019 Class 2.3, ETS 300 019 Class 1.2

Power

Power Over Ethernet (PoE) Supported

PoE

Power Consumption Operational

8.9 Watt

Software / System Requirements

OS Required

ArubaOS, InstantOS

Dimensions & Weight (Shipping)

Shipping Width

19.3 cm

Shipping Depth

18.3 cm

Shipping Height

6.3 cm

Shipping Weight

645 g

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

5 - 93% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
