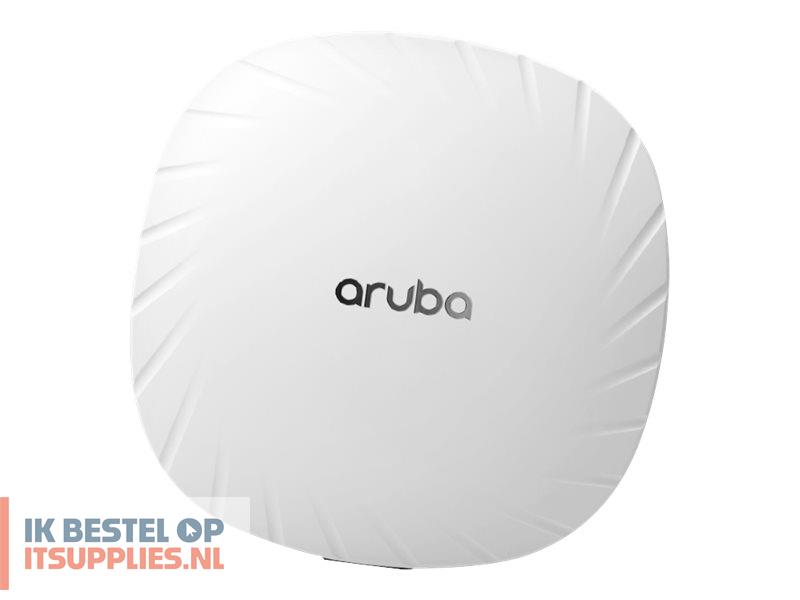

HPE Aruba AP-514 (US) - Campus

Radio access point

Indoor

20 cm

20 cm

4.6 cm

810 g

In-ceiling

Wireless

CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

OFDM, DSSS

2.4 GHz, 5 GHz

Maximum data rate (2.4 GHz): 575 Mbps
Maximum data rate (5 GHz): 4.8 Gbps
Peak data rate: 5.4 Gbps

Wireless clients per Wi-Fi radio: 256
BSSIDs per radio: 16

System, status

MDI/MDI-X switch, auto-uplink (auto MDI/MDI-X), DFS support, Quality of Service (QoS), Trusted Platform Module (TPM), reset button, Link Aggregation Control Protocol (LACP), Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), security lock slot (cable lock sold separately), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, enhanced ClientMatch, packet aggregation A-MPDU, packet aggregation A-MSDU, wireless intrusion protection, Air Monitor (AM), Space-Time Block Code, Intelligent Power Monitoring (IPM), SecureJack, Secure Core Technology (SCT), 4x4 MU-MIMO technology, Aruba AirMatch, spectrum analyser, Target Wait Time (TWT)

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt

External

4

Omni-directional

1 x HPE Smart Rate - RJ-45
1 x 1000Base-T (PoE+) - RJ-45
1 x USB 2.0 - Type A
4 x aerial - RP-SMA
1 x serial / console - micro-USB

560,000 years

UL 2043, FCC, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, IEC/EN/UL 60950, EN60601-1-2, ETS 300 019-1-2, ETS 300 019 Class 2.3

PoE

20.8 Watt

ArubaOS, InstantOS

23 cm

22 cm

7.2 cm

1.01 kg

Limited warranty - lifetime

0 °C

50 °C

5 - 93% (non-condensing)
