General
Device Type

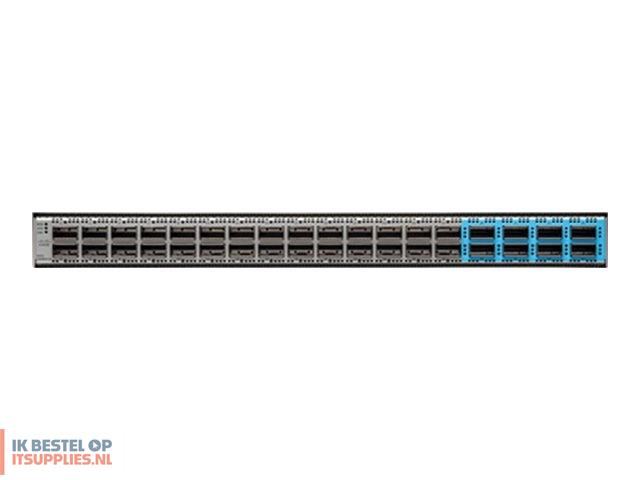

Switch - 36 ports - L3
Enclosure Type
Rack-mountable 1U
Subtype
400 Gigabit Ethernet
Ports
28 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28 + 8 x 100 Gigabit / 400 Gigabit QSFP-DD
Capacity
Longest prefix match (LPM) entries (IPv4): 896000
Host table entries (IPv4): 896000
Multicast routes: 32000
IGMP groups: 8000
ACL entries (ingress): 5000
ACL entries (egress): 2000
Virtual interfaces (VLANs): 3967
VRF instances: 1000
ECMP paths: 64
Port channels: 512
Maximum number of links in a port channel: 32
SPAN sessions: 4
HSRP groups: 490
MST instances: 64
NAT entries: 1023
MAC Address Table Size
256K entries
Routing Protocol
OSPF, RIP-2, BGP, EIGRP, MSDP, MPLS, RSVP
Features
STP support, ACL support, ECMP, port exhaust, MSDP, vPC technology, MACsec support, breakout capability, VXLAN, EVPN, POAP, 5+1 redundant fans, EEM, PSE, PSI, 80MB system buffer
Built-in Devices
128 GB SSD
Expansion / Connectivity
Interfaces
28 x 100Gbit/40Gbit LAN QSFP28 downlink
8 x 100/400Gbit LAN QSFP-DD uplink
1 x management RJ-45
1 x management SFP+
1 x USB
1 x serial (RS-232)
Power
Power Device
Internal power supply - hot-plug
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, KN 61000-4
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - replacement - 1 year
