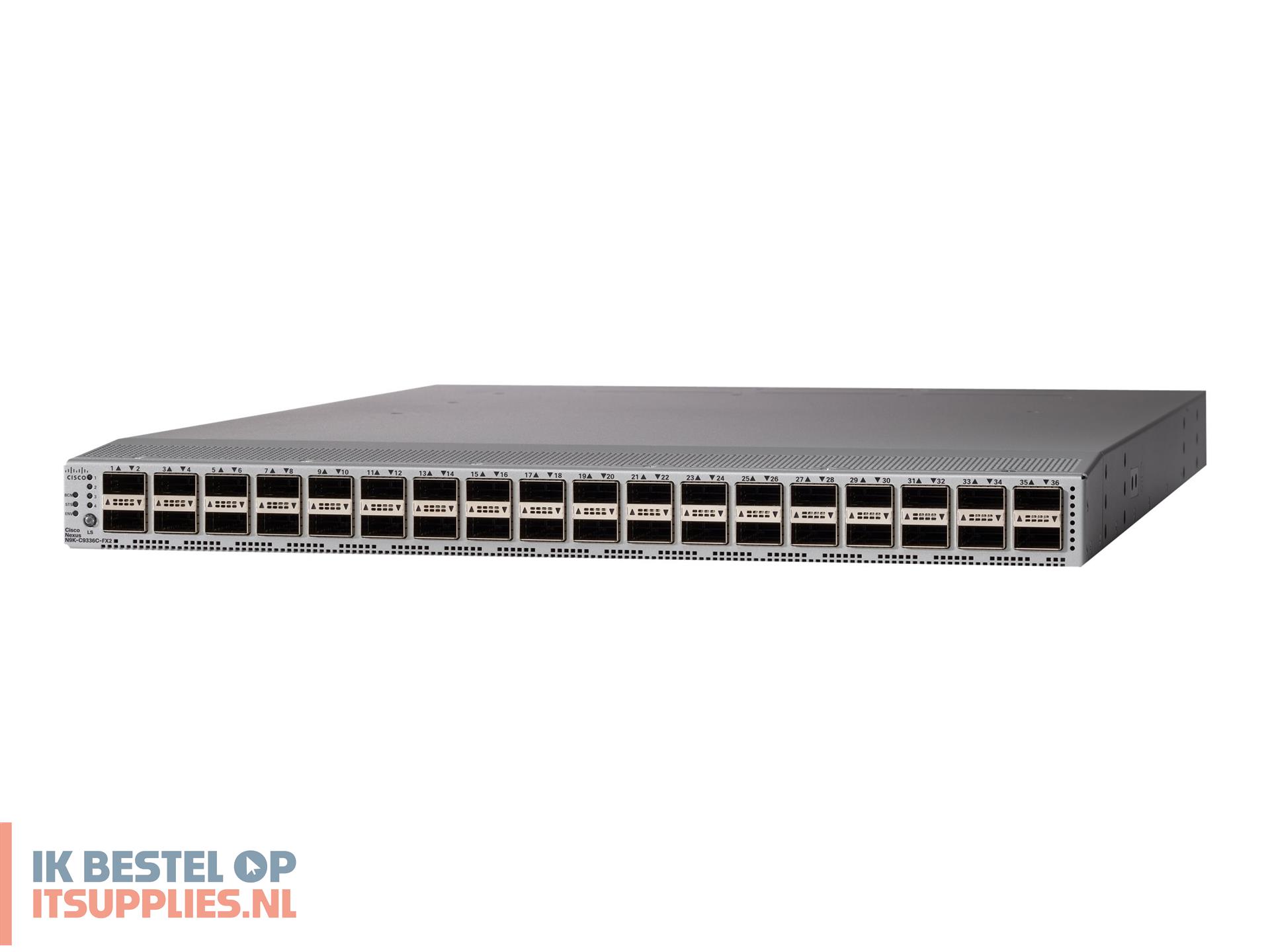

Cisco Nexus 9336C-FX2 - Switch

Productcode: N9K-C9336C-FX2 | EAN/UPC: 0889728116374

€ 12.713,36 excl.btw

Cisco Nexus 9336C-FX2 - Switch - L3 - Managed - 36 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28 - front and side to back - rack-mountable

Automated, policy-based systems management
Real-time buffer utilization per port and per queue
Highly available and efficient design

Op voorraad: 5 stuk(s)

Levertijd:

Product:
Cisco Nexus 9336C-FX2 - Switch

€ 15383,17 incl. 21% btw € 12713,36excl. 21% btw

Winkelwagen Offerte

Omschrijving

Cisco Nexus 9336C-FX2 - Switch - L3 - Managed - 36 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28 - front and side to back - rack-mountable

Product features

Robust performance
With a bandwidth capacity of 7.2 Tbps, the Cisco Nexus 9336C-FX2 ensures high-speed data transmission and efficient handling of network traffic, making it ideal for demanding enterprise environments.
Comprehensive connectivity
Equipped with 36 QSFP28 ports, this switch supports both 100 Gigabit and 40 Gigabit LAN connections, offering versatile connectivity options for a wide range of network configurations.
Advanced networking features
Features such as Access Control List (ACL) support, Ethernet Virtual Private Network (EVPN), and Virtual Extensible LAN (VXLAN) provide enhanced security and network virtualization capabilities, facilitating secure and flexible network architecture designs.
High reliability
Designed for continuous operation, the Cisco Nexus 9336C-FX2 boasts an impressive MTBF of 352,590 hours, ensuring long-term reliability and minimal downtime for critical network operations.
Efficient management and operation
With support for advanced routing protocols like BGP, OSPF, and EIGRP, and features like Power On Auto Provisioning (POAP), managing and operating your network becomes simpler and more efficient, reducing the time and effort required for network administration.

Specificaties

General

Device Type

Switch - 36 ports - L3 - Managed

Enclosure Type

Front and side to back rack-mountable 1U

Ports

36 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28

Performance

Bandwidth: 7.2 Tbps
Bandwidth: 2.8 bpps

Capacity

Multiple Spanning Tree Protocol instances: 64
HSRP groups: 490
ACL entries (ingress): 5000
Maximum number of links in a port channel: 32
Maximum number of port channels: 512
ECMP paths: 64
Virtual Routing and Forwarding (VRF) instances: 16000
VLANs supported: 3967
ACL entries (egress): 2000
IGMP snooping groups: 32000
Multicast routes: 32000
NAT entries: 1023

Routing Protocol

OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS

Features

STP support, MSTP support, ACL support, port exhaust, vPC technology, MACsec support, VXLAN, SSM, EVPN, 40MB system buffer, 3 fan trays, POAP

RAM

24 GB

Built-in Devices

128 GB SSD

Expansion / Connectivity

Interfaces

36 x 100Gbit/40Gbit LAN QSFP28
1 x management RJ-45
1 x management SFP+
1 x USB
1 x serial (RS-232)

Power

Power Device

Internal power supply (not installed)

Max Supported Qty

Power Redundancy

Optional

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

777 Watt

Miscellaneous

MTBF

352,590 hours

Compliant Standards

RoHS

Dimensions & Weight

Width

43.9 cm

Depth

62.3 cm

Height

4.4 cm

Weight

8.5 kg

Manufacturer Warranty

Service & Support

Limited warranty - advance parts replacement - 1 year - response time: 10 days

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

5 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
