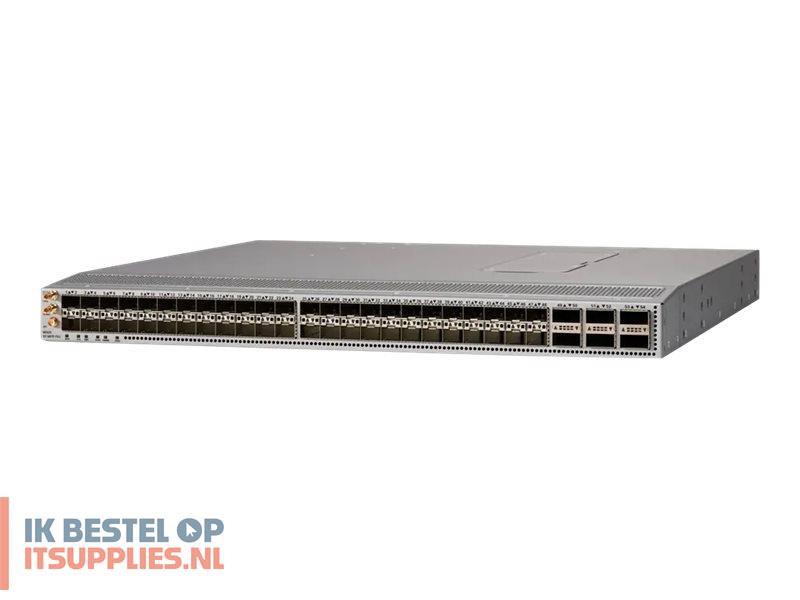

Cisco Nexus 93180YC-FX3 - Switch

Switch - 48 ports - L3 - Managed

Rack-mountable

25 Gigabit Ethernet

48 x 1/10/25 Gigabit SFP+ + 6 x 40/100 Gigabit QSFP28

Bandwidth: 3.6 Tbps

Buffer capacity (MB): 40
Longest prefix match (LPM) routes: 1792000
IP host entries: 1792000
Multicast routes: 128000
IGMP snooping groups (shipping): 8000
IGMP snooping groups (maximum): 32000
Fabric extenders per switch: 16
ACL entries (ingress): 5000
ACL entries (egress): 2000
VLANs supported: 4096
VRF instances (shipping): 1000
VRF instances (maximum): 16000
ECMP paths: 64
Port channels: 512
Maximum number of links in a port channel: 32
SPAN sessions: 4
RPVST instances: 3967
HSRP groups: 490
NAT entries: 1023
MST instances: 64
Flow-table size used for Cisco Tetration Analytics platform: 64000
Queues: 8

512K entries

BGP, MPLS, RSVP, OSPF, EIGRP, RIP-2, PIM-SM, PIM-SSM, MSDP, ECMP, HSRP

IPv6, RESTCONF, NETCONF, CLI, JSON, HTTP, HTTPS

PTP, SyncE, VXLAN, EVPN, ACL support, MACsec, VTEP support, AFD, ETRAP, DPP, RDMA support, DCB, PFC, flow control, ETS, DCBX support, ECN, vPC technology, SPAN, 4 fans, NAT support

ITU-T G.8275.1, IEEE 802.1ae

32 GB

128 GB SSD

48 x 1/10/25GBase-X SFP+
6 x 40/100GBase-X QSFP28
1 x management RJ-45
1 x USB
1 x ToD RJ-45
1 x serial (RS-232)

Internal power supply - hot-plug

2

Optional

N+1

375 Watt

288,760 hours

IEEE 1588, ITU-T G.8273.2 Class B, RoHS, Directive 2004/108/EC, Directive 2006/95/EC, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB 4943, FCC CFR47 Part 15 A, AS/NZS CISPR22 Class A, CISPR 22 Class A, EN 55022 Class A, ICES-003 Class A, VCCI Class A, EN 61000-3-2, EN 61000-3-3, KN22 Class A, CNS 13438 Class A, EN55024, CISPR 24, EN 300 386, KN 61000-4

Cisco NX-OS 10.1.1

43.9 cm

49.6 cm

4.4 cm

9.52 kg

0 °C

40 °C

5 - 95% (non-condensing)

-40 °C

70 °C
