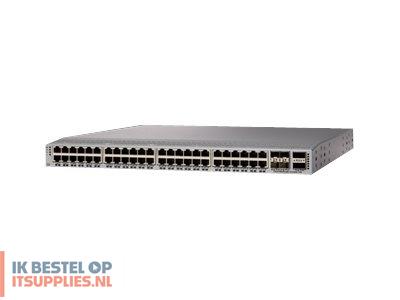

Cisco Nexus 92348GC-X - Switch

Productcode: N9K-C92348GC-X | EAN/UPC: 0889728228404

€ 3.437,90 excl.btw

Cisco Nexus 92348GC-X - Switch - L3 - Managed - 48 x 10/100/1000 + 4 x 1/10/25 Gigabit SFP28 + 2 x 40/100 Gigabit QSFP28 - rack-mountable

3.2 Tbps bandwidth for high-speed data transmission
Supports a wide range of routing protocols including BGP and ECMP
48 x 10/100/1000 Base-T ports for extensive connectivity
Layer 3 switching capabilities for efficient network routing
Designed for high reliability with an MTBF of 379,400 hours

Op voorraad: 2 stuk(s)

Levertijd:

Product:
Cisco Nexus 92348GC-X - Switch

€ 4159,86 incl. 21% btw € 3437,90excl. 21% btw

Winkelwagen Offerte

Omschrijving

Cisco Nexus 92348GC-X - Switch - L3 - Managed - 48 x 10/100/1000 + 4 x 1/10/25 Gigabit SFP28 + 2 x 40/100 Gigabit QSFP28 - rack-mountable

Product features

Robust performance
With a bandwidth capacity of 3.2 Tbps, the Cisco Nexus 92348GC-X ensures efficient data flow and high-speed connectivity, making it suitable for demanding network environments.
Extensive connectivity
This switch offers a wide range of ports including 48 x 10/100/1000 Base-T, 4 x 1/10/25 Gbit LAN SFP28, and 2 x 100 Gbit/40 Gbit LAN QSFP28 ports, providing versatile connectivity options for various network requirements.
Advanced layer 3 switching
Featuring advanced Layer 3 switching capabilities, the Cisco Nexus 92348GC-X supports a variety of routing protocols including BGP, ECMP, IGMP, MSDP, and RIP-2, facilitating complex network topologies and efficient data routing.
High reliability
Designed for continuous operation, the switch boasts an impressive MTBF of 379,400 hours, ensuring long-term reliability and minimal downtime.
Environmental resilience
Operating within a wide temperature range and compliant with numerous standards, the Cisco Nexus 92348GC-X is built to perform in diverse environmental conditions, ensuring consistent operation.

Specificaties

General

Device Type

Switch - 48 ports - L3 - Managed

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

48 x 10/100/1000 + 4 x 1/10/25 Gigabit SFP28 + 2 x 40/100 Gigabit QSFP28

Performance

Bandwidth: 3.2 Tbps

Capacity

Longest prefix match (LPM) entries (IPv4): 16000
Longest prefix match (LPM) entries (IPv6): 20000
IPv4 routes (Multicast): 32000
Virtual interfaces (VLANs): 4096
Equal-Cost Multipathing (ECMP) ways: 64
Multiple Spanning Tree Protocol instances: 64
Rapid Per-VLAN Spanning Tree Plus instances: 507
Virtual Routing and Forwarding (VRF) entries: 16000
IGMP snooping entries: 32000
ACL entries (ingress): 4000
ACL entries (egress): 2000

MAC Address Table Size

96K entries

Routing Protocol

RIP-2, BGP, IGMP, MSDP, ECMP

RAM

8 GB

Flash Memory

16 GB

Status Indicators

Status

Expansion / Connectivity

Interfaces

48 x 10/100/1000 Base-T RJ-45
4 x 1/10/25Gbit LAN SFP28
2 x 100Gbit/40Gbit LAN QSFP28
1 x USB
1 x management RJ-45
1 x management SFP+
1 x serial (RS-232)

Power

Power Device

Internal power supply (not installed) - hot-plug

Max Supported Qty

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Voltage Required

AC 120/230 V (50/60 Hz)

Miscellaneous

MTBF

379,400 hours

Compliant Standards

CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, KN 61000-4, AS/NZS CISPR22 Class A

Dimensions & Weight

Width

43.9 cm

Depth

57.1 cm

Height

4.4 cm

Weight

6.4 kg

Manufacturer Warranty

Service & Support

Limited warranty - advance parts replacement - 1 year - response time: 10 days

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

5 - 85% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
