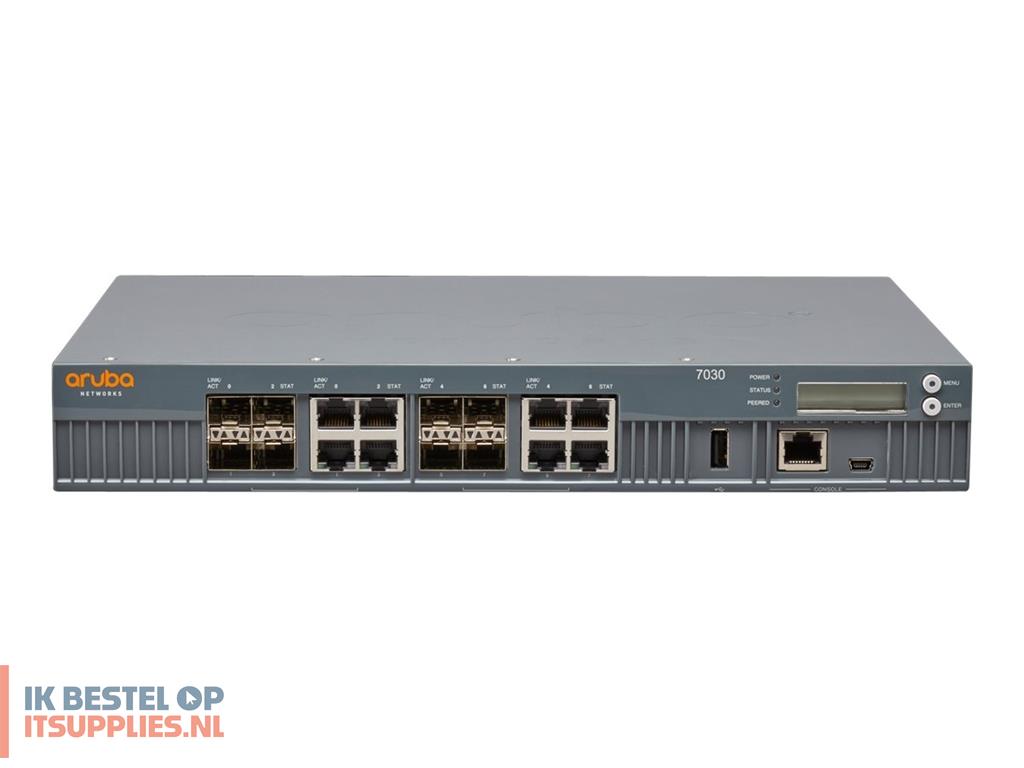

HPE Aruba 7030 (RW) FIPS/TAA-compliant Controller

Network management device

1U

Status LCD

30.5 cm

21.1 cm

4.4 cm

2.06 kg

Rest of World

Rack-mountable

Wired

Ethernet, Fast Ethernet, Gigabit Ethernet

AES throughput: 4.4 Gbps
Firewall throughput: 8 Gbps
3DES throughput: 2.4 Gbps

Maximum number of access points: 64
Concurrent devices: 4096
Virtual interfaces (VLANs): 4094
Concurrent GRE tunnels: 2048
Maximum number of access points (remote): 64
Concurrent tunneled ports: 2048
Concurrent IPSec sessions: 2048
Concurrent SSL fallback sessions: 2048
Active firewall sessions: 65536

Status, link/activity

VPN support, auto-negotiation, IPv6 support, IPv4 support

8 x 1000Base-T - RJ-45
8 x Ethernet 1000 - SFP (mini-GBIC)
1 x USB 2.0 - Type A
1 x management (USB)
1 x console - RJ-45

390,679 hours

C-Tick, CISPR 22 Class B, EN 61000-3-2, NOM, EN 61000-3-3, EN55022 Class B, CB, ICES-003 Class B, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, MIC, AS/NZS 3548, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1 Second Edition, KCC, ANATEL, cTUVus, FIPS, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class B, KN24, EN 55024: CISPR 24:2010

Yes

Internal power supply

55 Watt

Limited warranty - parts and labour - 1 year

0 °C

40 °C

5 - 95% (non-condensing)
