General
Device Type

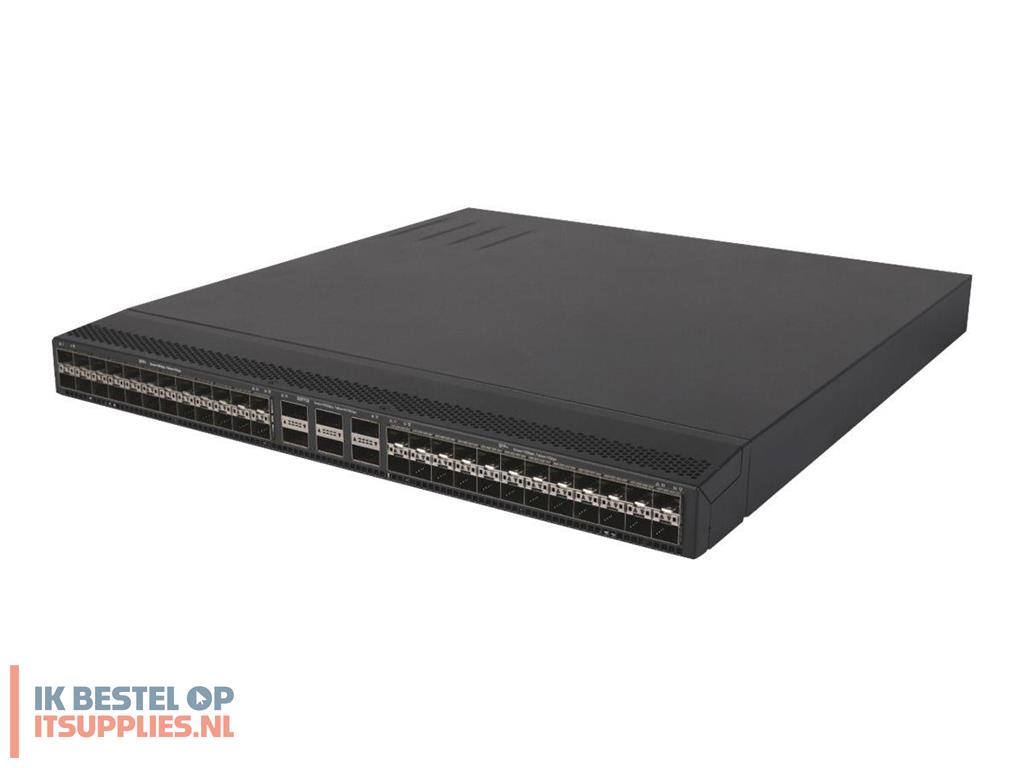

Switch - 48 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
100 Gigabit Ethernet
Ports
48 x 1 Gigabit / 10 Gigabit SFP+ + 6 x 100 Gigabit QSFP28
Performance
Routing/switching capacity: 720 Mbps ¦ Latency (10 Gbps): < 10 µs ¦ Throughput: 800 Gbps
Capacity
IPv4 routing table entries: 250000 ¦ IPv6 routing table entries: 128000
MAC Address Table Size
350K entries
Routing Protocol
OSPF, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, OSPFv3, static IPv6 routing, RIPng, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI
Authentication Method
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, DHCP support, ARP support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, SNTP support, Weighted Fair Queuing (WFQ), sFlow, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), Device Link Detection Protocol (DLDP) support, Equal-Cost Multipath (ECMP), LLDP support, Data Center Bridging (DCB), DHCP protection, Registered State Change Notification (RSCN) support, Name Server-based zoning, Strict Priority (SP), Edge Virtual Bridging (EVB), Intelligent Resilient Framework Technology (IRF), redundant fans, reverse airflow support, SNMP support, cut-through, FCoE support, In-Service Software Upgrade (ISSU), FCoE Initialization Protocol (FIP), IP source guard, Deficit Round Robin (DRR), VXLAN tunnel endpoints (VTEP) support, ICMP blocking
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg, IEEE 802.3ag, IEEE 802.3by
Expansion / Connectivity
Interfaces
48 x Gigabit / 10Gbit LAN SFP+ ¦ 6 x 100Gbit LAN QSFP28 ¦ 1 x serial (console) RJ-45 ¦ 1 x management (LAN) RJ-45 ¦ 1 x USB 2.0 ¦ 1 x mini-USB 2.0
Power
Power Device
Internal power supply - hot-plug
Voltage Required
AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, AS/NZS 60950-1, FCC Part 15, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI Class A, AS/NZS CISPR 22, EN 55022 Class A, EN 55024 Class A, EN 300 386, FDA 21 CFR, AS/NZS CISPR 32 Class A, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Dimensions & Weight (Shipping)
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90% (non-condensing)
