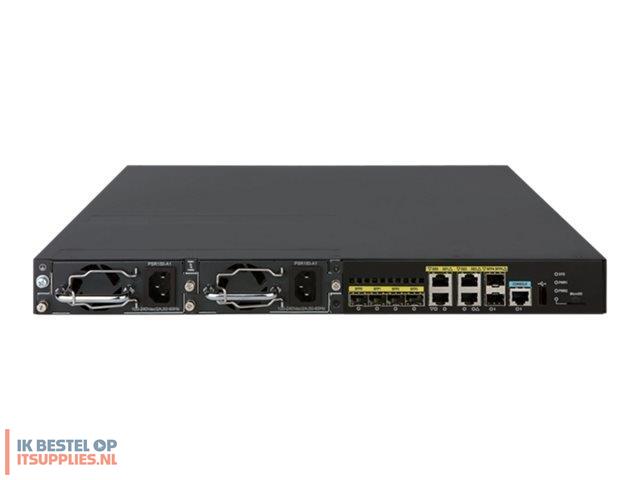

HPE FlexNetwork MSR3620-DP - Router

Router - 4-port switch (integrated)

Desktop - modular - 1U

Wired

Ethernet, Fast Ethernet, Gigabit Ethernet

1 Gbps

Throughput: 15 Mpps ¦ IPsec encrypted wired throughput: 3.3 Gbps

IPv4 routing table entries: 300000 ¦ IPv6 routing table entries: 300000 ¦ IPv4 forwarding table entries: 300000 ¦ IPv6 forwarding table entries: 300000

RMON 1, SNMP, Telnet

IPv6 support, FTP server, PoE+, IPv4 support, Dynamic Virtual Private Network (DVPN), SNMP support, Zero-touch provisioning (ZTP)

IEEE 802.3, AS/NZS 60950-1, FCC Part 68, CS-03, Laser Class 1, Laser Class 2, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, ANSI C63.4-2009, EN 60825-2, GB 9254-2008, EN 61000-3-3:2008, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-4-2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, GB 4943.1, EN 55024:2010, EN 61000-4-8:2010, EN 55022:2010, ICES-003 issue 5, VCCI V-3/2013.04, AS/NZS CISPR 22:2009, FDA 21 CFR, VCCI V-4/2012.04, EN 61000-4-3:2006, CAN/CSA-C22.2 No. 60950-1, EN 61000-4-4:2012

1 x

2 GB DDR3 SDRAM

512 MB

System, LAN, console, SFP, power 1, power 2, microSD

LAN: 4 x RJ-45/SFP ¦ WAN: 1 x RJ-45 ¦ USB 2.0: 1 x ¦ 1 x console - RJ-45

4 (total) / 4 (free) x Smart Interface Card (SIC) ¦ 2 (total) / 2 (free) x High-performance Multifunction Interface Module (HMIM) ¦ 1 (total) / 1 (free) x microSD

Internal power supply

2 (max)

AC 100-240 V (50/60 Hz)

Included

BTO

HP Intelligent Management Center

44 cm

47 cm

4.42 cm

9.7 kg

Limited warranty - 1 year

0 °C

45 °C

5 - 95% (non-condensing)
