General
Device Type

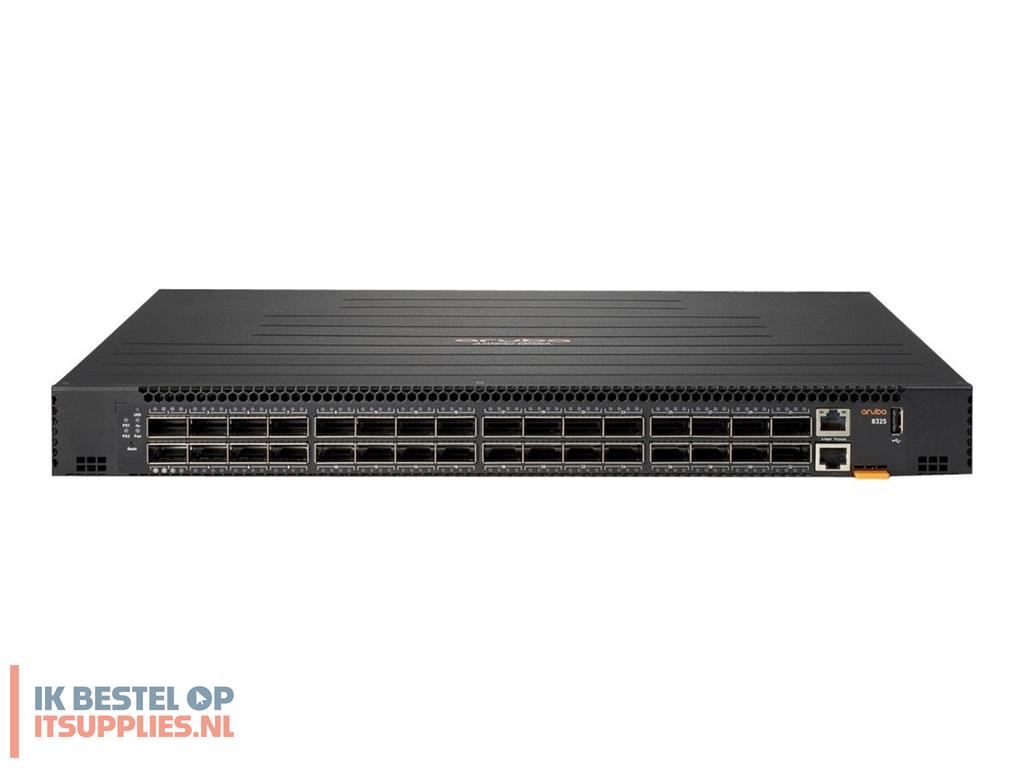

Switch - 32 ports - L3 - Managed
Enclosure Type
Back to front airflow rack-mountable 1U
Subtype
100 Gigabit Ethernet
Ports
32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+
Performance
Switching capacity: 6.4 Tbps ¦ Throughput: 1.905 Mpps ¦ Forwarding capacity: 2000 Mpps
Capacity
Virtual interfaces (VLANs) per port for 802.1q: 4040
MAC Address Table Size
98K entries
Routing Protocol
OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, Bidirectional Forwarding Detection (BFD), MLDv3, MSTP, RSTP, STP
Remote Management Protocol
SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP, NTP
Encryption Algorithm
FIPS 140-2
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), RADSEC
Features
Routing, DHCP support, VPN support, ARP support, load balancing, VLAN support, IGMP snooping, port mirroring, manageable, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), IPv4 support, Deficit Weighted Round Robin (DWRR), DHCP relay, Link Aggregation Control Protocol (LACP), Data Center Bridging (DCB), fan tray, dual firmware images, Strict Priority Queuing (SPQ), redundant hot swappable fans, packet storm protection, Strict Priority (SP), Loopback, Generic Routing Encapsulation (GRE), Ethernet Ring Protection Switching (ERPS), hot swappable 6 fans, VXLAN tunnel endpoints (VTEP) support, Priority-Based Flow Control (PFC), Bridge protocol data unit (BPDU), 32MB packet buffer, Virtual Extensible LAN (VXLAN), Ethernet Virtual Private Network (EVPN), fast leave, Network Timing Protocol (NTP), Private VLAN, Top-of-Rack (ToR), Protocol Independent Multicast (PIM), Cisco IOS IP Service-Level Agreements (IPSLA), Enhanced transmission selection (ETS), IPv4 and IPv6 dual stack, Virtual Switch Extension (VSX), Aruba Virtual Switching Framework (VSF), End of Row (EoR), Rapid PVST+ (RPVST+), DNS support, IGMP support, Unidirectional Link Detection (UDLD)
Compliant Standards
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX
Built-in Devices
64 GB SSD
Status Indicators
Port transmission speed
Expansion / Connectivity
Interfaces
32 x 100Gbit/40Gbit LAN QSFP28/QSFP+ ¦ 1 x management (LAN) RJ-45 ¦ 1 x console (micro-USB) ¦ 1 x console RJ-45 ¦ 1 x USB Type A
Power
Power Device
Internal power supply - hot-plug
Power Redundancy Scheme
N+1
Voltage Required
DC -36 V - -72 V
Electric Current Required
16.4 A
Miscellaneous
Included Accessories
6 x fans
Compliant Standards
RoHS, Laser Class 1, VCCI Class A, CNS 13438, CSA 22.2 No. 60950-1, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 55032:2012, IEC 60825-1:2007 Class 1, UL 60950-1 First Edition, EN 60825-1:2014, IEC 60825-1:2014, IEC 60950-1:2005 (ed.2)+A1:2009, EN 60950-1:2006+A11:2009+A1:2010+A12:2001+A2:2013
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
