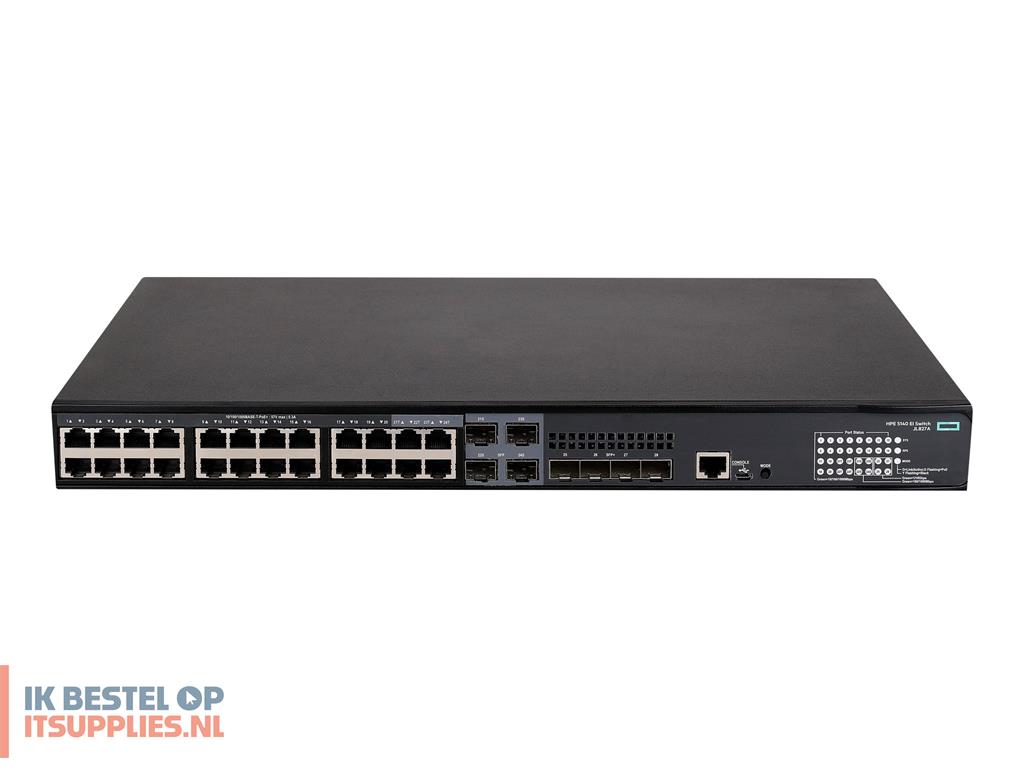

HPE FlexNetwork 5140 24G PoE+ 4SFP+ EI

Productcode: JL827A#ABB | EAN/UPC: 0190017500164

€ 2.535,72 excl.btw

HPE FlexNetwork 5140 24G PoE+ 4SFP+ EI - Switch - L3 - smart - 24 x 10/100/1000 (PoE+) + 4 x combo 10/100/1000Base-T (PoE+) / 100/1000Base-X SFP + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ - rack-mountable - PoE+ (370 W)

Gigabit Ethernet access switch with static layer 3 routing, RIP, high-density 10GbE uplinks, and POE+ models for voice, video, and wireless
Supports IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices, enhancing network redundancy and resource utilization
Includes embedded network management capabilities with Smart Management Center (SmartMC)
Includes energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports

Op voorraad: 2 stuk(s)

Levertijd:

Product:
HPE FlexNetwork 5140 24G PoE+ 4SFP+ EI

€ 3068,22 incl. 21% btw € 2535,72excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Product features

Scalability and high availability
The HPE FlexNetwork 5140 EI Switch Series delivers scalability and enhances reliability of the network with HPE Intelligent Resilient Fabric (IRF) technology. IRF stacking enables virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router. IRF stacking enhances performance and reliability with uninterrupted L2 switching and L3 forwarding and reduces operational complexity with simpler, flatter, and more agile networks. Four fixed uplinks (SFP, SFP+, and 10GBASE-T) deliver performance for bandwidth intensive applications. Link redundancy with support for protocols such as Spanning Tree/MSTP, RSTP, and Smart link provides high availability.
Comprehensive security control
The HPE FlexNetwork 5140 EI Switch Series supports flexible authentication methods including 802.1X and MAC Authentication for greater security and policy-driven application authentication. Per-user access control lists (ACLs) provide identity-driven security and access control. ACLs provide IP Layer 2 to Layer 4 traffic filtering while supporting global ACL, VLAN ACL, port ACL, and IPv6 ACL. Dynamic ARP protection with functions such as ARP Detection and ARP packet validation block broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data. Centralized security policy management and network protection with HPE Intelligent Management Center (IMC) End User Admission Domination (EAD) integrate security policies, network access control, and access right control policies to form a cooperative security system. Enhance security with encryption of access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3, and other features including DHCP protection, IP source guard, and RADIUS/HWTACAS.
Simplified management
The HPE FlexNetwork 5140 EI Switch Series can be seamlessly managed with HPE Intelligent Management Center (IMC) to provide end-to-end network transparency with a consistent network experience through comprehensive configuration, compliance, and policy management. It supports SmartMC, an embedded network management tool with a web-based GUI to simplify operations and facilitate centralized management. It offers features such as configuration backup, software version management and seamless switch replacement. RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
Enhanced quality of service
The HPE FlexNetwork 5140 EI Switch Series supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information, it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or entire switch. Traffic prioritization with supported congestion actions includes: strict priority (SP) queuing, weighted round robin (WRR), weighted random early detection (WRED), and SP+WRR and traffic policing with Committed Access Rate (CAR) and line rate. Reduce unwanted network traffic with broadcast control and limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic.

Specificaties

General

Device Type

Switch - 28 ports - L3 - smart

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 (PoE+) + 4 x combo 10/100/1000Base-T (PoE+) / 100/1000Base-X SFP + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+

Power Over Ethernet (PoE)

PoE+

PoE Budget

370 W

Performance

Latency (1000 Mbps): 5 µs
Latency (10 Gbps): 3 µs
Throughput: 96 Mpps
Routing/switching capacity: 128 Gbps

Capacity

IPv4 routing table entries: 512
IPv6 routing table entries: 256
VLAN IDs: 4094

MAC Address Table Size

16384 entries

Jumbo Frame Support

9216 bytes

Routing Protocol

OSPF, RIP-1, RIP-2, IGMP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, CIDR

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI, NTP, ICMP, RADIUS

Encryption Algorithm

SSL

Authentication Method

RADIUS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS

Features

Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, High Availability, half duplex mode, full duplex mode, sFlow, STP support, RSTP support, VRRP support, MSTP support, ACL support, QoS, CAR, DHCP server, MLD snooping, DLDP support, STP Root Guard, DHCP relay, LACP, Port Security, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, SPQ, port isolation, GARP, OpenFlow support, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, Ethernet OAM, proxy ARP, WRR, IRF Technology, BPDU protection, UDP support, MRP

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r

RAM

512 MB SDRAM

Flash Memory

256 MB

Status Indicators

Port status, system

Expansion / Connectivity

Interfaces

24 x 1000Base-T RJ-45 PoE+
4 x 1000Base-X SFP
4 x 1000Base-X/10GBase-X SFP+
1 x console RJ-45 management
1 x micro-USB 5 pin USB header management

Power

Power Device

Internal power supply

Power Provided

451 Watt

Voltage Required

AC 100-240 V (50/60 Hz)

Miscellaneous

Rack Mounting Kit

Included

Compliant Standards

Plug and Play, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, WEEE, EN 60825-1, FCC Part 15 B Class A, EN 60825-2, IPv6 Ready, EN 300 386, FDA 21 CFR, AS/NZS CISPR 32 Class A, YD/T993, IEC 62368-1, EN 55032, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, ETSI EN 300 386, EN 62368-1:2014/A11:2017, GB/T9254

Localisation

English / Europe

Dimensions & Weight

Width

44 cm

Depth

26 cm

Height

4.36 cm

Weight

8 kg

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

45 °C

Humidity Range Operating

10 - 90% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

Humidity Range Storage

5 - 95% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
