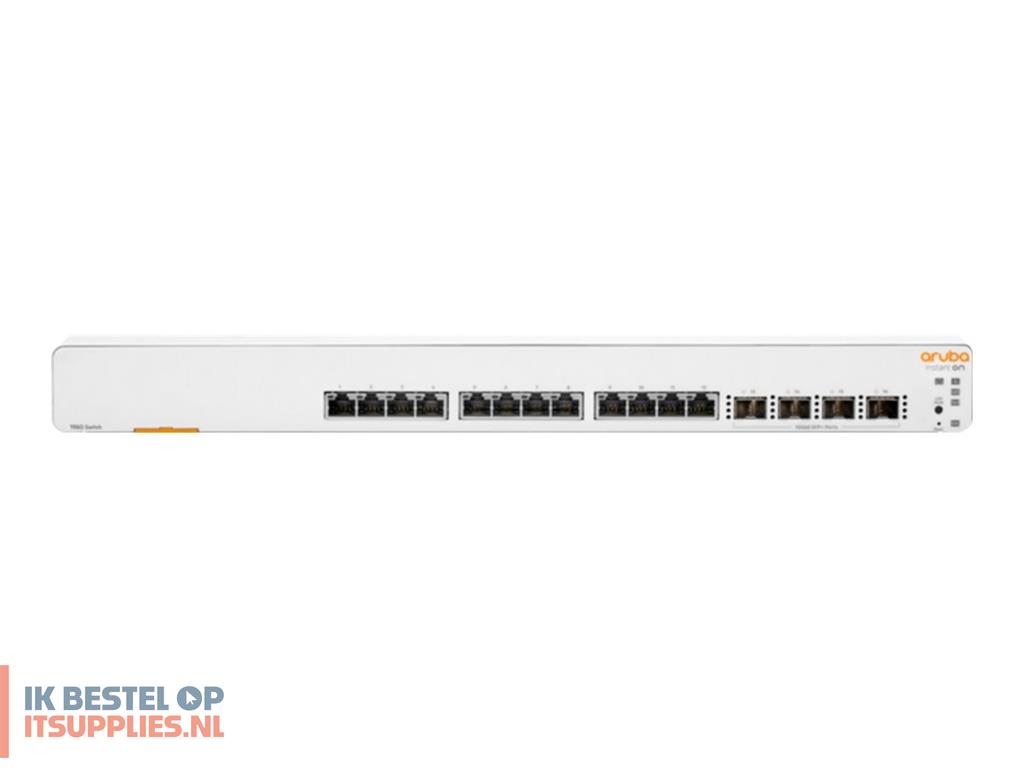

HPE Networking Instant On 1960 12XGT 4SFP+ Switch

Switch - 12 ports - Managed

Rack-mountable 1U

10 Gigabit Ethernet

12 x 100/1000/10000 + 4 x 10 Gigabit SFP+

Throughput: 238 Mpps
Switching capacity: 320 Gbps
Latency (100 Mbps): 7.4 µs
Latency (1 Gbps): 4.2 µs
Latency (10 Gbps): 1.1 µs

MAC address entries: 16000
IPv4 routes (static): 512
IPv6 routes (static): 512

16000 entries

9216 bytes

Static IP routing

SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS

RADIUS

Flow control, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, STP support, ACL support, TPM, LACP, CoS, EEE, BPDU Filter, auto voice VLAN, LLDP-MED

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP)

1 x ARM: 2 GHz

Port status, power

12 x 10/100/1000 Base-T RJ-45
4 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+

Internal power supply

AC 100-240 V (50/60 Hz)

88.8 years

EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, EN 55032:2015 Class A, CISPR 32:2015 Class A, UL 62368-1, EN 55035, CISPR 35, IEC/EN 60825-1:2014 Class 2, IEC/EN 62368-1, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018

BTO

44.25 cm

35.05 cm

4.395 cm

4.3 kg

Limited warranty - lifetime

0 °C

40 °C

15 - 95% (40 °C)

-40 °C

70 °C
