General
Device Type

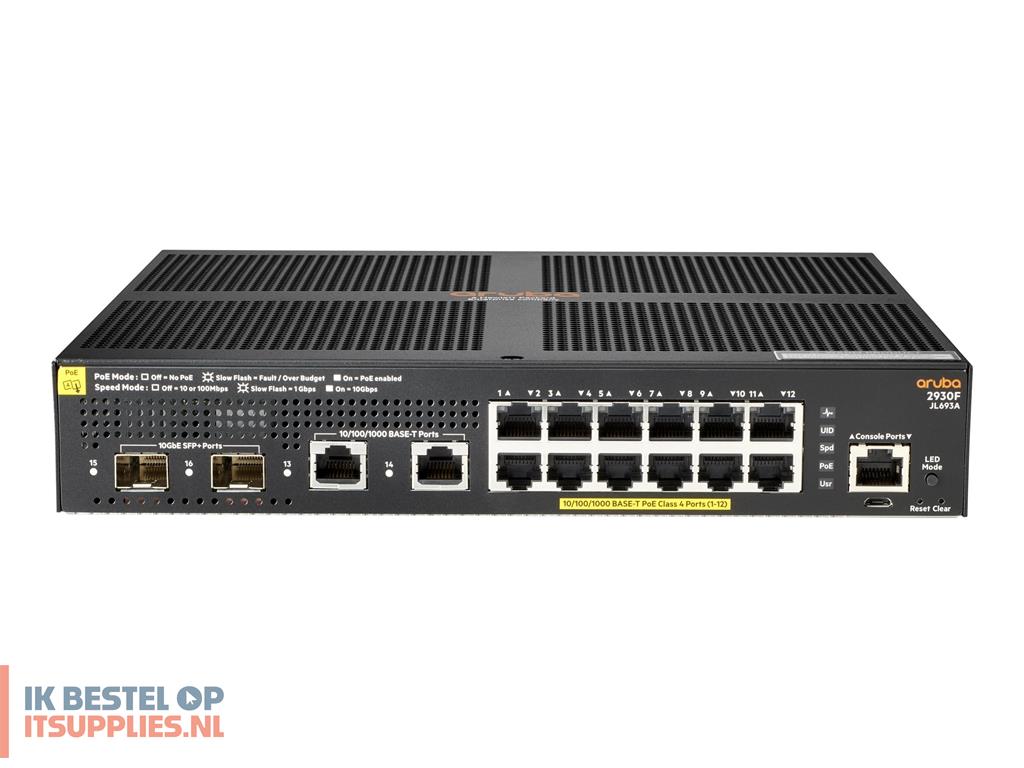

Switch - 12 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Ports
12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) + 2 x 10/100/1000
Power Over Ethernet (PoE)
PoE+
Performance
Throughput: 41.7 Mpps
Switching capacity: 68 Gbps
Latency (1 Gbps): 3.8 µs
Latency (10 Gbps): 1.6 µs
Capacity
Jumbo frame size: 9220
IPv4 routing table entries: 2000
IPv6 routing table entries: 1000
MAC Address Table Size
32K entries
Routing Protocol
OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SSH, SSH-2, CLI, XRMON
Encryption Algorithm
MD5, SSL
Authentication Method
RADIUS, PAP, CHAP, TACACS, TACACS+
Features
Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, STP support, MSTP support, TFTP support, ACL support, QoS, Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, UDLD, LLDP support, DHCP relay, LACP, MIB, MAC address lockout, dynamic ARP protection, DHCP protection, GVRP, MVRP, NDP, CoS, SNMP support, ToS, OpenFlow support, CPU protection, ICMP, ICMP Router Discovery Protocol (IRDP), VXLAN, MIB II
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor
1 x ARM Cortex-A9: 1.016 GHz
Expansion / Connectivity
Interfaces
12 x 1000Base-T RJ-45 PoE+
2 x Gigabit / 10Gbit LAN SFP+
1 x serial (console)
2 x 1000Base-T RJ-45
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Installed Modules Qty (Max)
0 (installed) / 2 (max)
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Localisation
English / Europe
Software / System Requirements
Software Included
Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 95% (non-condensing)
