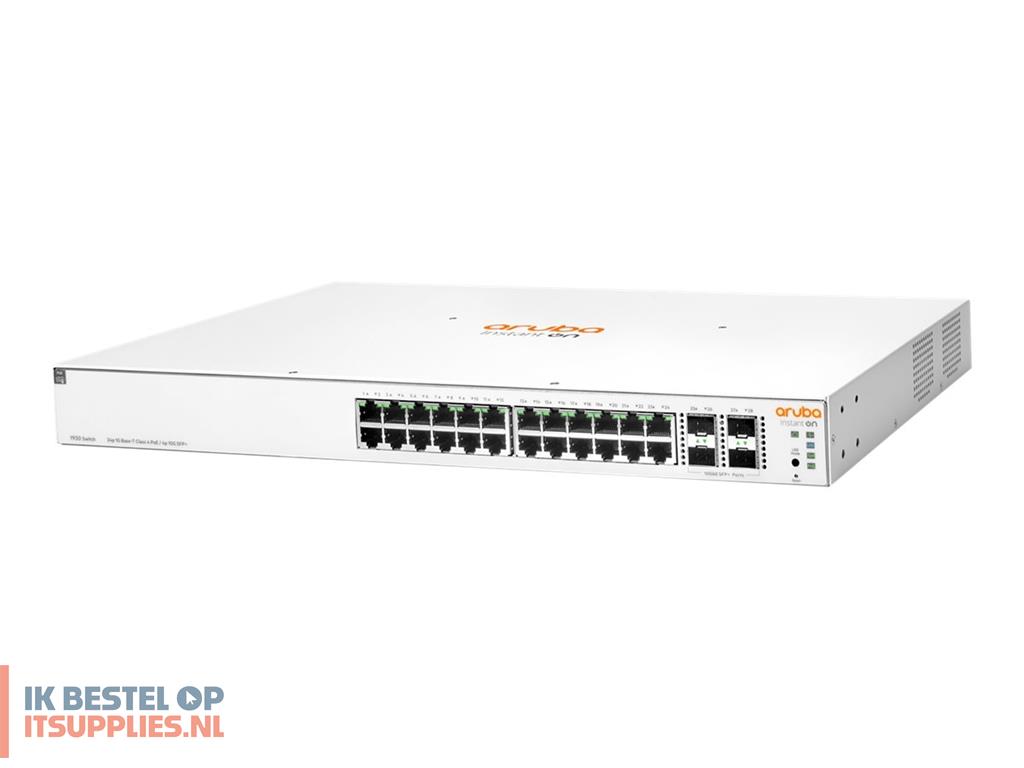

HPE Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch

Productcode: JL684A | EAN/UPC: 0190017355863

€ 528,84 excl.btw

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch - Switch - L3 - Managed - 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable - PoE (370 W)

24 PoE ports and 4 SFP+ ports for extensive connectivity options
128 Gbps switching capacity and 95.23 Mpps throughput for high-speed data transmission
Supports ENERGY STAR Ethernet and PoE, optimizing power usage
Advanced security features including ACL, SSL, and RADIUS authentication
Manageable via multiple protocols, ensuring flexible network administration

Op voorraad: 3 stuk(s)

Levertijd:

Product:
HPE Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch

€ 639,90 incl. 21% btw € 528,84excl. 21% btw

Winkelwagen Offerte

Omschrijving

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch - Switch - L3 - Managed - 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable - PoE (370 W)

Product features

Enhanced connectivity
With 24 10/100/1000 Base-T PoE ports and 4 1/10 Gbit LAN SFP+ ports, this switch offers a wide range of connection options for various networking needs, ensuring high-speed data transfer and efficient power distribution.
Robust performance
Boasting a switching capacity of 128 Gbps and a throughput of 95.23 Mpps, the switch ensures smooth data flow and minimal latency, with specific figures of 2.4 µs for 1 Gbps and 1.3 µs for 10 Gbps, facilitating efficient network operations.
Advanced security
Equipped with Access Control List (ACL) support, SSL encryption, and RADIUS authentication, this switch provides a secure networking environment, safeguarding data integrity and restricting unauthorized access.
Energy efficient
Featuring ENERGY STAR Ethernet and a PoE budget of 370 W, the switch optimizes power usage, reducing operational costs while supporting devices requiring Power over Ethernet.
Comprehensive management
Manageable via HTTP, HTTPS, SNMP, and RMON, this switch offers versatile management options for network administrators, enabling efficient monitoring and control over the network's performance and security.

Specificaties

General

Device Type

Switch - 28 ports - L3 - Managed

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+

Power Over Ethernet (PoE)

PoE

PoE Budget

370 W

Performance

Switching capacity: 128 Gbps
Throughput: 95.23 Mpps
Latency (1 Gbps): 2.4 µs
Latency (10 Gbps): 1.3 µs

Capacity

Link aggregation ports: 8
IPv4 routes (static): 32
VLANs supported: 256
Access Control Entries (ACEs) per ACL: 480
Packet buffer size: 1.5 MB

MAC Address Table Size

16000 entries

Jumbo Frame Support

9216 bytes

Routing Protocol

Static IP routing

Remote Management Protocol

SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS

Encryption Algorithm

SSL

Authentication Method

RADIUS

Features

Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af

Processor

1 x ARM Cortex-A9: 800 MHz

RAM

512 MB SDRAM

Flash Memory

256 MB

Status Indicators

Port status, power, PoE

Expansion / Connectivity

Interfaces

24 x 10/100/1000 Base-T RJ-45 PoE - 370 W
4 x 1/10Gbit LAN SFP+

Power

Power Device

Internal power supply

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

439 Watt

Miscellaneous

MTBF

71 years

Compliant Standards

CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN 55024:2010, CISPR 35, SSL, EN 55035:2017

Dimensions & Weight

Width

44.25 cm

Depth

26.47 cm

Height

4.39 cm

Weight

3.67 kg

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

15 - 95% (40 °C)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

Humidity Range Storage

15 - 95% (60 °C)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
