General
Device Type

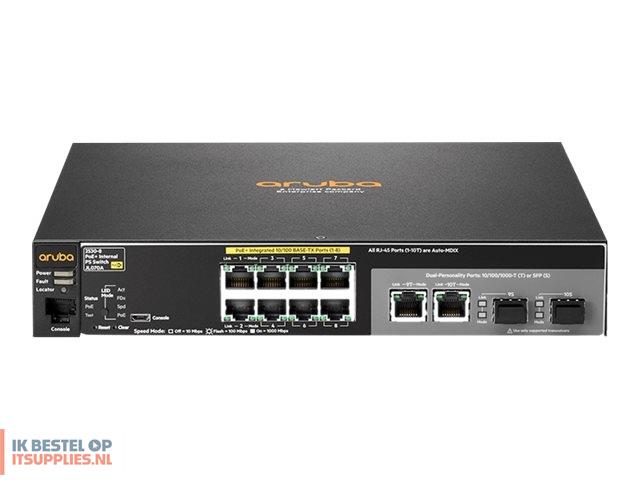

Switch - 8 ports - Managed
Enclosure Type
Desktop, rack-mountable, wall-mountable 1U
Ports
8 x 10/100 (PoE+) + 2 x combo Gigabit Ethernet/Gigabit SFP
Power Over Ethernet (PoE)
PoE+
Performance
Throughput (64-byte packet size): 4.1 Mpps
Switching capacity: 5.6 Gbps
MAC Address Table Size
16000 entries
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
DHCP support, sFlow, ACL support, QoS, Rapid PVST+, DWRR, LLDP support, CoS
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor
1 x ARM: 800 MHz
Expansion / Connectivity
Interfaces
8 x 100Base-TX PoE+
2 x Gigabit LAN SFP
2 x Gigabit LAN RJ-45
1 x management (micro-USB) Type B
1 x management RJ-45
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards
FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, CSA C22.2 No. 60950-1, VCCI Class A
Localisation
English / Europe
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - advance parts replacement - lifetime - response time: next business day
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 90% (non-condensing)
