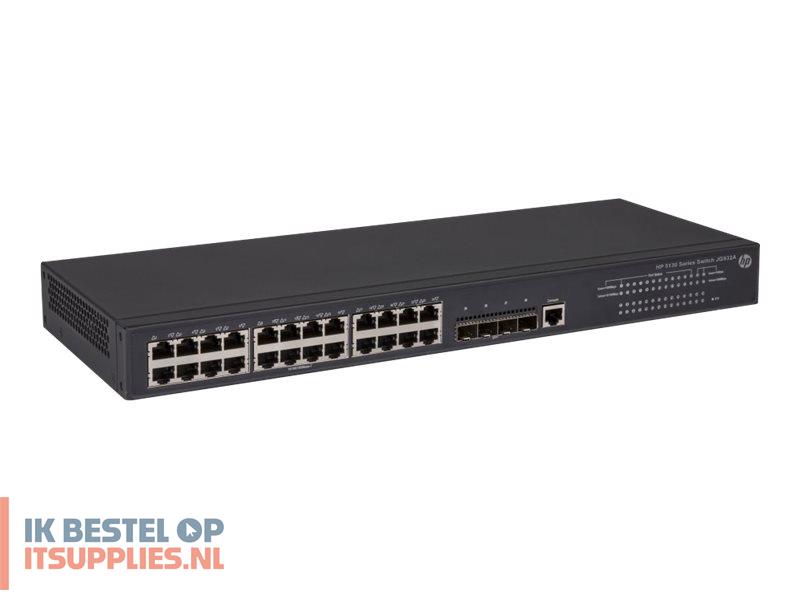

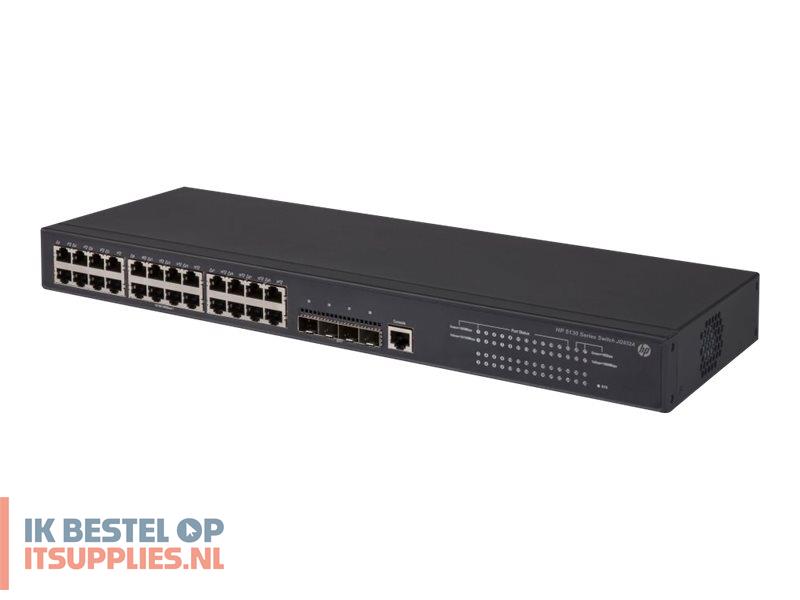

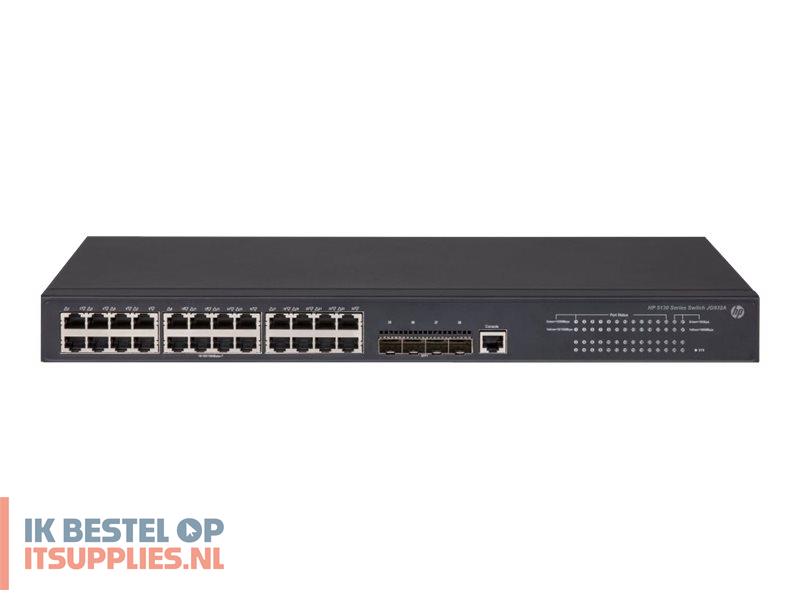

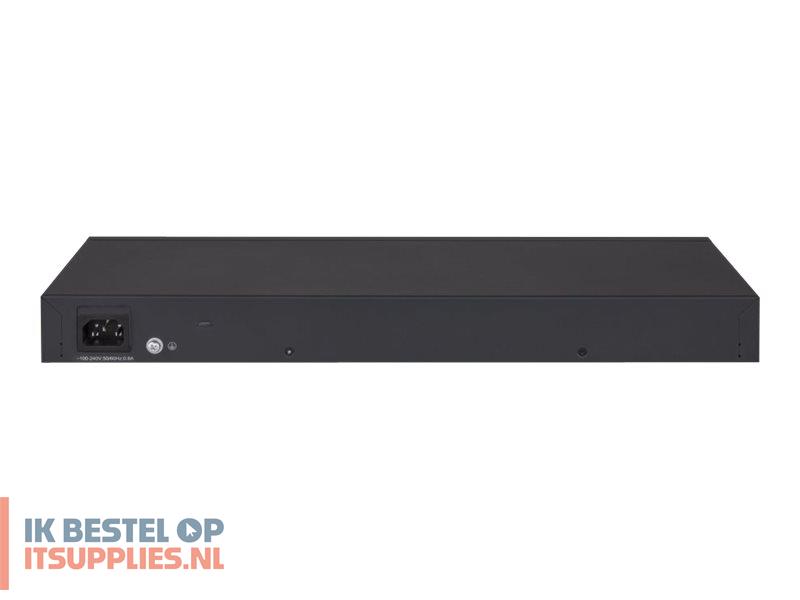

HPE 5130-24G-4SFP+ EI - Switch

Switch - 24 ports - L3 - Managed - stackable

Rack-mountable 1U

Gigabit Ethernet

24 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+

Throughput: 96 Mpps
Routing/switching capacity: 128 Gbps

IPv4 routing table entries: 512
IPv6 routing table entries: 256

16K entries

9216 bytes

Static IPv4 routing, static IPv6 routing

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI

SSL

RADIUS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS

DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, WRR queuing, IPv6 support, sFlow, RSTP support, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, PVST+, DLDP support, RRPP, EAD, STP Root Guard, LLDP support, DHCP relay, Port Security, dynamic ARP protection, DHCP protection, SPQ, port isolation, tagged VLAN, GARP, IRF technology

IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP)

1 GB SDRAM

128 MB

24 x 1000Base-T RJ-45
4 x Gigabit / 10Gbit LAN SFP+
1 x console RJ-45 management

Internal power supply

AC 120/230 V

26 Watt

98.1 years

FCC Class A certified, CISPR 22 Class A, CISPR 24, NOM, EN55024, EMC, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, ANATEL, FDA, EN 60825-1, EN 61000-4-29, ANSI C63.4-2009, VCCI V-3 Class A ITE, EN 61000-3-3:2008, VCCI V-4, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, IEC 61000-4-3:2006, EN 55022:2010 Class A, EN 300 386, EN 61000-4.4:2012, CAN/CSA-C22.2 No. 60950-1

44 cm

16 cm

4.36 cm

5 kg

Limited warranty - replacement - lifetime - response time: next business day
Technical support - phone consulting - 3 years

0 °C

45 °C

10 - 90% (non-condensing)

-40 °C

70 °C

5 - 95% (non-condensing)
