General
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol
IPSec, PPPoE, DHCP, DNS, L2TPv3
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Remote Management Protocol
SNMP, RMON, CLI
Authentication Method
RADIUS
Features
CBWFQ, WRED, ACL support, QoS, DMVPN, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM
Compliant Standards
IEEE 802.1Q, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1, EN 60950-1, VCCI V-3, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, EN 300 386, IEC 60950-1 First Edition, CAN/CSA-C22.2 No. 60950-1, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
Expansion / Connectivity
Interfaces

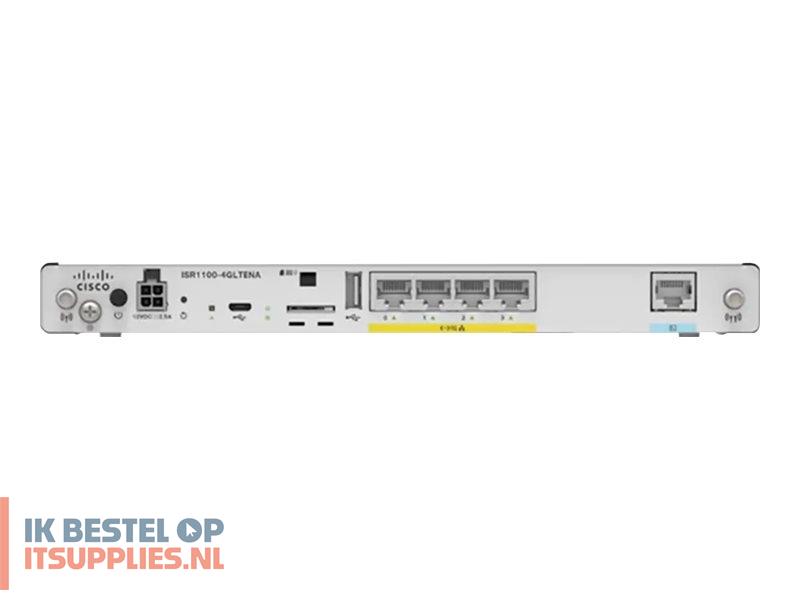

LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45
USB 3.0: 1 x
Power
Power Device
External power adapter - 30 Watt
Voltage Required
AC 120/230 V / DC 12 V (50/60 Hz)
Power Consumption Operational
30 Watt
Miscellaneous
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - advance parts replacement - 1 year - response time: 10 days
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
70 °C
Humidity Range Operating
5 - 95%
