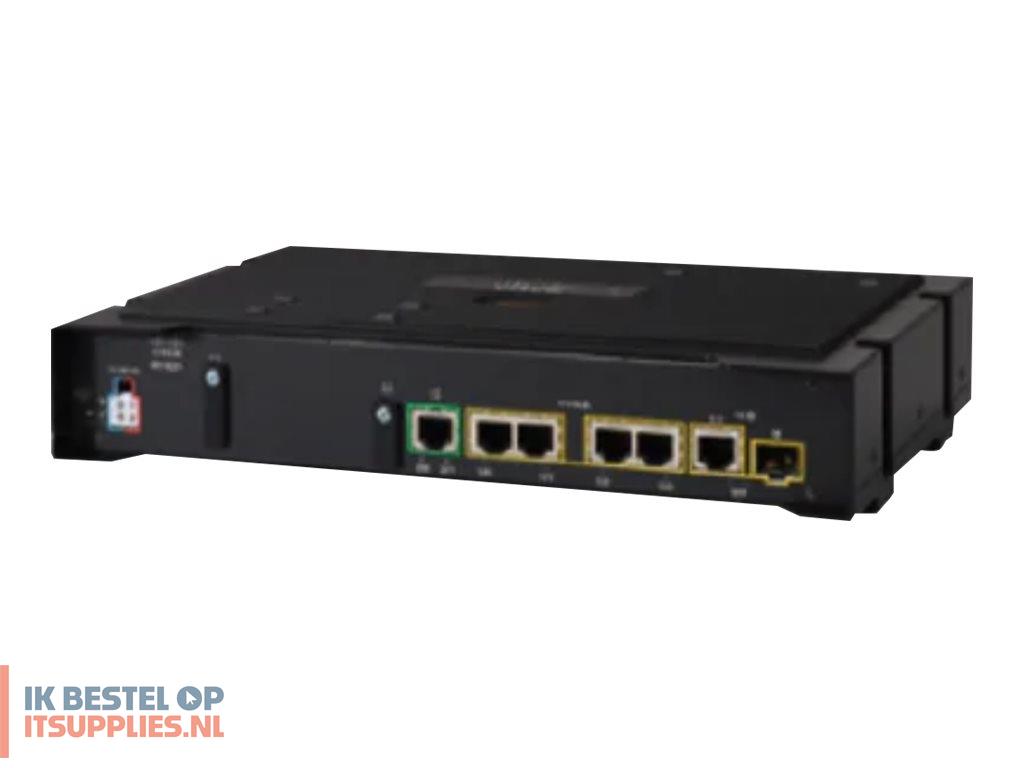

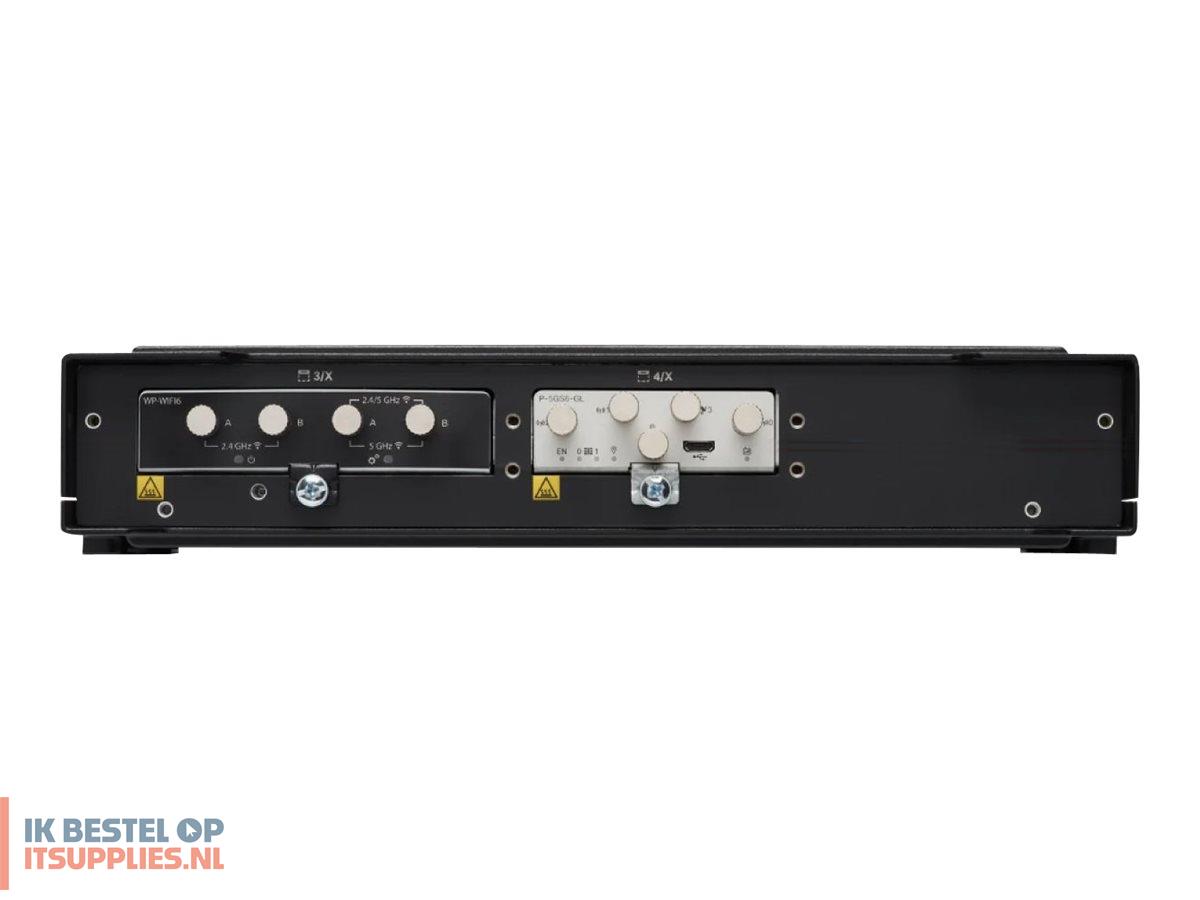

Cisco Catalyst Rugged Series IR1821

Router - 4-port switch (integrated)

DIN rail mountable, wall-mountable, desktop

Wired

Ethernet, Fast Ethernet, Gigabit Ethernet

DIN rail mountable, rugged

IP40, SAE J1455, MIL-STD 810G, CISPR 25, ISO 7637-2, ISO 11452-2/4, CSA 213, EN 60079-0, EN 60079-15, EN 60079-7, IEC 60079-0, IEC 60079-15, IEC 60079-7, UL 121201, UL/CSA 60079-0, UL/CSA 60079-15, UL/CSA60950-1, IEC/EN 60950-1, IEC/EN 62368-1, FCC CFR47 Part 15 B Class A, EN 55032/CISPR 32 Class A, AS/CA S042.1, AS/CA S042.4, AS/NZ ACMA EMR, AS/NZS 4268, AS/NZS CISPR 32 Class A, CISPR 11 class A, CISPR 35, CNS 13438 Class A, EN 300 328, EN 300 386, EN 301 489-1, EN 301 489-19, EN 301 489-52, EN 301 511, EN 301 893, EN 301 908-1, EN 301 908-13, EN 301 908-2, EN 303 413, EN 55035, EN 62311, FCC CFR47 Part 2, FCC CFR47 Part 22, FCC CFR47 Part 24, FCC CFR47 Part 27, FCC Part 15.247, FCC Part 15.407, ICES-003 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-9, KN32 Class A, LP0002, MIC Article 2, 9, RSS-102, RSS-132, RSS-133, RSS-247, VCCI Class A, UL 62368-1, CSA 62368-1

4 GB

4 GB

System, power, port status, SFP, management

WAN: 1 x 1000Base-T - RJ-45
WAN: 1 x 1000Base-X - SFP (mini-GBIC)
USB 2.0: 1 x 4 pin USB Type A
Serial: 1 x RS-232 - RJ-45
LAN: 4 x 1000Base-X - RJ-45
Console: 1 x USB 2.0 - mini-USB Type A

1 (total) / 1 (free) x Pluggable Interface Module (PIM)
1 (total) / 1 (free) x Wide pluggable slot (Wi-Fi)

DC 9 - 36 V

23 Watt

28.04 cm

20.47 cm

5.59 cm

2.4 kg

Limited warranty - 3 years

-40 °C

60 °C
