General
Device Type

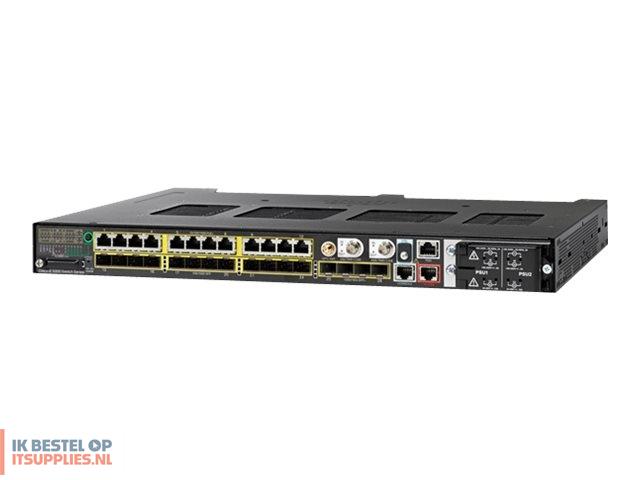

Switch - 28 ports - Managed
Enclosure Type
Rack-mountable 1U
Ports
16 x Gigabit SFP + 12 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
Capacity
Virtual interfaces (VLANs): 1005
IGMP groups: 1000
NAT entries: 128
MAC Address Table Size
16K entries
Routing Protocol
OSPF, BGP-4, IS-IS, RIP-2, EIGRP, IGMPv2, HSRP, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, policy-based routing (PBR), RIPng, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI, SCP
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+
Features
NAT support, BOOTP support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, DHCP snooping, QoS, DOM support, DHCP server, VRF-Lite, DAI, BFD, UDLD, LLDP support, LACP, Port Security, RSPAN, HSRP support, MIB, CoS, 802.1x authentication, PTP, IGMP filtering, PROFINET v2, IP source guard, Flex Link support, REP, PRP, VTP, BPDU, ICMP, bidirectional
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2, IEEE 1613
Built-in Devices
SD card reader
Expansion / Connectivity
Interfaces
12 x 1000Base-X SFP
12 x 1000Base-T RJ-45 PoE+
4 x SFP uplink
1 x mini-USB Type B
1 x console RJ-45
1 x aerial input
Expansion Slots
1 (total) / 0 (free) x SD Memory Card
Power
Power Redundancy Scheme
1+1
Power Consumption Operational
90 Watt
Miscellaneous
Included Accessories
1 GB SD card
Compliant Standards
CISPR 22 Class A, CISPR 24, EN55024, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, IEC 60068-2-1, IEC 60068-2-14, EN 50121-4, IP30, NOM-019-SCFI-1998, VCCI Class A, KN22, KN24, China RoHS, EN 50121-3-2, EN 60529, EN 61326, AS/NZS CISPR22:2004 Class A, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC 60068-2-3, EN 61373, ISO 9223, CNS13438:2006 Class B, EN 55022 Class A, EN 50155
Software / System Requirements
Software Included
Cisco IOS LAN Base
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - advance parts replacement - 5 years - response time: 10 days
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
74 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Storage
5 - 95% (non-condensing)
