General
Device Type

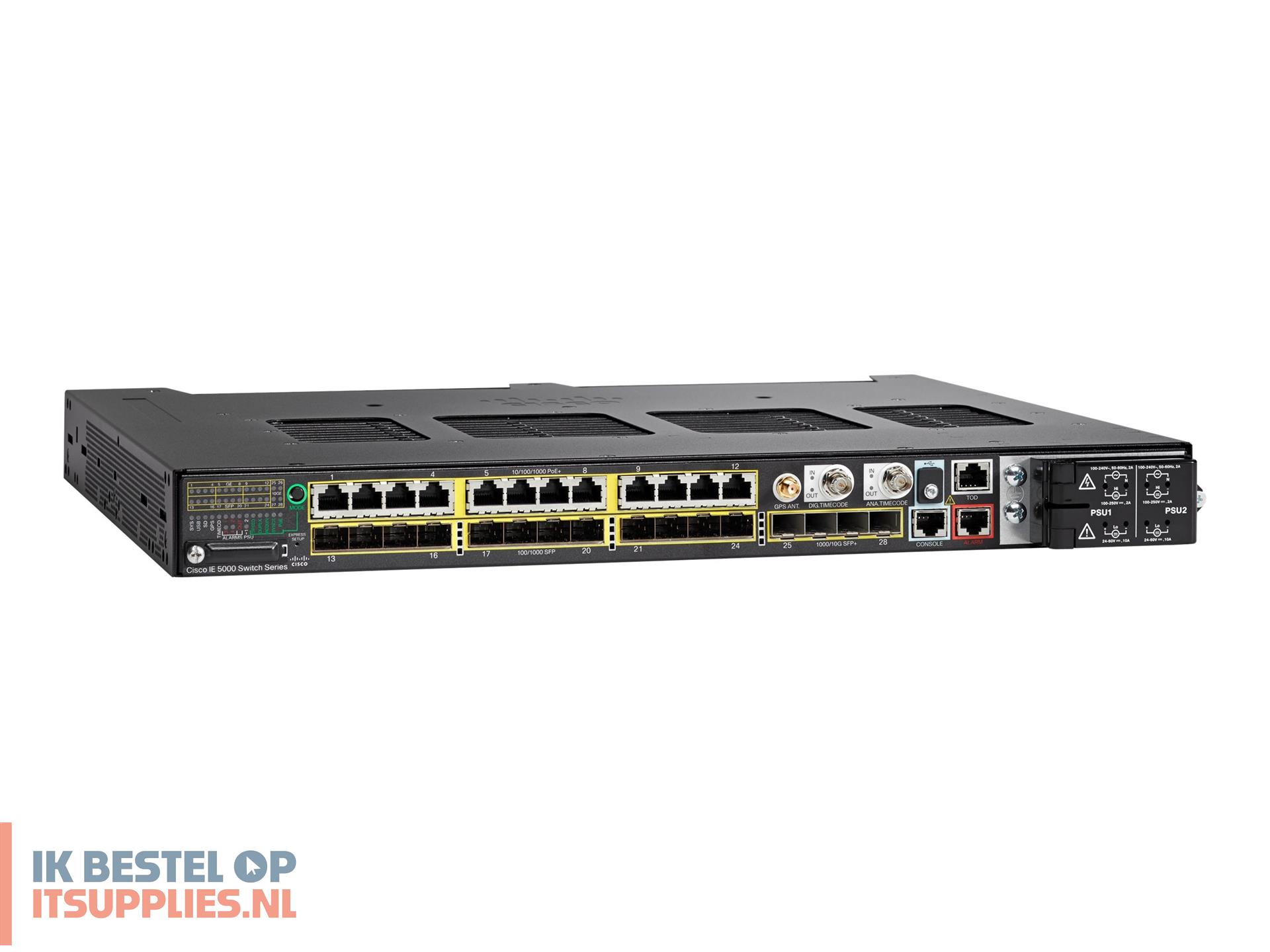

Switch - 28 ports - Managed - stackable
Enclosure Type
Rack-mountable 1U
Ports
4 x 1 Gigabit / 10 Gigabit SFP+ + 12 x Fast Ethernet/Gigabit SFP + 12 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
Performance
Forwarding bandwidth: 64 Gbps
Switching bandwidth: 128 Gbps
Forwarding rate: 95.238 Mpps
Capacity
RADIUS clients: 4
IGMP groups: 1000
VLANs supported: 1005
NAT translations: 256
MAC Address Table Size
16K entries
Routing Protocol
OSPF, BGP-4, IS-IS, RIP-2, EIGRP, IGMPv2, HSRP, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, policy-based routing (PBR), RIPng, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI, SCP
Encryption Algorithm
MODBUS
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+
Features
Layer 3 switching, Layer 2 switching, NAT support, ARP support, IGMP snooping, Syslog support, Broadcast Storm Control, IPv6 support, full duplex mode, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, DHCP snooping, QoS, DOM support, DHCP server, VRF-Lite, DAI, BFD, UDLD, fanless, LLDP support, Port Security, RSPAN, MIB, static routing, 802.1x authentication, SNMP support, MACsec support, IGMP filtering, OCXO, PROFINET v2, EtherNet/IP CIP Messaging, IP source guard, Flex Link support, REP, SmartPort technology, PRP, TrustSec support, CIP Sync (IEEE 1588), NTP, IGMP querier, VLAN Double Tagging (Q-in-Q), Voice VLAN, Private VLAN, Guest VLAN, STP BPDU Guard
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2, IEEE 1613
Built-in Devices
SD card reader
Expansion / Connectivity
Interfaces
4 x 10GBase-X SFP+ uplink
12 x 1000Base-X SFP
12 x 1000Base-T RJ-45 PoE+
1 x mini-USB
1 x console RJ-45
1 x aerial input
1 x ToD
1 x alarm RJ-45
Expansion Slots
1 (total) / 0 (free) x SD Memory Card
Power
Power Device
Internal power supply (not installed)
Power Redundancy Scheme
1+1
Power Consumption Operational
90 Watt
Miscellaneous
Included Accessories
1 GB SD card
Compliant Standards
CISPR 22 Class A, CISPR 24, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-14, EN 50121-4, VCCI Class A, KN22, KN24, China RoHS, EN 50121-3-2, EN 61326, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC 60068-2-3, EN 61373, ISO 9223, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, AS/NZS CISPR 24, IEC 60079, NOM-019-SCFI, IEEE 1588, IEEE 1613 Class 2, EN 60068-2-52, EN 60068-2-60
Software / System Requirements
Software Included
Cisco LAN Base software
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
0 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Storage
0 - 95% (non-condensing)
