General
Device Type

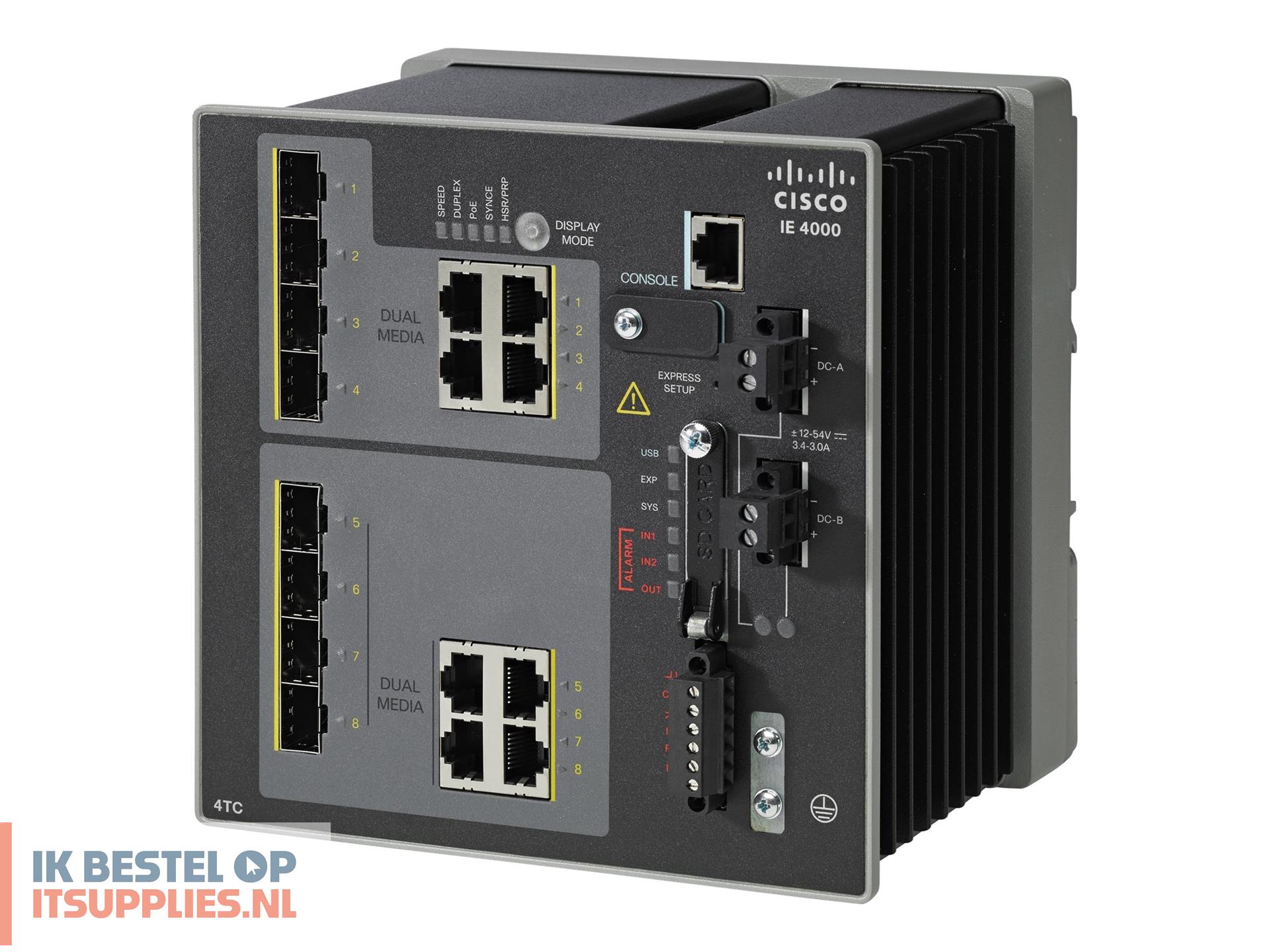

Switch - 8 ports - Managed
Enclosure Type
DIN rail mountable
Ports
4 x combo SFP + 4 x combo Gigabit SFP
Capacity
Virtual interfaces (VLANs): 1000
IGMP groups: 1000
MAC Address Table Size
16K entries
Routing Protocol
Static IPv4 routing
Remote Management Protocol
SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, HTTP, SSH, CLI
Authentication Method
RADIUS, TACACS+
Features
NAT support, BOOTP support, trunking, VLAN support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, DHCP snooping, TFTP support, QoS, DHCP server, DAI, BFD, UDLD, DHCP relay, Port Security, MAC Address Notification, RSPAN, NTP time synchronisation, CoS, PTP, IGMP filtering, PROFINET v2, IP source guard, Flex Link support, REP, SmartPort technology, PRP
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 1588v2, IEEE 1613
Expansion / Connectivity
Interfaces
4 x 100Base-TX RJ-45
4 x 1000Base-T RJ-45 uplink
4 x SFP uplink
1 x mini-USB Type B
1 x console RJ-45
4 x SFP
Expansion Slots
1 (total) / 0 (free) x SD Memory Card
Power
Voltage Required
DC 9.6 - 60 V
Electric Current Required
4.3 A
Power Consumption Operational
40 Watt
Miscellaneous
Included Accessories
1 GB SD card
Compliant Standards
CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN55022 Class A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-52, IEC 60068-2-60, EN 50121-4, NOM-019-SCFI-1998, VCCI Class A, KN22, China RoHS, EN 50121-3-2, EN 61326, IEC 61163, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC/UL/CSA/EN 60950-1, IEC 60068-2-3, EN 61373, ISO 9223
Software / System Requirements
Software Included
Cisco IOS LAN Base
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - advance parts replacement - 5 years - response time: 10 days
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
