General
Device Type

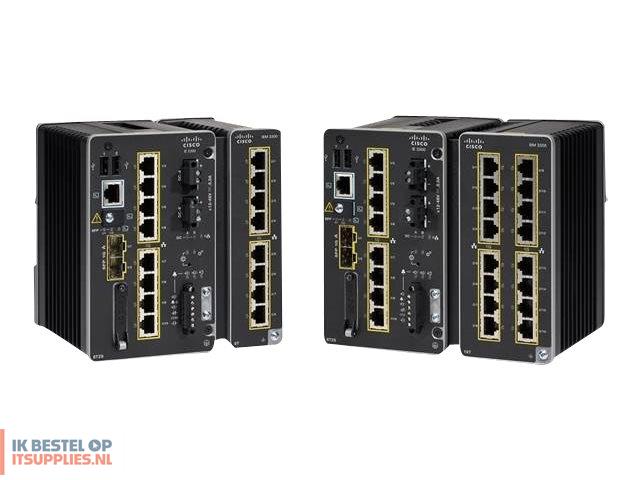

Switch - 10 ports - Managed
Enclosure Type
DIN rail mountable
Ports
8 x 10/100/1000 (PoE++) + 2 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE++
Capacity
Queues: 8
IGMP multicast groups: 1000
VLANs supported: 256
Indirect IPv4 routes: 2000
Indirect IPv6 routes: 512
STP instances: 128
Access Control Lists (PACL/VACL/RACL): 1500
MAC Address Table Size
8000 entries
Jumbo Frame Support
8996 bytes
Routing Protocol
IGMP, STP, MSTP, IGMPv2, IGMPv3, static IP routing, OSPF, BGP for IPv6, BGP-4, EIGRP, EIGRP for IPv6, HSRP, IS-ISv4, IS-ISv6, policy-based routing (PBR), RIP-1, RIP-2, VRRP, VRRP6, PIM-DM, PIM-SM, MSDP
Remote Management Protocol
NTP, DHCP, NETCONF, RESTCONF, SCP, SSH, SNMP 3, TACACS+, RADIUS, HTTP, HTTPS, IPv4, IPv6, TFTP, YANG, ICMP, Telnet, SNMP 1, SNMP 2, RMON
Authentication Method
Secure Shell (SSH), TACACS+, RADIUS
Features
FNF, fanless, ACL support, UDLD, CDP, LLDP support, PAgP support, LACP support, VTP v.2, VTP v.3, EtherChannel support, Q-in-Q tunnelling, Voice VLAN, RPVST+, RSTP support, IGMP filtering, IGMP querier, IGMP snooping, MIB, SmartPort technology, Syslog support, DHCP server, SPAN, RSPAN, Port Security, 802.1x authentication, DAI, Guest VLAN, IP source guard, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, BPDU Guard, MACsec support, QoS, NDP, DNS support, FHS, RA guard, static routing, PTP, PROFINET, REP, MRP, VRF-Lite, PIM, UDP, ARP support, BOOTP support, DiffServ support, DHCP relay, modular design
Compliant Standards
IEEE 802.3, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Built-in Devices
SD card reader
Expansion / Connectivity
Interfaces
8 x 10/100/1000 Base-T RJ-45 PoE++
2 x 1/10GBase-X SFP+
1 x console (mini-USB) Type B
2 x alarm input
1 x alarm output
1 x serial (RS-232) RJ-45
Power
Miscellaneous
Compliant Standards
IEEE 1588v2, IEC 62443-4-1, IEC 62443-4-2, FCC CFR47 Part 15 B Class A, VCCI Class A, AS/NZS CISPR 32 Class A, CISPR 11 class A, ICES-003 Class A, CNS 13438 Class A, KN32 Class A, EN 300 386, CISPR 24, EN55024, KN35, EN 61000-4-10, EN 61000-4-16, EN 61000-4-17, EN 61000-4-18, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61326-1, IEEE 1613, IEC 61850-3, EN 61850-3, EN 50121-4, NEMA TS-2-2016, IP30, UL/CSA60950-1, CB 60950-1, IEC 60950-1, UL 62368-1, CSA 62368-1, CB 62368-1, IEC 62368-1, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL 121201, CSA 213, UL/CSA 60079-0, UL/CSA 60079-15, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 60079-15, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-27, MIL-STD 810F 514.4, IEC 60068-2-6, IEC 60068-2-52, IEC 60068-2-60
Software / System Requirements
Software Included
Cisco Network Advantage
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
60 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
