General
Device Type

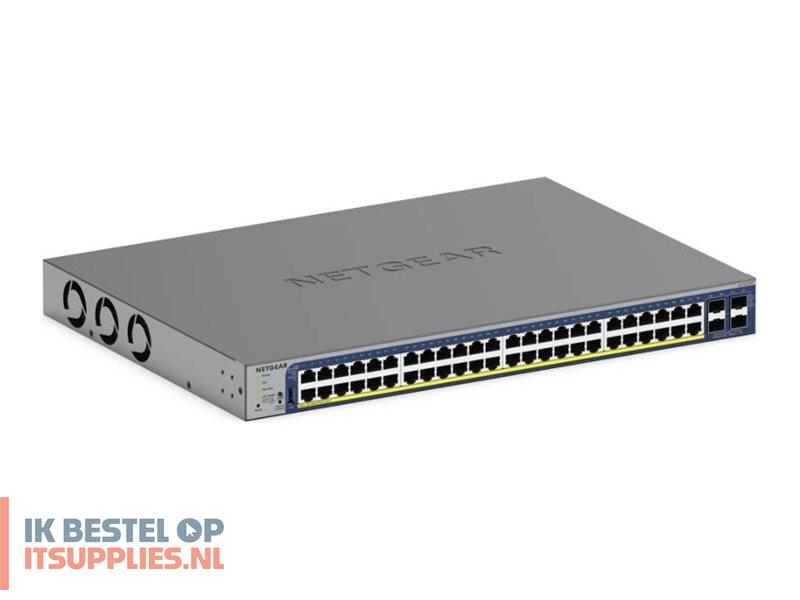

Switch - 48 ports - L3 Lite - smart
Enclosure Type
Desktop, rack-mountable
Ports
48 x 10/100/1000 (PoE+) + 4 x SFP+
Power Over Ethernet (PoE)
PoE+
Performance
Latency (1000 Mbps): 3.35 µs
Latency (1000 Mbps Fiber): 2.5 µs
Latency (10 Gbps Fiber): 2.124 µs
Bandwidth: 176 Gbps
Forwarding rate (64-byte packets): 130.94 Mpps
Capacity
Virtual interfaces (VLANs): 256
ACLs per system: 100
ARP entries: 512
IPv4 routes (static): 32
Packet buffer size: 1.5 MB
IPv6 routes (static): 32
IGMP multicast groups: 512
MAC Address Table Size
16K entries
Routing Protocol
IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Remote Management Protocol
IPv4, IPv6, RADIUS, DHCP, SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, TCP/IP, UDP, HTTPS, TFTP, HTTP, Syslog
Encryption Algorithm
TLS 1.2, TLS 1.3
Authentication Method
RADIUS, TACACS+
Features
3 fans, ACL support, QoS, IGMP snooping, MLD snooping, auto video VLAN, Auto VoIP, EEE, GVRP, MAC based VLAN, Private VLAN, Protocol-based VLANs support, Voice VLAN, LLDP-MED, 802.1x authentication, VoIP support, VLAN support, CLI management, ACL MAC based, DSCP support, dual firmware images, cloud backup, store and forward, WRR, VLAN Tagging, IP subnet-based VLANs support, GVRP, GARP, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DHCP relay, DHCP client, DHCP snooping, ICMP Router Discovery Protocol (IRDP), Link Aggregation, Guest VLAN, MAC lockdown, DAI, DoS protection, cable test
Compliant Standards
IEEE 802.3at, IEEE 802.3az, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1x, IEEE 802.3af
Processor
1 x ARM: 800 MHz
Status Indicators
Link/activity, port transmission speed, power, fan, PoE max
Expansion / Connectivity
Interfaces
48 x 10/100/1000 Base-T RJ-45 PoE+
4 x 100 / 1000Base-X SFP+
Management
Power
Power Device
Internal power supply
Miscellaneous
Included Accessories
Power cord, port protective caps, rubber feet set
Rack Mounting Kit
Included
Compliant Standards
FCC Class A certified, RCM, ICES Class A, VCCI, KC, BSMI, UKCA, CB, CSA
Localisation
European Union, United Kingdom
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime - response time: next business day
Technical support - phone consulting - 90 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 90% RH (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
0 - 95% (non-condensing)
