General
Device Type

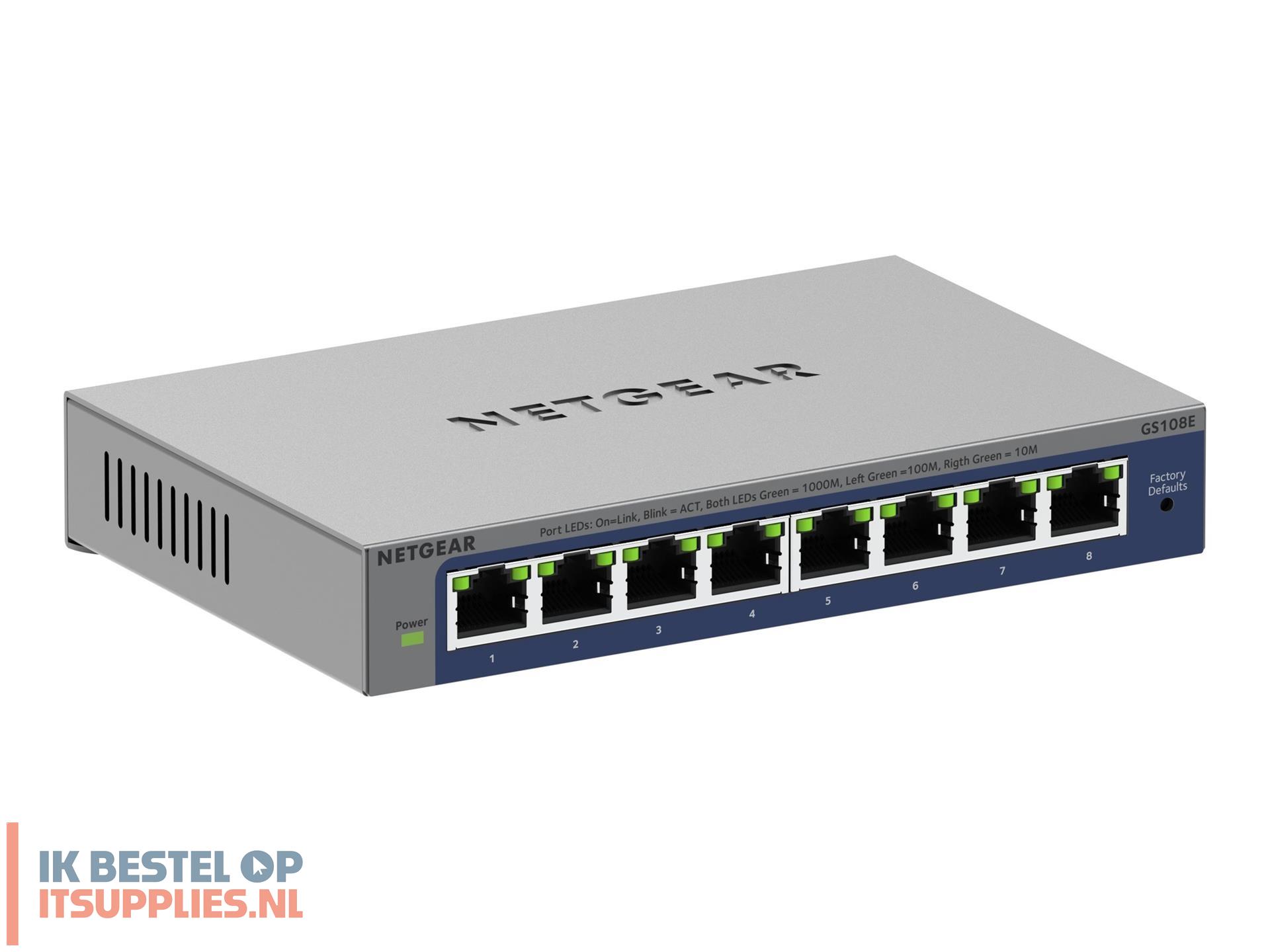

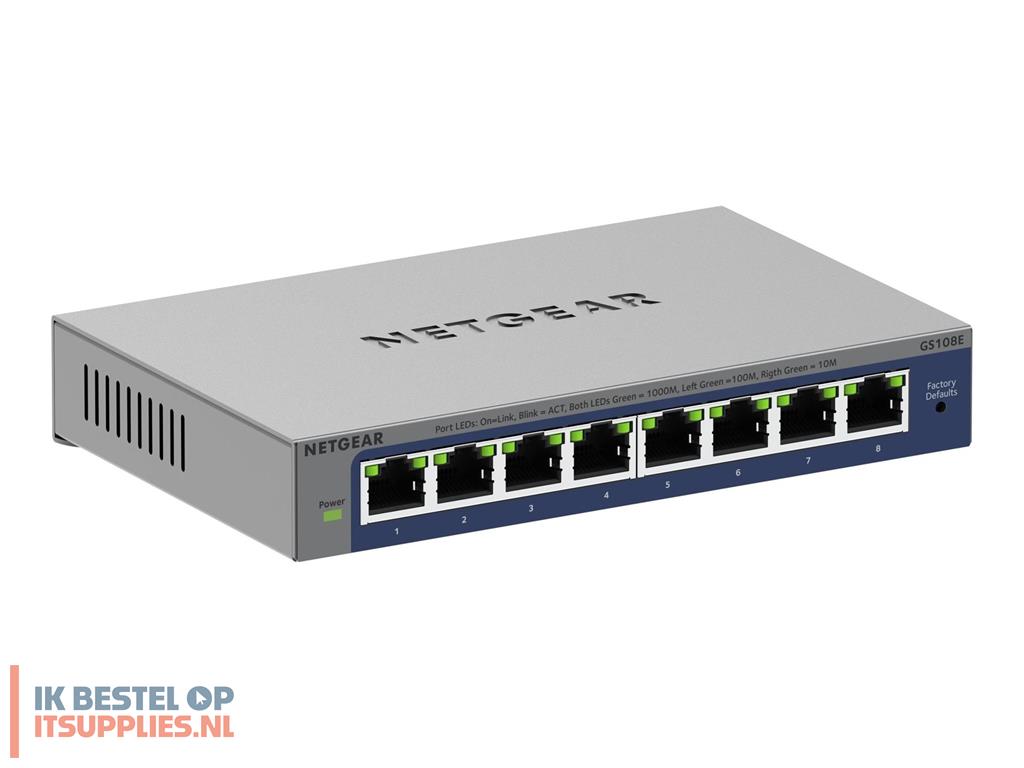

Switch - 8 ports - unmanaged
Enclosure Type
Desktop, rack-mountable, wall-mountable
Performance
Buffer memory: 192 KB ¦ Bandwidth: 16 Gbps
Capacity
VLAN entries: 64 ¦ LAG groups: 2 ¦ Maximum members in a standard LAG: 4 ¦ Multicast groups: 128 ¦ Simultaneous sources: 7
MAC Address Table Size
4K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
DHCP
Features
VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, firmware upgradable, QoS, Jumbo Frames support, fanless, SPQ, cable test, rate limit, WRR, block unknown multicast, traffic monitoring, password protection, Auto Negotiation, ToS, DoS protection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Status Indicators
Power, system, speed/activity, activity
Expansion / Connectivity
Interfaces
8 x 1000Base-T RJ-45
Power
Power Device
External power adapter
Power Consumption Operational
3.7 Watt
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
Plug and Play, VCCI, BSMI, ICES-003 Class B, FCC Part 15 B, KC, RCM, EN 55032/24
Dimensions & Weight
Manufacturer Warranty
Service & Support
Technical support - 90 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
90% RH (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
95% RH (non-condensing)
