General
Device Type

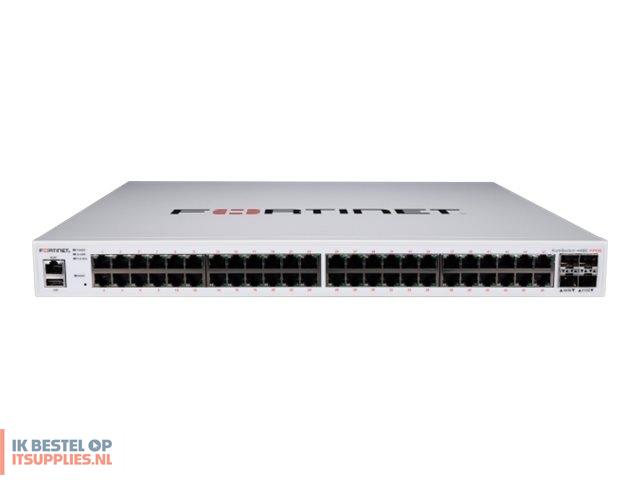

Switch - 48 ports - L3 - Managed
Enclosure Type
Rack-mountable 1U
Ports
48 x 10/100/1000 + 4 x 10 Gigabit SFP+
Performance
Switching capacity: 176 Gbps
Packets per second: 262 Mpps
Latency: 1 µs
Capacity
Virtual interfaces (VLANs): 4000
Packet buffer size: 2 MB
Link aggregation groups: 8
MAC Address Table Size
32K entries
Routing Protocol
RIP-2, BGP, VRRP, OSPFv2, ECMP
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, IPv4, IPv6
Authentication Method
RADIUS
Features
Flow control, port mirroring, SNTP support, STP support, RSTP support, MSTP support, QoS, Jumbo Frames support, LLDP support, LACP, MIB, tagged VLAN, DSCP support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Status Indicators
Power, link/activity
Expansion / Connectivity
Interfaces
48 x 1000Base-T RJ-45
4 x 10Gbit LAN SFP+
1 x 1000Base-T RJ-45 management
1 x console RJ-45
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
47.81 Watt
Miscellaneous
Compliant Standards
UL, VCCI, BSMI, CB, FCC, RoHS2, RCM
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
