General
Device Type

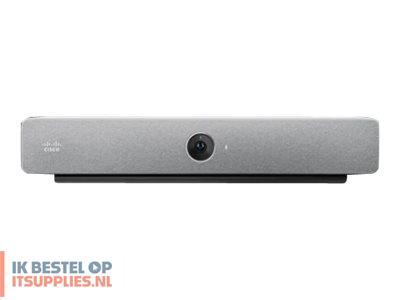

Video conferencing device
VoIP Protocols
SIP, H.323, H.245, SRTP
Voice Codecs
G.711, G.722, G.722.1, G.729, AAC-LD, Opus
Video Codecs
H.263, H.264, H.239, H.264 AVC
Quality of Service
IEEE 802.1Q (VLAN), IEEE 802.1p
IP Address Assignment
DHCP
Security
H.323, H.235 v3, TLS, IEEE 802.1X, AES, 256 bit AES, 128 bit AES, SRTP, Secure Shell (SSH)
Network Protocols
SIP, DNS, NTP, HTTP, HTTPS, DHCP, IPv4, IPv6, TLS, Cisco Discovery Protocol (CDP), SRTP, SSH
Enclosure Colour
First light
Modem
Digital Signaling Protocol
BFCP, SIP, H.323, H.239, H.245, H.460.18, H.460.19
Data Compression Protocol
H.263, H.264, G.711, G.722, G.722.1, G.729, H.239
Video Input
Type
Digital video camera (colour) - integrated
Interface Type
DisplayPort input, HDMI input, HDMI output
Digital Video Capture Resolution
3840 x 2160, 1920 x 1080
Video Modes
1080/60p, 4K/30p
Features
12 megapixels, 30 fps, 1/2.3 CMOS image sensor type, F 2.5 lens aperture, 120° field of view (horizontal), 95° field of view (vertical), face detection, speaker tracking, automatic brightness adjustment, auto white balance, fixed focus, AI-powered, noise reduction, 4K wireless content sharing, Miracast connectivity, Acoustic Echo Cancellation (AEC)
Audio Input
Type
4-microphone array - integrated
Microphone Operation Mode
Beamforming
Audio Output
Frequency Response
100 - 20000 Hz
Networking
Connectivity Technology
Wireless, wired
Data Link Protocol
Bluetooth, Fast Ethernet, Gigabit Ethernet, Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Network / Transport Protocol
DNS, NTP, DHCP, IPv4, IPv6, HTTP, HTTPs
Features
WebRTC, Quality of Service (QoS), DTMF support, DiffServ support, Certificate Authority Proxy Function (CAPF), 2x2 MIMO technology, Class of Service (CoS), VoIP support, URI Dialing, automatic gain control (AGC)
Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
Expansion / Connectivity
Interfaces
1 x USB-C / DisplayPort - 24 pin USB-C
1 x audio / video - HDMI input - 19 pin HDMI Type A
2 x audio / video - HDMI output - 19 pin HDMI Type A
1 x audio - line-in/microphone - mini-phone stereo 3.5 mm
1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45
1 x USB 2.0 - input - 9 pin USB Type A
1 x USB - 5 pin Micro-USB Type A
Miscellaneous
Software Certification
Cisco Webex Certified, Certified for Microsoft Teams Rooms
Compliant Standards
IEEE 802.1x, Directive 2014/53/EU, Directive 2014/30/EU, Directive 2014/35/EU, RoHS, Directive 2011/65/EU, Directive 2002/96/EU, WEEE, EMC, NRTL, FCC CFR47 Part 15 B Class A, FCC CFR47 Part 15 C, FCC CFR47 Part 15 E, FCC, AES-128, AES-256, CEC 2.0
Power
Power Device
Power supply - external
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
20 Watt
Software / System Requirements
Software Included
RoomOS 11 or later
Manufacturer Warranty
Service & Support
Limited warranty - 90 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 90% RH
