General
Device Type

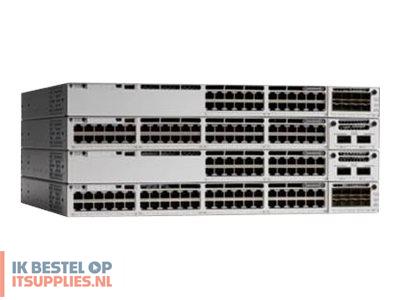

Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
25 Gigabit Ethernet
Ports
24 x 1/10/25 Gigabit SFP28
Performance
Switching capacity: 2000 Gbps
Switching capacity with stacking: 3000 Gbps
Forwarding rate: 1488 Mpps
Forwarding rate with stacking: 2232 Mpps
Stacking bandwidth: 1 Tbps
Capacity
IPv4 routing table entries: 39000
IPv6 routing table entries: 19500
Flexible NetFlow entries: 128000
VLAN IDs: 4094
Switched virtual interfaces (SVIs): 1000
Packet buffer size: 32 MB
MAC addresses: 32000
Multicast routing flow table: 8000
QoS scale entries: 4000
ACL scale entries: 5000
PVST instances: 1000
STP Virtual Ports for PVST: 13000
STP Virtual Ports for MST: 1000
Jumbo frame size: 9198 byte
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm
128-bit AES
Features
DHCP support, trunking, Syslog support, full duplex mode, SSO, CBWFQ, WRED, STP support, ACL support, QoS, NSR, RSPAN, MIB, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, MSDP, 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, CoPP, VXLAN, AVC, SSM, integrated Wireshark, VLAN Double Tagging (Q-in-Q), EoMPLS, H-VPLS, Private VLAN, L3VPN support, ERSPAN, SGT caching, SGACL, ITSM integration, third-party IPAM integration, Cisco StackWise-1T technology
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Expansion / Connectivity
Interfaces
24 x 1/10/25GBase-X SFP28
1 x USB 2.0
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Power
Power Device
Internal power supply - hot-plug
Voltage Required
AC 120/230 V (50 - 60 Hz)
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
Software / System Requirements
OS Required
Cisco IOS Universal
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
